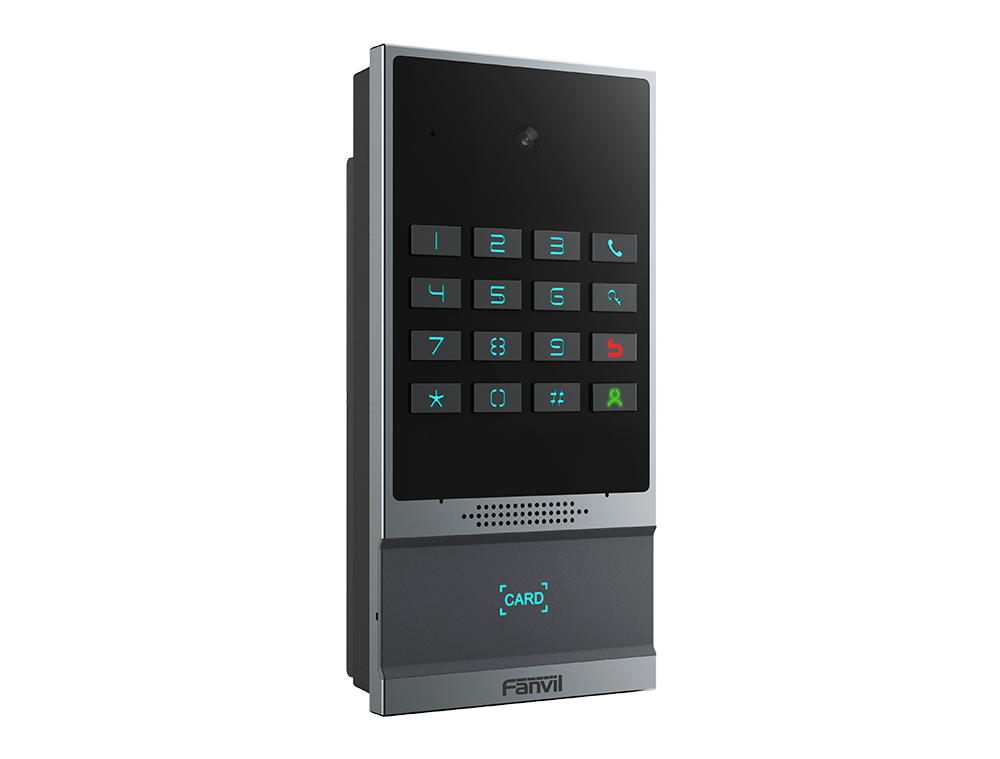

Fanvil I64 SIP Video Door Phone

The Fanvil i64 SIP Video Door Phone is a smart door access unit equipped with powerful functionalities for optimized building security. This product perfect for placement in apartments, commercial building, communities, and industrial parks.

This door phone simplifies entry to your building with convenient control through use of RFID card/fob, indoor switch, remote DTMF and timed open door. It has a numeric keypad and 4 function keys for swift actions such as selecting management center, password mode, dial or backspace.

Further, it can be connected to 3rd party devices to achieve an integrated control system for unified management. The Fanvil i64 door phone is fitted with a built-in 2M pixel wide-angle camera for clear video communication and infrared night-vision for perfect usage in the dark. It is suitable to deploy in outdoor environments with high protection, featuring an IP66 rating and IK07 rating.

Fanvil I64 Specifications

Generic

•  2 SIP lines
• Video intercom
•  IP address announcement in English
•  Programmable DSS key
•  RS485 port: Support
•  Wiegand port: Support
•  Switch signal input and output
•  Door control in and out
•  Line-out for induction loop antenna: Support
•  Support TF card
•  PoE enabled
•  Open the door operation: password, DTMF, RFID card, indoor switch, Time open door
• RFID cards (support 10,000)

Device Functions

•  Auto-answering
•  Programmable DSS keys
• Through button or web page
•  Network time synchronization
• Time Plan (task management)
•  Dynamic multicast function
• SIP call multicast function
• HTTP API
•  Action URL / Active URI

Call Functions

•  Call out / answer / reject
•  Call waiting
•  Intercom, Multicast
•  Speed dial
•  Anonymous call (Hide caller ID)

Audio

•  Narrowband codec: G.711A/U, G.729A/B,iLBC,G.723.1,G.726-32K
• Wideband codec: G.722, Opus
• Full-duplex hands-free speakerphone with AEC
•  DTMF: In-band, Out-of-Band (RFC2833/ SIP INFO)

Video

•  Sensor: 1/2.9” color CMOS
•  Pixels: 2 Mega
• Video coding: H.264
•  Motion detection
• Resolution:
• Main stream 1080P@30fps
• Sub stream VGA@30fps
• High intensity IR LEDs for picture lighting during dark hours with internal light sensor
• Viewing angle:
• Diagonal: 141°
• Horizontal: 120°
• Vertical: 60°

Physical Specifications

•  Keypad: 16 keys, including
•  12 number keys
• 4 function keys (Management Center /PasswordMode/Dial/Backspace)
•  RJ45 port x1: connect the network
•  PoE enabled
•  Short-in detect port x 3
•  Port: Terminal socket
•  Short-out control port x2 (built-in relay)
•  Relay: MAX DC30V / 2A, AC125V / 0.5A
•  Port: Terminal socket
•  Tamper switch x1
•  TF card slot x1: connect TF card, up to 128GB
•  RF Card Reader:125KHz&13.56MHz
• RS485:Support
•  Wiegand Port: In/Out configurable, Wiegand in by default
•  Line-out: support, for induction loop antenna
• DC port x1: DC power input
•  DC power input: DC12V/1A
•  Port: Terminal socket
•  PoE level: 802.3af Class 3
•  Protection level:IP66 and IK07
•  Housing material: Aluminum
•  Installation: Wall-mounted &Flush-mounted
•  Working temperature: -20℃~ 50℃
• Storage temperature: – 40℃~ 70℃
• Working humidity: 10~95%
•  Device dimensions: 177.4x88x36.15 mm
• Gift box dimensions: 220x123x65 mm
•  Outer CTN dimensions: 463x350x266 mm(20 PCS)
