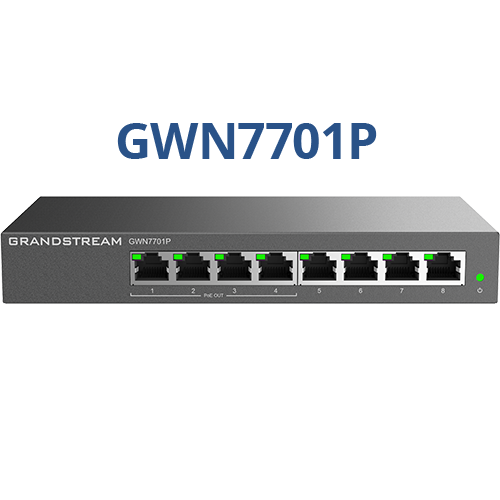

Grandstream GWN7701P Gigabit PoE Unmanaged Switch

Original price was: KSh 15,000.00.Current price is: KSh 14,500.00. excl. VAT

8 Gigabit ports
Green tech saves power
Auto MDI/MDIX crossover for all ports

Visit our store and enjoy:

Genuine, brand new, sealed stock
Price-match against authorized dealers
Installation & configuration services available
Expert advice on compatibility with your network

SKU: HB41948 Categories: Grandstream Store Kenya, Grandstream Switches Brand: Grandstream

Description
Reviews (0)

Grandstream GWN7701P Gigabit PoE Unmanaged Switch

The Grandstream GWN7701P is a plug-and-play unmanaged PoE switch designed for deploying small to mid-size networks with minimal configuration. While it offers the performance and flexibility of Gigabit Ethernet, it distinguishes itself by providing PoE+ capabilities on select ports, enabling direct power delivery to IP devices like access points, cameras, and VoIP phones without the need for separate power injectors.

The robust “green” design reduces power consumption during idle times, and the sturdy enclosure supports desktop or wall mounting, making it well suited for both office and on-site network installations.

Grandstream GWN7701PA Technical Specification

	GWN7701	GWN7701P	GWN7701PA
Gigabit Ports	8	8	8
PoE Ports	N/A	4	8
Enclosure	Plastic	Metal	Metal
Mounting	Desktop/ Wall-Mount	Desktop/ Wall-Mount	Desktop/Rack-Mount
Network Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
PoE Standards	/	IEEE 802.3af, IEEE 802.3at	IEEE 802.3af, IEEE 802.3at
Port Feature	8× 10/100/1000Mbps RJ45 Ports AUTO NegotiationAUTO MDI/MDIX
Network Media	1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex
PoE Configuration	/	• 1~4 Ports 802.3 af/at compliant• Up to 30 W on Each Port, Total 60W Power Budget;• Overload to cut off the lowest- priority port. • Priority: Port 4 to Port 1	• 1~8 Ports 802.3 af/at compliant• Up to 30 W on Each Port, Total 145W Power Budget;• Overload to cut off the lowest- priority port. • Priority: Port 8 to Port 1
LED Indicators	Per port: Link/Activity Green Per device: Power Green		Per port: Link/Activity – Green Per port: PoE output – Yellow Per device: Power Green
Mac Address Table	8K
Switching Capacity	16Gbps
Jumbo Frame	9KB
Advanced Features	Mac Address Auto-Learning And Auto-Aging IEEE 802.3x Flow Control802.1 p/DSCP QoSUnlink clear FDB Feature IGMP: • IGMP Fast-Leave • IGMP Snoop • Route Port Autolearn • Query Refresh Member Port
Power Adapter	External 5VDC/0.6A	External 48-53.5VDC/1.22A	Internal 100-240V AC AC, 50/60Hz,150W
Max Power Consumptionby Base System	2.7W	3W(excluding PoE output power)	6.7W @220V/50Hz(excluding PoE output power)
Environmental	Operating Temperature: 0 to 40 °C (32 to 104 °F)Storage Temperature: -20 to 60 °C (-4 to 140 °F)Operating Humidity: 10% to 90% Non-condensing Storage Humidity: 10% to 90% Non-condensing
Dimensions (L x W x H)	Unit: 164 x 80 x 30mmPackage: 202 x 166 x 54mm	Unit:190 x 100 x 28mm Package: 230 x 210 x 51mm	Unit: 280 x 180 x 44mmPackage: 366 x 211 x 53mm
Weight	Unit: 0.17KGEntire Package: 0.38KG	Unit: 0.44KGEntire Package: 0.92KG	Unit: 1.5KG Entire Package: 2.1KG
Package	1x Switch,1x Power Adapter, 1x QIG	1x Switch,1x Power Adapter, 1x QIG	1x Switch,1x 1.2m AC Cable, Rack-mounting Standard Brackets, 4x Rubber Feet,1x QIG
Compliance	FCC, CE, RCM, IC, UKCA
