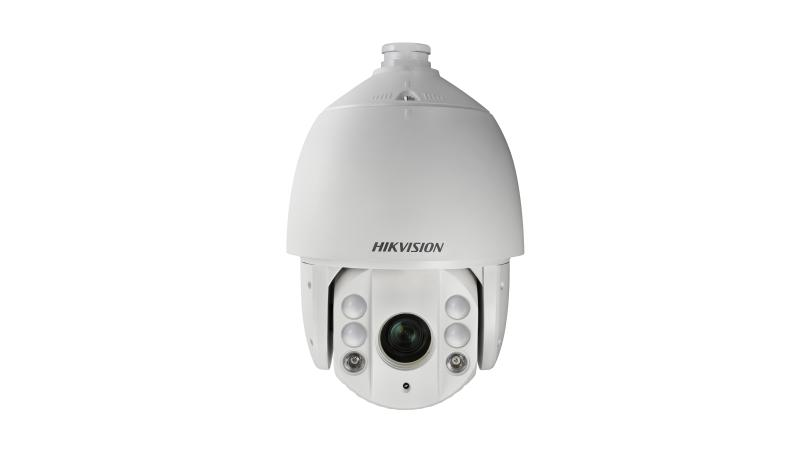

Hikvision Value Series DS-2DE7430IW-AE 4MP Outdoor PTZ Network Dome Camera with Night Vision description
-
Lens
- FOV48.8° to 2.3° (Wide-Tele)
- Zoom SpeedApprox. 4.8 s (Optical Lens, Wide-Tele)
- Working Distance10 mm to 1500 mm (Wide-Tele)
- Aperture RangeF1.5 to F3.4
- Focal Length5.9 mm to 177 mm, 30Ă— Optical Zoom
-
- Sub-Stream50Hz: 25fps (704 Ă— 576, 640 Ă— 480, 352 Ă— 288),60Hz: 30fps (704 Ă— 480, 640 Ă— 480, 352 Ă— 240)
- Max. Resolution2560 Ă— 1440
- Main Stream50Hz: 25fps (2560 Ă— 1440, 2048 Ă— 1536, 1920 Ă— 1080, 1280 Ă— 960, 1280 Ă— 720), 50fps (1920 Ă— 1080, 1280 Ă— 960, 1280 Ă— 720),60Hz: 30fps (2560 Ă— 1440, 2048 Ă— 1536, 1920 Ă— 1080, 1280 Ă— 960, 1280 Ă— 720), 60fps (1920 Ă— 1080, 1280 Ă— 960, 1280 Ă— 720)
- Third Stream50Hz: 25fps (1920 Ă— 1080, 1280 Ă— 960, 1280 Ă— 720, 704 Ă— 576, 640 Ă— 480, 352 Ă— 288),60Hz: 30fps (1920 Ă— 1080, 1280 Ă— 960, 1280 Ă— 720, 704 Ă— 480, 640 Ă— 480, 352 Ă— 240)
-
Network
- ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
- APIOpen-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform
- Simultaneous Live ViewUp to 20 channels
- User/HostUp to 32 users, 3 levels: Administrator, Operator and User
- ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
- Web BrowserIE 8+, Chrome 31+, Firefox 30+, Safari 8.0+ web browser
- Security MeasuresUser Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering
- Alarm LinkagePreset, Patrol Scan, Pattern Scan, Memory Card Video Recording, Trigger Recording, E-Map, VCA Capture, Upload to FTP, Send Email, etc.
-
Interface
- Alarm Output1-ch alarm output
- Alarm Input2-ch alarm input
- Audio Input1-ch audio input
- Audio Output1-ch audio output
- Network Interface1 RJ45 10 M/100 M Ethernet Interface, Hi-PoE
- StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 128 GB, NAS (NPS, SMB/ CIPS), ANR
-
Compression Standard
- Video CompressionMain Stream: H.265+/H.265/H.264+/H.264,Sub-Stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG,H.264 with Baseline/Main/High Profile
- Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
- SVCSupport
-
Camera Module
- 3D DNRSupport
- AGCAuto/Manual
- Regional ExposureSupport
- Regional FocusSupport
- Image Sensor1/1.9″ progressive scan CMOS
- Min. IlluminationColor: 0.005 Lux @(F1.5, AGC ON),B/W: 0.002 Lux @(F1.5, AGC ON),0 Lux with IR
- White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
- Shutter Time50Hz: 1/1 s to 1/30,000 s,60Hz: 1/1 s to 1/30,000 s
- Day & NightIR cut filter
- Digital Zoom16Ă—
- Privacy Mask8 programmable privacy masks
- Focus ModeAuto/Semi-automatic/Manual
- BLCSupport
- HLCSupport
- Optical DefogSupport
- Digital DefogSupport
- EISSupport
- Digital WDRSupport
-
Supplement Light
- IR Distance150 m
- Smart IRSupport
- IR ControlIR brightness and angle are intelligently adjustable according to the scenes.
-
PTZ
- Movement Range (Pan)360° endless
- Pan SpeedConfigurable, from 0.1°/s to 160°/s, Preset Speed: 240°/s
- Movement Range (Tilt)From -15° to 90° (Auto Flip)
- Tilt SpeedConfigurable, from 0.1°/s to 120°/s, Preset Speed: 200°/s
- Proportional ZoomSupport
- Presets300
- Patrol Scan8 patrols, up to 32 presets for each patrol
- Pattern Scan4 pattern scans, record time over 10 minutes for each scan
- Power-Off MemorySupport
- Park ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
- PTZ Status DisplaySupport
- Preset FreezingSupport
- Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output
-
Smart Features
- Basic Event DetectionMotion Detection, Video Tampering, Alarm Input, Alarm Output, Exception
- Smart DetectionAudio Exception Detection, Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection
- Smart TrackingSupport
- Smart RecordANR (Automatic Network Replenishment), Dual-VCA
- ROIMain stream, sub-stream and third stream respectively support four fixed areas.
-
General
- Brand: Hikvision
- DimensionsΦ 220 mm Ă— 353.4 mm (Φ 8.66″ Ă— 13.91″)
- Approx. 4.5 kg (9.92 lb)
- Protection LevelIP66, IK10 (excluding glass window), 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
- Power24 VAC & Hi-PoE, Max.: 40 W,IR: 19 W
- Working TemperatureOutdoor: -30°C to 65°C (-22°F to 149°F)
- Working Humidity≤ 90%
