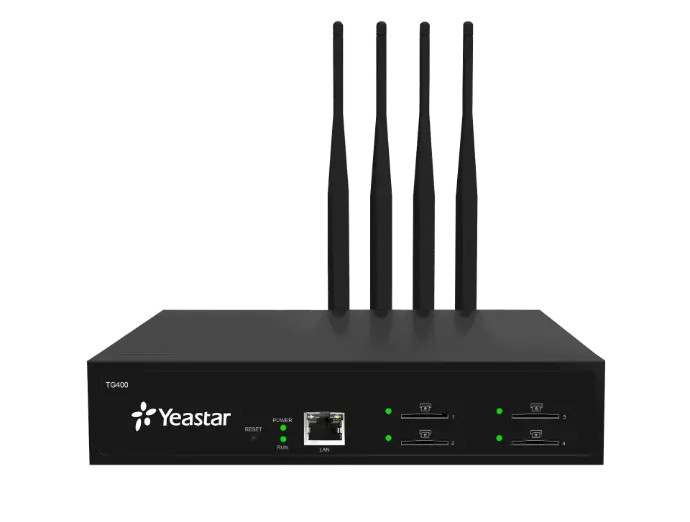

Yeastar TG400L 4 Ports 4-GLTE Gateway

The Yeastar TG400L connects 4G LTE to VoIP networks to provide 2-way communication: GSM/3G/4G to VoIP and VoIP to GSM/3G/4G. It allows you to connect most IP-based telephone systems including Yeastar IP Phone Systems, and soft switches to a 4G LTE; which can provide a sophisticated fallback solution when landlines go down, or be used to increase call traffic capacity by providing additional dial-tone.

Yeastar TG400L Key Features

• VoLTE for HD Calls
• Maximum Cost Reduction
• Top Quality and Reliability
• Mobile Connectivity for SMB
• Simple and intuitive Web-based configuration saves you loads of time
• Add GSM/WCDMA trunkings for business making high number of calls to mobile networks
• Great tool for enterprises to manage customer relations and introduce special offers with a low cost
• Interoperable with a broad list of softswitch, PBX, and IP-PBX like Elastix and Lync Server

Easy to use

Simple and intuitive Web-based configuration saves you loads of time

Mobile Trunkings

Add GSM/WCDMA trunkings for business making high number of calls to mobile networks

Bulk SMS Service

Great tool for enterprises to manage customer relations and introduce special offers with a low cost

Interoperability

Interoperable with a broad list of softswitch, PBX, and IP-PBX like Elastix and Lync Server

Yeastar TG400L Technical Specifications

General

• Ports: 4 LTE
• GSM Frequency: 850/900/1800/1900 MHz
• UMTS Frequency: 850/1900 MHz, 850/2100 MHz, 900/2100 MHz
• 4G LTE Band: Yes
• CDMA Frequency: 800 MHz
• Protocol: SIP, IAX2
• Transport: UDP, TCP, TLS, SRTP
• Voice Codec: G.711 (alaw/ulaw), G.722, G.726, G.729A, GSM, ADPCM, Speex
• Echo Cancellation: ITU-T G.168 LEC
• DTMF Mode: RFC2833, SIP INFO, In-band
• Calling Type: Termination (VoIP to GSM/CDMA/UMTS), Origination (GSM/CDMA/UMTS to VoIP)
• Network Protocol: FTP, TFTP, HTTP, HTTPS, SSH
• NAT Traversal: Static NAT, STUN
• Network: DHCP, DDNS, Firewall, OpenVPN, Static IP, QoS, Static Route, VLAN
• Power Supply: AC 100-240V
• Operation Range: 0°C to 40°C, 32°F to 104°F
• Storage Range: -20°C to 65°C, -4°F to 149°F
• Humidity: 10-90% non-condensing

System Features

• Mobile Ports Groups
• VoIP Trunk Group
• Incoming /Outgoing Routing rules
• Black List
• Hotline
• AutoCLIP
• Call Duration Limitation
• Call Transfer
• Call Back
• Call Detail Record (CDR
• Call Status Display
• NTP
• IP Denylist
• Network Attack Alert
• Packet Capture
• System Logs

Physical

• Size (mm): 213x160x44
• Power Supply: AC 100-240V
