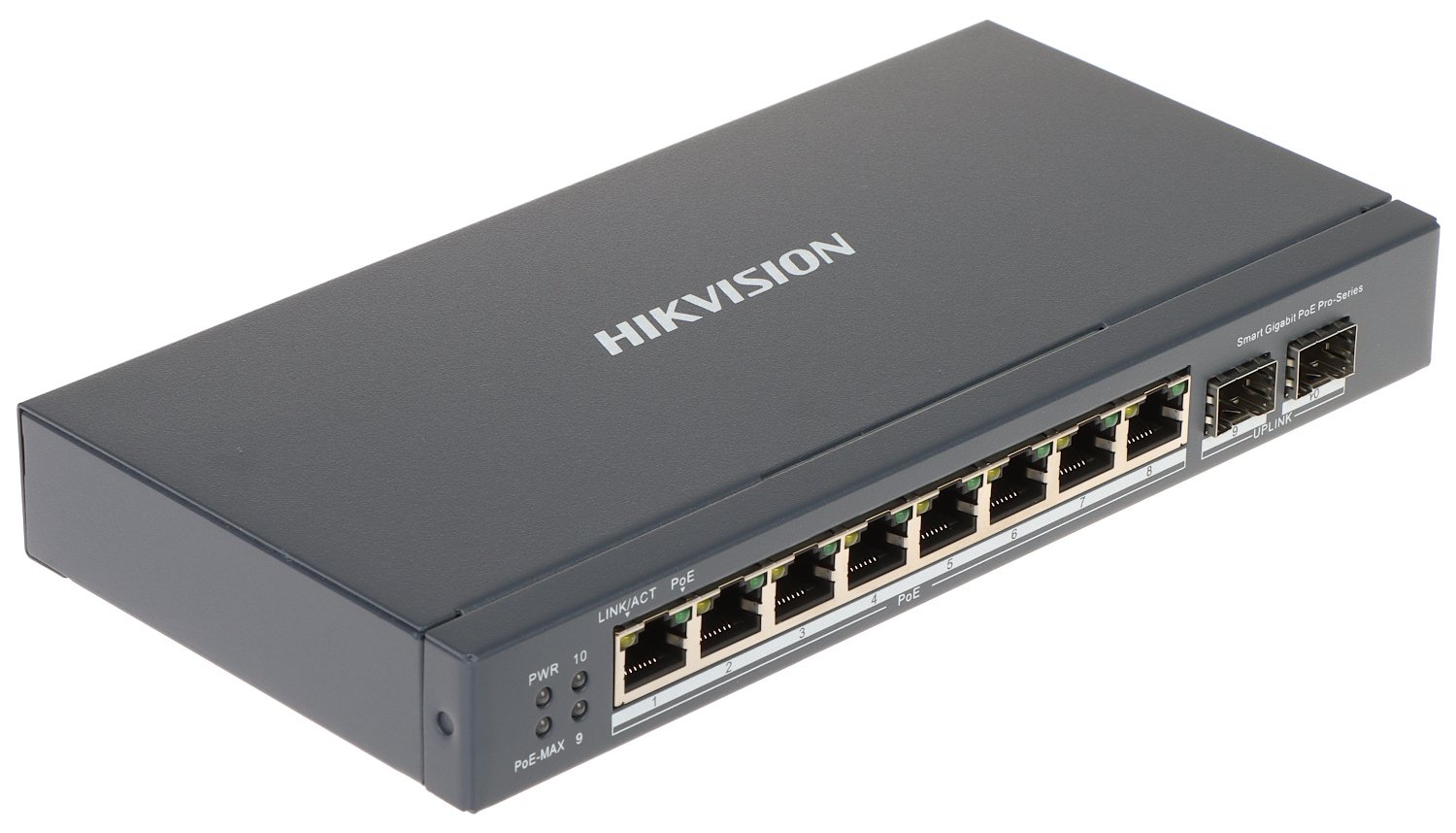

Hikvision DS-3E1510P-SI 8 Port Gigabit Smart POE Switch
Original price was: KSh 25,000.00.KSh 24,000.00Current price is: KSh 24,000.00. excl. VAT
- 8 × gigabit PoE ports, and 2 × gigabit fiber optical ports.
- IEEE 802.3at/af standard for PoE ports.
- Network topology management, alarm push, network health monitor.
- 6 KV surge protection for PoE ports.
- AF/AT camera can reach up to 300 m in extend mode.
- PoE watchdog to auto detect and restart the cameras that do not respond.
- Various layer 2 management protocols such as STP/RSTP, VLAN, link aggregation, SNMP, QoS and so on.
Hikvision DS-3E1510P-SI 8 Port Gigabit Smart POE Switch
The Hikvision DS-3E1510P-SI is an 8-port Gigabit Smart PoE+ switch optimized for small-to-medium surveillance deployments and network edge applications. Smart managed switches are developed by Hikvision, featuring easy management and maintenance.
You can easily deploy, monitor and expand your security system anytime and anywhere with our software platforms. You can view the network topology, monitor the health of the network and receive device alarms in real time, which greatly reduces the cost of network operation and maintenance.
Specification
| General | |
| Shell | Metal material |
| Net Weight | 1.21 kg (2.67 lb) |
| Gross Weight | 1.3 kg (2.87 lb) |
| Dimensions (W × H × D) | 217.60 mm × 27.80 mm × 108.55 mm (8.57” × 1.09” × 4.27”) |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | 48 V DC, 2.5 A |
| Installation Mode | Desk-Mounted, Wall-Mounted |
| Max. Power Consumption | 120 W |
| Power Consumption in Idle | 7 W |
| Surge Protection | 6 kV |
Network Parameters |
|
| Ports | 8 × Gigabit PoE port,2 × Gigabit fiber optical port |
| MAC Address Table | 8 K |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| Internal Cache | 4.1 Mbits |
PoE Power Supply |
|
| PoE Standard | IEEE 802.3af,IEEE 802.3at |
| PoE Power Pin | End-span: 1/2(+), 3/6(-); |
| PoE Port | PoE: Ports 1 to 8 |
| Max. Port Power | 30 W |
| PoE Power Budget | 110 W |
Software Function |
|
| Long Range | Ports 1 to 8: up to 300 m.Long range performance may vary depend on camera model or cable condition. |
| Port Isolation | Ports 1 to 8: port isolation mode to improve network security.Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group. |
| PoE Watchdog | Ports 1 to 8: auto detect and restart the cameras that do not respond. |
| Link Aggregation | Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.Support static link aggregation.
Support 8 aggregation groups. |
| Loop Prevention | Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.Support 802.1D STP. |
|
VLAN |
VLAN is used for network scale planning and network health improvement. Support 802.1Q.Configurable VLAN ID from 1-4094.
Support Trunk, Access port mode. Support Max. 4094 VLAN. |
QoS |
QoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance.Support port-based priority configuration.
Support SP, WRR priority schedule mode. |
|
HPP |
Support one-click activation and remote management via Hik-Partner Pro. Functions supported:1. Display the port rate.
2. Display the port bandwidth utilization rate. 3. Display the PoE power usage. 4. Display topology information. 5. Display the alarm status. 6. Restart ports and devices. 7. Enable port long-rage mode. 8. Remotely upgrade the device. |
| System Maintenance | Remote upgrade, default parameters recovery, logs viewing, basic networkparameters configuration, import and export configuration, time sync |
| Port Rate-Limiting | Port rate-limiting is used for port bandwidth adjustment to prevent networkcongestion. |
| Storm Control | Storm control is used to prevent switch ports from being blocked by broadcast or multicast storms in the LAN, which may affect network communication.Support port rate limiting based on broadcast, multicast, and unknown unicast
packets. |
Approval |
|
|
EMC |
FCC (47 CFR Part 15, Subpart B);CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN
50130-4: 2011 +A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (ASNZS CISPR 32: 2015) |
|
Safety |
UL (UL 60950-1);CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second
Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017) |
| Chemistry | CE-RoHS (201165EU); WEEE (201219EU);Reach (Regulation (EC) No.19072006) |
