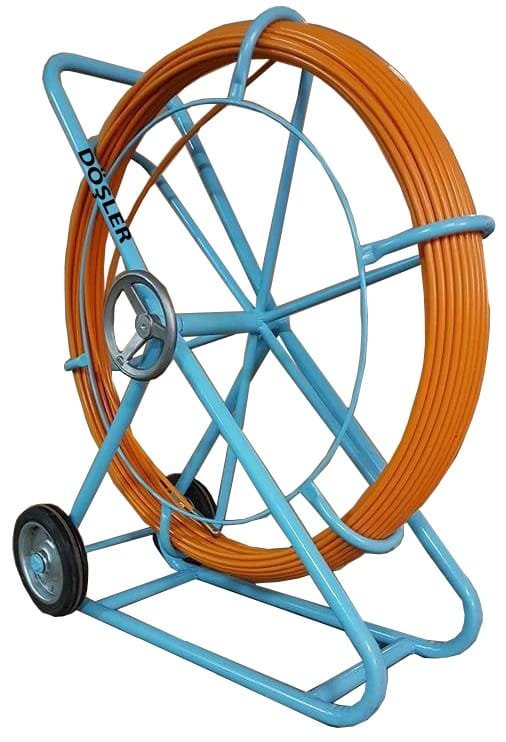

Fiberglass Cable Duct Rodder product overview
Fiberglass Cable Duct Rodder, sometimes called python rod by its nature passing through under ground ducts by up and down negotiating the duct curvature, thus very convenient to pull the cables, wires inside the duct. What’s more, it can be used to located the duct block or damage positions.
It has high safety aspects to be applied to underground applications because of its non conductivity of electricity, thus sets a major safety to site workers.
It has been built with rigid sturdy fiberglass tubular fabrication for easy usage at site and can be self coiled in the tubular frame and easily roll like trolley on ground by its wheels fitted at bottom.
Specifications
Material & Performance | |
Name | FRP Fiberglass Cable Snake Glass Fiber Reinforced Plastic Push Pull Duct Rodder |
Rod inside core | E-glassfiber(Content 75%-80%) |
Rod outside finishing | ABS coating with electrostatic spray painting |
Density | >1.9g/cm3 |
Working temperature | -40℃ to +80℃ |
Minimum pulling strength | 4000N±5% |
Tensile moujulus | >46.50Mpa |
Consistency of rod | 137g/m |
Flexural modulus | >46.50Mpa |
Elongation at break | 2.5-3% |
Minmum bending radius | 380mm |

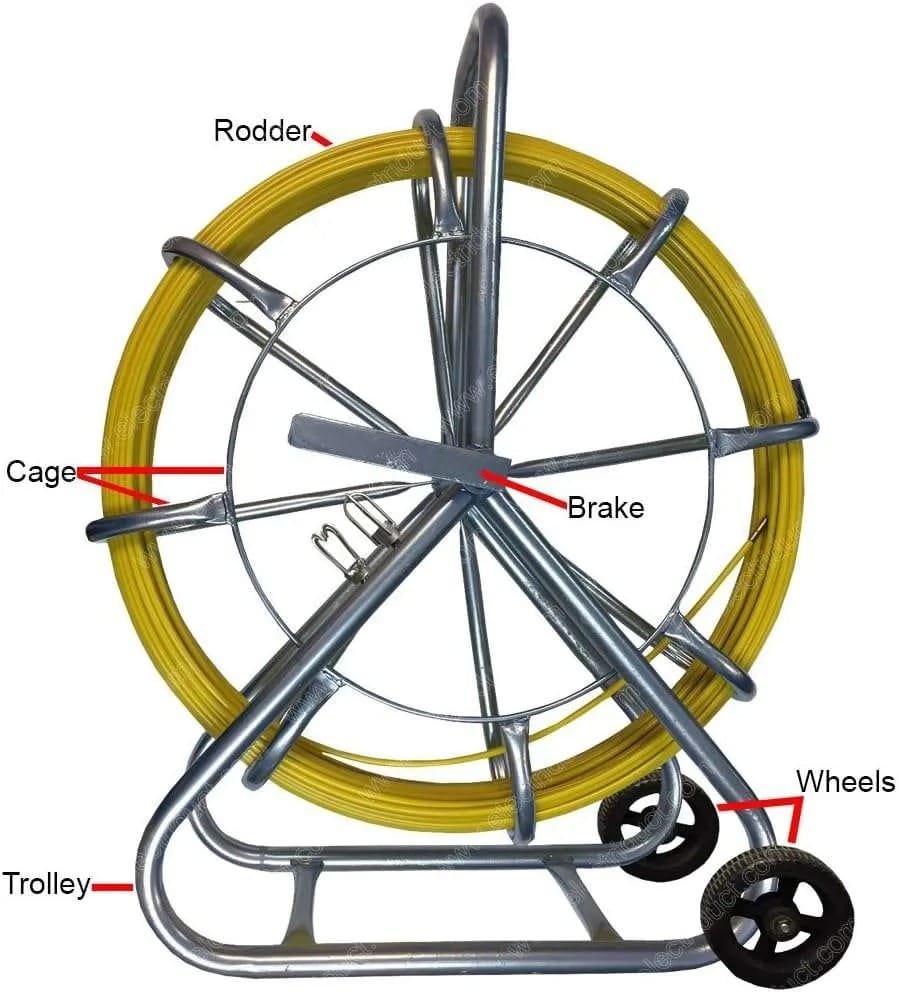

Fiberglass Duct Rodder Components
