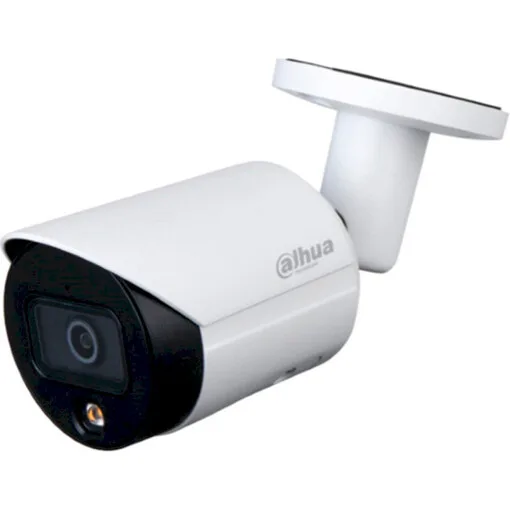

4 МР IP-CAMERA DAHUA DH-IPC-HFW2439SP-SA-LED-S2 (3.6 MM) SPECIFICATIONS AND DETAILS
Overview
IP Dahua camera DH-IPC-HFW2439SP-SA-LED-S2 has 4 megapixel; Record: Main Stream 4 МP – 1 – 25 fps, 3 МP – 1 – 25 fps, 1080р – 1 – 25 fps, 720р – 1 – 25 fps; Sub Stream D1 – 1 – 25 fps, VGA – 1 – 25 fps, CIF – 1 – 25 fps; IR illumination up to 30 m. .
Technical Specification
Viewing angle | 81° |
Special features | crossing the line, invading the area |
Weight | 365 g |
Operating voltage | 12V DC, PoE |
Temperature range | -40…+60°C |
Producing country | China |
Matrix resolution | 4 Mpx |
Focal length | 3.6 mm |
Light distance | 30 m |
Connection type | wired |
Moisture and dust protection | IP67 |
Network Interface | RJ -45 (10/100Base -T), IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x, Bonjour |
Body color | white |
Dimensions (WхHхD) | Ø 110х101 mm |
Device Type | IP-camera |
Installation location | outside |
Type of instalation | wall, ceiling, overhead |
Form factor | bullet |
Matrix type | 1/3” progressive CMOS |
Compatibility | with Dahua DVRs |
Body material | metal |
Consumption | 6.2 W |
Device class | middle |
Recording speed | Main Stream 4 МP – 1 – 25 fps, 3 МP – 1 – 25 fps, 1080р – 1 – 25 fps, 720р – 1 – 25 fps; Sub Stream D1 – 1 – 25 fps, VGA – 1 – 25 fps, CIF – 1 – 25 fps |
Video standard | IP |
Optical zoom | 1x |
Light sensitivity | 0.004 Lx / F1.0 (Color), 0 Lx with IR |
Day-night mode | yes, ICR filter |
Built-in microphone | no |
Built-in speaker | no |
Audio inputs | no |
Memory card slot | yes |
Type of memory cards | microSD up to 256 GB |
Wi-Fi support | no |
PoE support | yes |
Vandal protection | no |
PoE type | 802.3af |
Video compression | H.264, H.264+, H.265, MJPEG |
Built-in lightning protection | no |
Alarm Inputs-Outputs | no |
Alarm inputs | no |
Alarm outputs | no |
Modes | 3D DNR / BLC / HLC / WDR / ROI |
Streaming | 2 streams |
Intended for use | home, house, office, store, warehouse, production, garage |
Additional functions of camera | cloud storage, region of interest (ROI) |
Browsers | Chrome, Firefox, Safari, Edge, Opera |
OS support | Windows, MAC OS, IOS, Android |
Camera motion sensor | program |
Video output | 1xRJ45 |
Lens type | fixed |
Type of illumination | white light |
Powered by batteries / rechargeable batteries | no |
Digital zoom | 1x |
Integration with Ajax system | yes |
Audio outputs | no |
Network output | 1xRJ45 |
Mobile app | DMSS |
