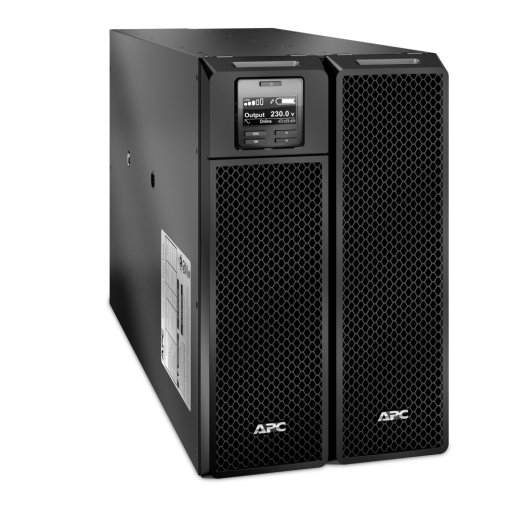

APC SRTG8KXLI Smart- UPS 8000W 8kVA UPS

The APC SRTG8KXLI Smart-UPS is a high-capacity, double-conversion online UPS designed to deliver premium power protection for critical IT equipment, data centers, and high-performance enterprise environments. With an impressive 8000W/8kVA output, it ensures continuous, clean, and stable power regardless of fluctuations, surges, or outages.

This UPS provides seamless power transfer, advanced monitoring, and expandable battery runtime, making it ideal for safeguarding servers, network hardware, medical equipment, and mission-critical systems. Built for reliability, efficiency, and long-term scalability, the SRTG8KXLI offers robust protection to keep your operations running without interruption.

Main Specification

Product Description	APC Smart-UPS SRT 8000VA – UPS – 8000 Watt – 8000 VA
Device Type	UPS – rack-mountable / external
Rack Size	6U
Weight	111.82 kg
Input Voltage	AC 230 V
Output Voltage	AC 230 V ± 3%
Power Capacity	8000 Watt / 8000 VA
Input Connectors	Hardwire 5-wire (3PH + N + G), hardwire 3-wire (1PH + N + G)
Output connectors	6 x power IEC 60320 C13 4 x power IEC 60320 C19 1 x hardwire 3-wire (HN + G) 3 x IEC connector
Battery	Lead Acid
Run Time (Up To)	5.3 min at full load
Networking	Ethernet 10/100, USB
Colour	Black
Dimensions (WxDxH)	26.3 cm x 71.5 cm x 43.2 cm
Manufacturer Warranty	3-year warranty

General

Device Type	UPS – rack-mountable / external
Height (Rack Units)	6U
Colour	Black

Power Device

UPS Technology	On-line
Input Voltage	AC 230 V
Frequency Provided	50/60 Hz
Frequency Required	45 – 65 Hz
Input Connectors	Hardwire 5-wire (3PH + N + G), hardwire 3-wire (1PH + N + G)
Power Output Connectors Details	6 x power IEC 60320 C13 4 x power IEC 60320 C19 1 x hardwire 3-wire (HN + G) 3 x IEC connector
Output Voltage	AC 230 V ± 3% – 50/60 Hz
Power Capacity	8000 Watt / 8000 VA
Output Waveform	Sinewave
Surge Suppression	Yes
Surge Energy Rating	480 Joules
Efficiency	98%

Battery

Technology	Lead Acid
Run Time (Up To)	5.3 min at full load 14.8 min at half load
Recharge Time	3 hours
Features	Maintenance free, sealed, leak-proof

Networking

Remote Management Interface	Ethernet 10/100, USB

Expansion / Connectivity

Interfaces	1 x management (Ethernet) – RJ-45 1 x management (USB) – 4 pin USB Type B 1 x EPO (emergency power off) 1 x serial – RJ-45
Expansion Slots	1 (total) / 1 (free) x SmartSlot

Miscellaneous

Features	Audible alarm, LCD display
Compliant Standards	C-Tick, VDE, IEC 60950, EN 50091-2, RoHS, EN 50091-1, REACH, EN 62040-2, IP20, EAC

Software / System Requirements

Software Included	APC PowerChute Business Edition

Manufacturer Warranty

Service & Support	Limited warranty – 3 years Limited warranty – batteries – 2 years

Environmental Parameters

Min Operating Temperature	0 °C
Max Operating Temperature	40 °C
Humidity Range Operating	0 – 95% (non-condensing)
Sound Emission	55 dBA

Dimensions & Weight

Width	26.3 cm
Depth	71.5 cm
Height	43.2 cm
Weight	111.82 kg

Dimensions & Weight (Shipping)

Shipping Width	60 cm
Shipping Depth	100 cm
Shipping Height	46.1 cm
Shipping Weight	126.82 kg
