Centurion D20 SMART sliding gate motor for heavy gates

Original price was: KSh 152,000.00.Current price is: KSh 150,000.00. excl. VAT

Strong enough to move a 2000kg gate on flat ground
Easy “drop-in” replacement for existing A10 / D10 sites
SMART technology makes the D20 SMART as intelligent as it’s solid routing and dedicated accessory tray
Installer – friendly design with easy access to mounting hardware, optimised cable routing and a dedicated accessory try
Smooth and Strong
Alert and agile – highly Hall Effect technology keeps track of the gate position at all times, and ensures pin-point stopping

Visit our store and enjoy:

Genuine, brand new, sealed stock
Price-match against authorized dealers
Installation & configuration services available
Expert advice on compatibility with your network

SKU: HB42911 Category: Centurion Automated Gate Motors Brand: Centurion

Description
Reviews (0)

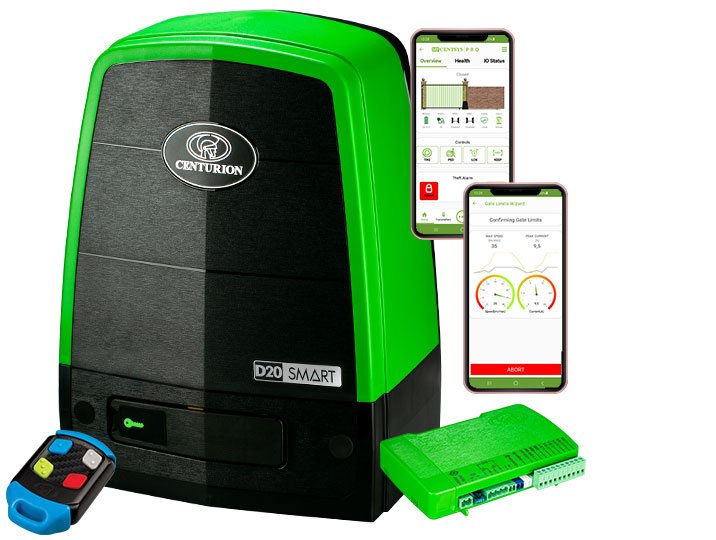

Centurion D20 SMART sliding gate motor for heavy gates

The Centurion D20 SMART is a high-performance sliding gate motor engineered for extreme durability, power and intelligent automation. Designed for heavy residential, commercial and industrial gates, this powerhouse offers exceptional pulling force, high duty cycle, and advanced SMART connectivity, making it ideal for large estates, industrial premises, complexes and high-traffic areas.

Technical Specification

Technical Data	D20-SMΔRT
Input voltage	90V – 240V AC +/-10% @ 50Hz1
Current consumption (Mains)	250mA
Battery charger current output	1.8A @ 27.4V +/-1%
Maximum number of operations per day	7502,5
Duty cycle – Mains present2,3	45%
Motor voltage	24V DC
Motor power supply	Battery-driven (Standard Capacity – 2x 7.2Ah)3
Current consumption (motor at rated load)	9A

Input / Output sink currents (Max accessory current draw)

I/O 1-4	100mA (12/24V)
I/O 5 and 6	3A (12/24V) 10sec Pulse
Motor push force – starting	52kgf
Motor push force – rated	39kgf
Gate mass – maximum	2000kg
Gate length – maximum	25m
Gate speed (varies with load)2,5	Up to 18m/min3
Manual Override	Lockable lever with key release
Drive Pinion	13T Module 4
Operations in standby with 2x 7.2Ah batteries	Operating Mode
	Power Saving 15m/min 20kgf	Normal 18m/min 20kgf
Half day2, 3, 4	101	55
Full day2, 3, 4	80	45
Collision Sensing	Electronic
Operating temperature range	-15°C to +50°C
Onboard receiver type	CENTURION rolling code (Keelog encryption) multichannel
Receiver code storage capacity	1500 Remotes6
Receiver frequency	433.92MHz
Degree of protection	IP54
Mass of unit packed (with standard kit, but excl. rack and battery)	13kg
Packaging dimensions (with standard kit, but excl. rack and battery)	350mm wide x 282mm deep x 470mm high
