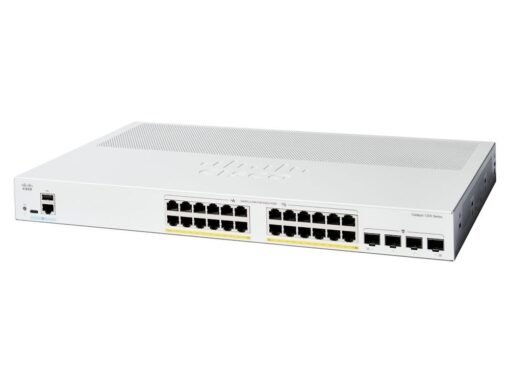

Cisco CBS350-24P-4X-UK 24-Port Managed PoE Switch
Original price was: KSh 182,000.00.KSh 180,000.00Current price is: KSh 180,000.00. excl. VAT
- Network ports: 24 x 1G
- Uplink ports: 4 x 10G SFP+(10 Gigabit)
- Power over Ethernet (PoE): PoE+ (195W)
- Stacking: Stackable up to 4 units
- Fan: Fanless
- Power supply: Internal
Visit our store and enjoy:
- Genuine, brand new, sealed stock
- Price-match against authorized dealers
- Installation & configuration services available
- Expert advice on compatibility with your network
Cisco CBS350-24P-4X-UK 24-Port L2/L3 GE Managed PoE Switch With 10G SFP Ports
The Cisco CBS350-24P-4X (Cisco Business 350 Series, 24-port PoE) is a high-performance, fully managed Ethernet switch designed for small to medium business networks that demand robust network features, Power over Ethernet (PoE/PoE+), and 10 Gb uplink connectivity.
The Cisco Business 350 Series is a portfolio of affordable managed switches that provide a critical building block for any small office network. Intuitive dashboard simplifies network setup, and advanced features accelerate digital transformation, while pervasive security protects business critical transactions.
However, unlike other small business switching solutions that only provide managed network capabilities in the costliest models, all Cisco Business 350 Series Switches support the advanced security management capabilities and network features you need to support enterprise-class data, voice, security, and wireless technologies. At the same time, these switches are simple to deploy and configure, allowing you to take advantage of the managed network services your business needs.
Specification
| Management features | |
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| MIB support | Y |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 4 |
| SFP+ module slots quantity | 4 |
| USB 2.0 ports quantity | 1 |
| Network | |
| Networking standards | IEEEÂ 802.1D, IEEE 802.1s, IEEE 802.1w, IEEEÂ 802.3, IEEE 802.3ab, IEEEÂ 802.3ad, IEEE 802.3u, IEEE 802.3z |
| 10G support | Yes |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Head-of-line (HOL) blocking | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| VLANÂ support | Yes |
| Number of VLANs | 4094 |
Data transmission |
|
| MAC address table | 16000 entries |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Security | |
| DHCP features | DHCP relay, DHCP server, DHCPv6 client |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) rules | 1024 |
| IGMP snooping | Yes |
| Security algorithms | 802.1x RADIUS |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Authentication | Guest VLAN, Web-based authentication |
| Password protection | Yes |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | SNMP |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| IPv4Â &Â IPv6Â features | IPv6 First Hop Security? (FHS) |
| IP Source Guard (IPSG) | Yes |
| Design | |
| Rack mounting | Yes |
| Product colour | Silver |
| Reset button | Yes |
| LED indicators | Yes |
| Market segment | Business |
| Country of origin | China |
| Stacking | Yes |
Performance |
|
| Built-in processor | Yes |
| Processor frequency | 800 MHz |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Firmware upgradeable | Yes |
| Technical details | |
| Products per shipping (inner) case | 1 pc(s) |
| Power | |
| Power supply included | Yes |
| Power supply location | Internal |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 Hz |
| Power plug type | Type C |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 195 W |
| Operational conditions | |
| Operating temperature (T-T) | -5 – 50 °C |
| Storage temperature (T-T) | -25 – 70 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage relative humidity (H-H) | 10 – 90% |
| Weight & dimensions | |
| Width | 299.2 mm |
| Depth | 444.5 mm |
| Height | 43.9 mm |
| Weight | 1.47 kg |
| Packaging data | |
| Package width | 430 mm |
| Package depth | 575 mm |
| Package height | 106 mm |
| Package weight | 5.62 kg |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85176990 |
| Products per master (outer) case | 1 pc(s) |
