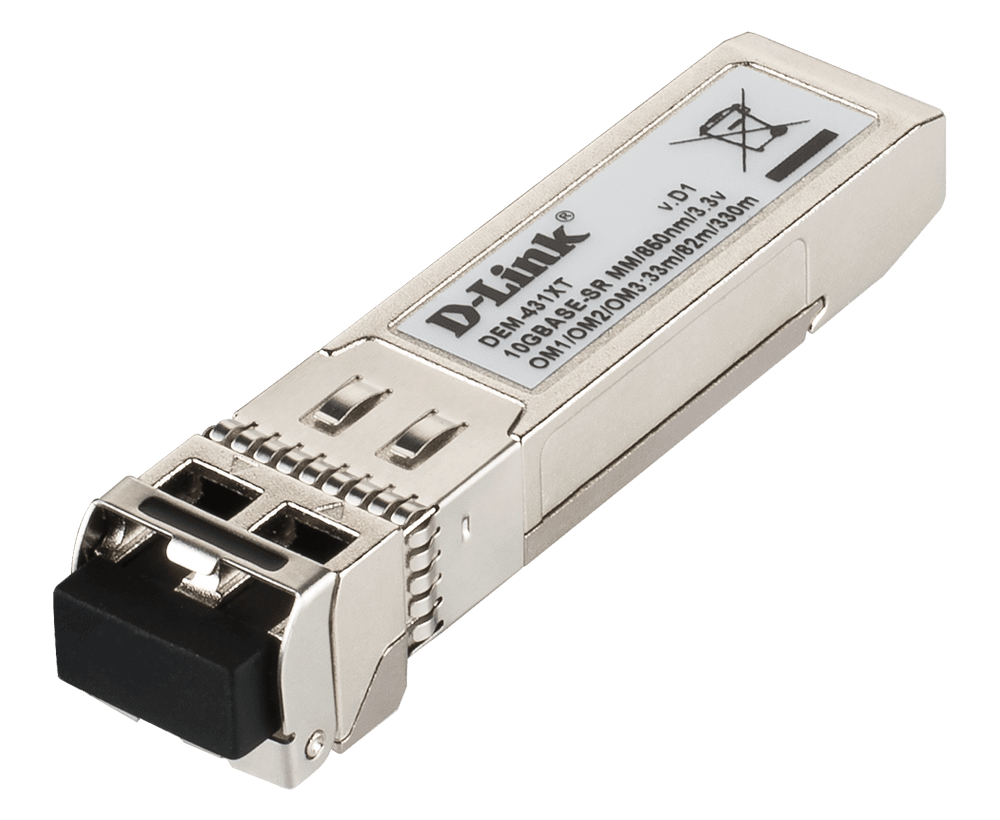

D-Link DEM-431XT-DD 10GBase-SR SFP+ Transceiver
The D-Link DEM-431XT-DD is a high-performance 10GBase-SR SFP+ fiber transceiver designed for high-speed network connections over short distances. It delivers 10 Gigabit Ethernet performance using multi-mode fiber (MMF) and is ideal for data centers, enterprise networks, and storage area networks (SANs) that require fast and reliable fiber connectivity.
Better 10G Ethernet Connectivity for Enterprise Deployments
10G Ethernet speeds
The transceivers all support 10G Ethernet, which results in very fast data transmissions of up to 10 Gbit/s. This is 10 times faster than Gigabit Ethernet and enables the switch to handle faster and higher data transmissions, making it very suitable for business needs.
Enhanced Small Form-factor Pluggable Format
The transceivers use the Enhanced Small Form-factor Pluggable format (SFP+). The SFP+ form factor is smaller than other form factors such as Xenpak, X2, and 10G XFP, ensuring lower costs, lower power disruption, and higher port density. They amplify signals so the port sends data to the network cable. They also boost signals so the port receives data from the cable.
Hot-Pluggable
All D-Link transceivers are hot-pluggable. You can connect a transceiver while the system is powered on without causing any problems. This design lets you add or remove modules without interrupting the network.
Specification
Hot Pluggable | Yes |
---|---|
MSA Compliant | Yes |
RoHS Compliant | Yes |
Compliant Standard | IEEE-802.3ae 10GBASE-SR |
Transceiver Type | SFP+ |
Fiber Channel FC-PI standard | 1200-Mx-SN-I |
Fiber Media support | Multi-Mode |
Distance | 62.5μm, 160 MHz-km: 26m 62.5μm, OM1 200 MHz-km: 33m 50μm, 400 MHz-km: 66m 50μm, OM2 500 MHz-km: 82m 50μm, OM3 2000 MHz-km: 300m |
Speed | 10Gbps |
connector | Duplex LC Connector |
single/bi Direction | single-direction |
Wavelength | 850 nm |
Output Optical Power (TX Optical Power) | MAX:-1 dBm |
Interface | MIN.: -11.1 dBm |
Input Optical Power (RX Optical Power) | MAX.: -1 dBm |
Sensitivity | -11.1 dBm |
Cable Type | multi-mode 50/125um or 62.5/125um fiber |
Power | 3.3V |
Max Input Current | 3.3V: 300mA |
Power Budget (MIN Power Budget) | 4.6dB |
MAX Power Budget | 10.1dB |
Heat Generated | 3.6KJ/H |
MTBF (hours) | 3,960,000 |
Operation Temperature | 0°~70°C |
Storage Temperature | -40°~85°C |
Humidity (Operating) | 5% ~ 85% |
Humidity (Storage) | 5% ~ 95% |
Dimension ( W x D x H ) | Comply with SFF8432 14.8 x 56.5 x 11.85 mm |
Weight | 18g |
EMI: | CE, FCC, VCCI |
Safety: | UL, TUV, CDRH |
Hardware version | A1 |
