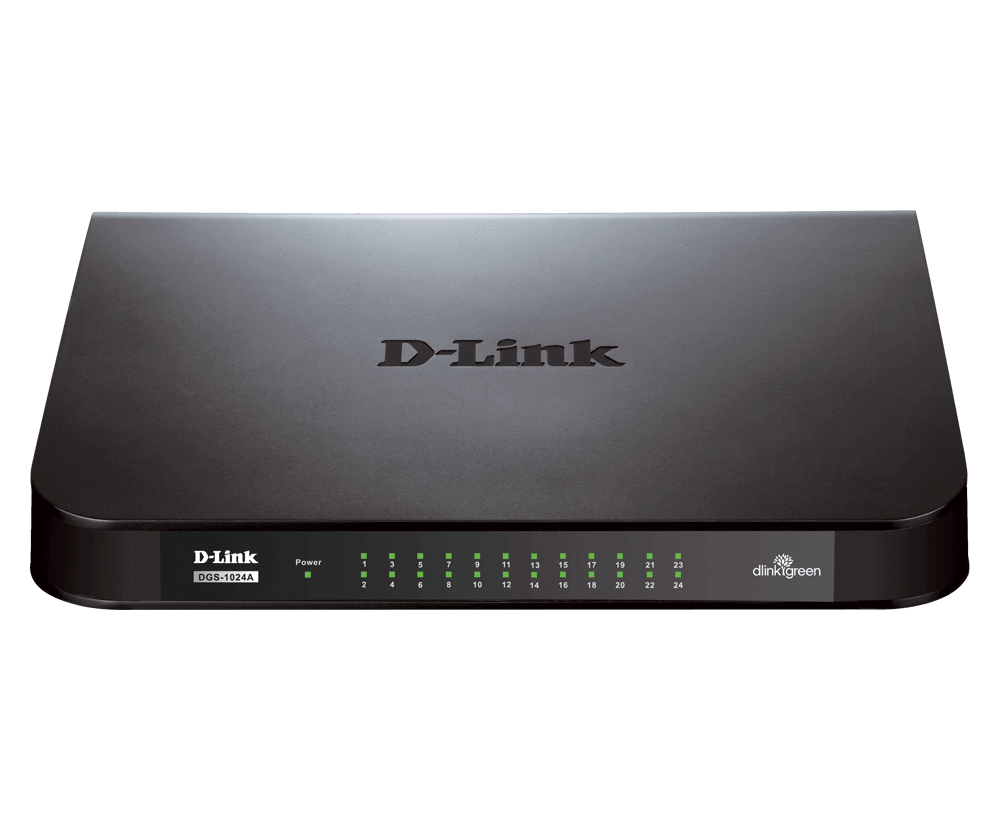

D-Link DGS-1024A 24-Port Unmanaged Gigabit Switch
The D-Link DGS-1024A is a 24-Port Unmanaged Gigabit Switch designed to deliver high-speed, reliable network connectivity for small to medium-sized businesses and growing home networks. With twenty-four Gigabit Ethernet ports, it allows multiple devices to communicate seamlessly at full Gigabit speeds.
Its plug-and-play design ensures easy installation with no configuration required, while its energy-efficient, fanless construction provides silent operation and low power consumption. The DGS-1024A offers a simple, scalable solution for expanding wired networks without the complexity of managed switches.
Gigabit on Every Port
The 16/24-Port Gigabit Switch brings the speed of Gigabit Ethernet to each and every port for a truly high-speed network. If your network has a mix of legacy and modern computing capabilities, each port allows for standard Ethernet, Fast Ethernet, or Gigabit Ethernet connections. You have the latest technology available to every computer and device connected to your network.
Innovative Design
The sleek plastic case of the DGS-1016A/1024A series is an industry first for a Gigabit SOHO/SMB switch. Using a compact desktop style helps reduce heat levels and allow for a fanless design, making the switches silent, as well as economical. The 16/24-Port Unmanaged Gigabit Switch series is small, lightweight, wall-mountable, and ideal for any business with big needs and a small budget.
Conserves Energy
The 16/24-Port Unmanaged Gigabit Switch series helps you conserve energy automatically through several methods. It automatically powers down ports that have no link, allowing the switch to save substantial amounts of power by cutting power usage for unused ports or any ports connected to computers that have been shut down. It can also detect connected cable lengths, and adjusts power usage accordingly, helping you save energy without affecting networking performance.
Think Green
The DGS-1016A/1024A 16/24-Port Gigabit Unmanaged Desktop Switch series makes use of D-Link Green Ethernet technology, providing more energy savings and a longer product life, without sacrificing operational performance or functionality. These environmentally friendly switches are also RoHS compliant, use recyclable packaging, and minimize the use of harmful substances.
Specification
|
Interfaces
|
24 x 1000Base-T Auto MDI/MDIX |
|---|---|
|
Switching Capacity
|
48Gbps |
|
Maximum Forwarding Rate
|
35.712 Mpps |
|
Store & Forwarding Forwading
|
Yes |
|
Dimensions
|
257 x 178 x 46 mm |
|
Temperature
|
Operating: 0 ~ 40 °C Storage: -10 – 70 ˚C |
|
Humidity
|
Storage: 5% ~ 90% RH Operation 5% ~ 90% RH |
|
Max Power Consumption
|
15.7W |
|
Power Input
|
AC:100 ~ 240 V |
|
Packet Buffer Size
|
3.5 MB |
|
Comply with RoHS 6
|
Yes |
|
Power Saving
|
By Link Status By Cable Length |
|
MAC Address Table Size
|
16,384 |
|
Control
|
802.3x Flow |
|
Jumbo Frame
|
9,216 Bytes |
