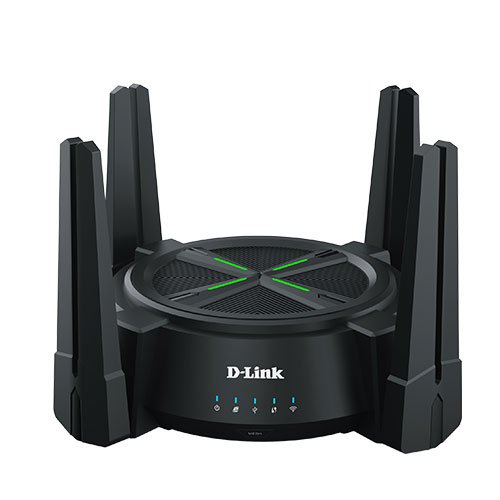

D-Link DIR-X6080Z AX6000 Multi Gigabit Wi-Fi 6 Router
The D-Link DIR-X6080Z/MSG is a high-performance AX6000 dual-band Wi-Fi 6 router designed to deliver ultra-fast speeds, extensive coverage, and robust security features. Equipped with advanced technologies like OFDMA, MU-MIMO, and Beamforming, it ensures seamless connectivity for multiple devices, making it ideal for smart homes and high-bandwidth applications.
Specification
Standards | • IEEE 802.11ax/ac/n/a 5 GHz • IEEE 802.11ax/n/b/g 2.4 GHz |
|
Data Interfaces | • 1 x 10/100/1000/2500 Gigabit WAN port • 1 x 10/100/1000/2500 Gigabit LAN port • 3 x 10/100/1000 Gigabit LAN ports • 1 x USB 3.0 • 1148Mbps for 2.4GHz band(802.11ax 40Mhz 4Ă—4) • 4804Mbps for 5.0GHz band (802.11ax 160Mhz 4Ă—4) • 8 antennas, AX6000 |
|
LEDs | • Power • Internet • 4 LAN LEDs ( LAN 1 – LAN 4 ) LEDs at LAN ports • USB • Wi-Fi • Mesh/WPS |
|
Buttons |
• Power ON/OFF Switch, RESET, WPS/MESH | |
WiFi Encryption | • WEP, WPA-PSK, WPA2-PSK, WPA/WPA2-PSK | |
Network Security | • Access Control, IP & MAC Binding | |
Guest Network | • 4*5GHz Guest Network /4*2.4GHz Guest Network | |
WAN Type | • DHCP, Static IP, PPPoE | |
Quality of Service | • QoS by Device | |
Forwarding | • Virtual Servers, DMZ, UPnP | |
Compliance | • CE, FCC, MCMC MTSFB TC T007:2020 SHORT RANGE DEVICES – SPECIFICATIONS (SECOND REVISION) | |
IPv6 | • IPv6 and IPv4 dual stack • IPv6 Tunnels: DS-Lite • IPv6 Connection Type: PPPoEv6, DHCPv6, Static IPv6 |
|
Mesh | • Support 1 Main + 3 Satellite ( 1 +3 ) | |
Mobile App | • D-Link Wi-Fi Connect ( Android & IOS ) – Support LAN & WAN Environment | |
DDR/FLASH | • 1G/128MB Single Flash Dual Image | |
Operating System | • PC – Microsoft,MacOS Mobile – Android,Apple iOs, Huawei HarmonyOs | |
Management |
• Support Quick Installation Wizard • Support configuration saving, and restore to factory configuration • Support firmware upgrading via WEB GUI • Support Syslog monitoring • TR-069/TR-181/TR-143 compliance |
|
Power Supply | • 12V/3A power supply | |
Temperature | • Operating temperature: 0°C — 60°C, Operating humidity: 10-85%(non-condensed) • Storing temperature: -40°C — 80°C , Storing humidity: 5-95%(non-condensed) |
|
Dimensions | • Device: 267mm x 267mm x 167mm Box: 405mm x 340mm x 186mm | |
Weight | • Device: 680g Box : 1260g ( with device ) | |
Certifications | • CE, FCC | |
Environment | • Operating Temperature: 0℃~40℃ • Storage Temperature: -40℃~70℃ • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
