D-Link DMC‑300SC Multimode Media Converter

Original price was: KSh 8,500.00.Current price is: KSh 8,000.00. excl. VAT

One channel 10/100/1000 Mbps Ethernet to 100/1000 Mbps fibre optic conversion
Plug-and-Play, no additional software required
Can be used standalone or installed in the DMC-1000 chassis
Half or full-duplex operation
Auto-MDI/MDIX

Buy online at Best price in Nairobi Kenya

SKU: HB33161 Category: D-Link Store Kenya

Description
Reviews (0)

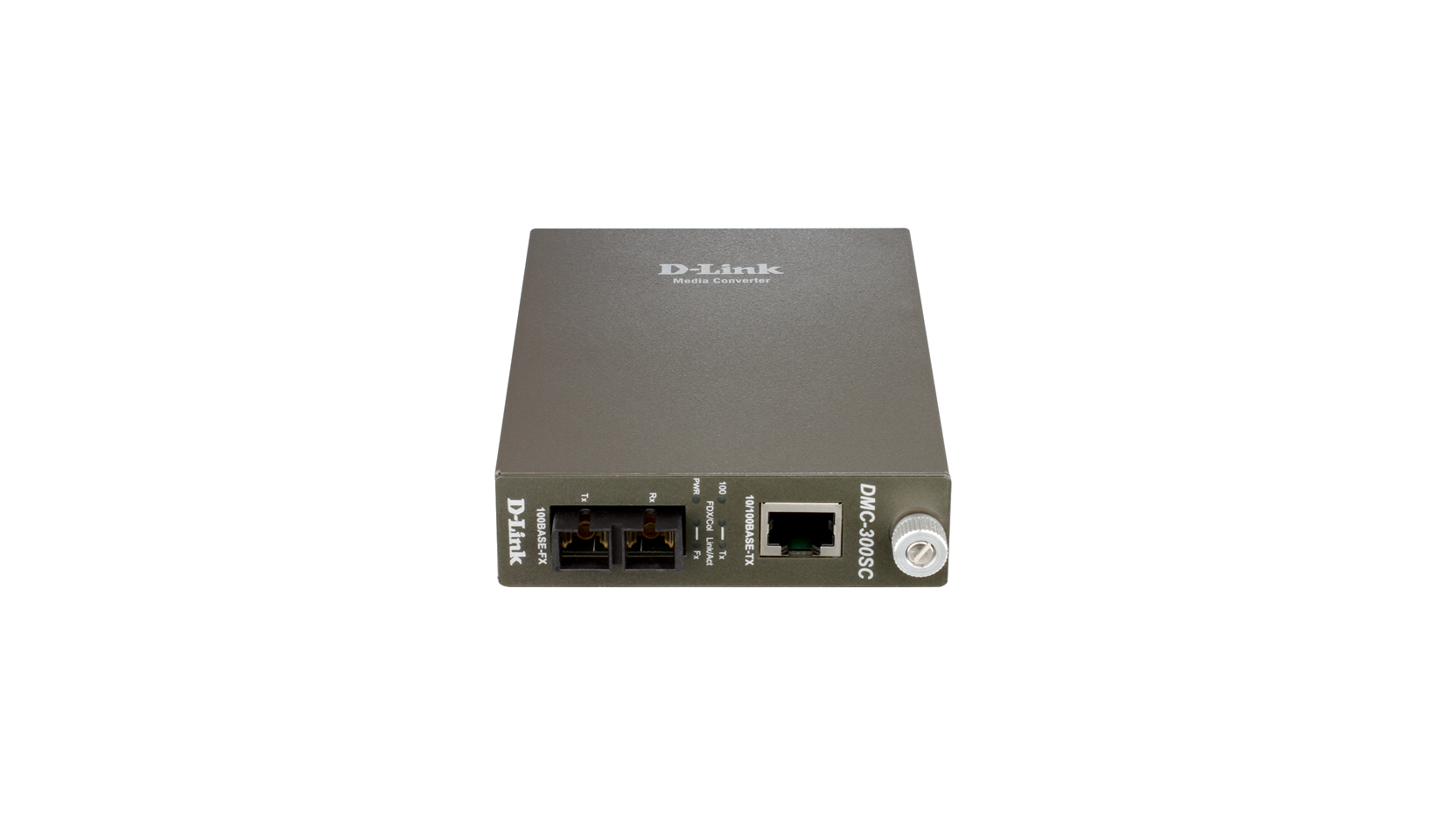

D-Link DMC‑300SC Multimode Media Converter

The D-Link DMC‑300SC is a media converter designed to connect 10BASE-T/100BASE-TX copper to 100Base-FX fiber media and vice versa. Based on the IEEE 802.3 and 802.3u standards, the DMC-300SC is designed for use with multimode fiber cable utilising the SC-Type connector.

The DMC-300SC supports shortwave (SX) laser specifications at a full wire-speed forwarding rate. Other features of this module include the ability to be used as a standalone device (no chassis required), Auto MDI/MDI-X, Auto negotiation of speeds and duplex modes on twisted-pair port, and front panel status LEDs. The DMC-300SC will transmit at extended fiber optic distances utilising multimode fiber up to 2 kilometers.

D-Link DMC‑300SC Multimode Media Converter

Specs

Download the datasheet.

General features

Interface
Number of Ports
• 1 x 10/100BASE-TX RJ-45 port
• 1 x 10/100BASE-FX SC port

Standards
• IEEE 802.3 for 10BASE-T/F
• EEE 802.3u for 100BASE-TX/FX

Data Transfer Rate
• Ethernet: 10 Mbps/20 Mbps (halfduplex/full-duplex)
• Fast Ethernet: 100 Mbps/200 Mbps (half-duplex/full-duplex)

Duplex Mode
• Half-duplex/full-duplex

Media Types
• 10BASE-T: 2-pair Cat. 3/4/5/5e, Unshielded Twisted Pair (UTP) (up to 100 m)
• 10/100BASE-TX: 2-pair Cat. 5/5e, Unshielded Twisted Pair (UTP) (up to 100 m)
• 100BASE-FX: Multi-mode fiber optic cable with SC connector (up to 2 km)

Media Exchange Interface
• Auto-MDI/MDIX

Functionality
Transmission Mode
• Store-and-forward

Forwarding Rate
• Full wire-speed forwarding rate

Management
• Through the DMC-1000 chassis with the DMC-1002 management module installed

Management Functions
• Fiber port duplex mode

Physical
Diagnostic LEDs
• Power
Speed (for twisted pair ports)
• Full-duplex/Collision (for twisted pair and fiber ports)
• LINK/ACT (for twisted pair ports)

AC Input
• 5 V/1 A external power adapter

Temperature
• Operating: 0 °C to 40 °C (32 °F to 104 °F)
• Storage: -25 °C to 70 °C (13 ºF to 158 °F)

Humidity
• 10% to 90% RH, non-condensing

Dimensions
• 120 x 88 x 25 mm (4.72 x 3.46 x 0.98 in)

Weight
• 291 g (0.64 lbs)

Fiber Wavelength
• 1310 nm

Supported Fiber Cable Length
• Up to 2 km

Emission Certifications (EMI)
• FCC Class A
VCCI Class A
• CE Class A
