D-link DMC-540SSC Fiber media converter

Original price was: KSh 6,500.00.Current price is: KSh 6,000.00. excl. VAT

Supports Single-mode Fiber Cable Distance Up To 40 km
1 x 10/100BASE-TX RJ-45 port & 1 x 100BASE-FX SC port
Auto-MDI/MDIX
Can be used as a stand-alone device or installed in a chassis
Fibre Wavelength: 1310 nm

Visit our store and enjoy:

Genuine, brand new, sealed stock
Price-match against authorized dealers
Installation & configuration services available
Expert advice on compatibility with your network

SKU: HB42684 Categories: D-Link Store Kenya, Fibre Optic Accessories Brand: Dlink

Description
Reviews (0)

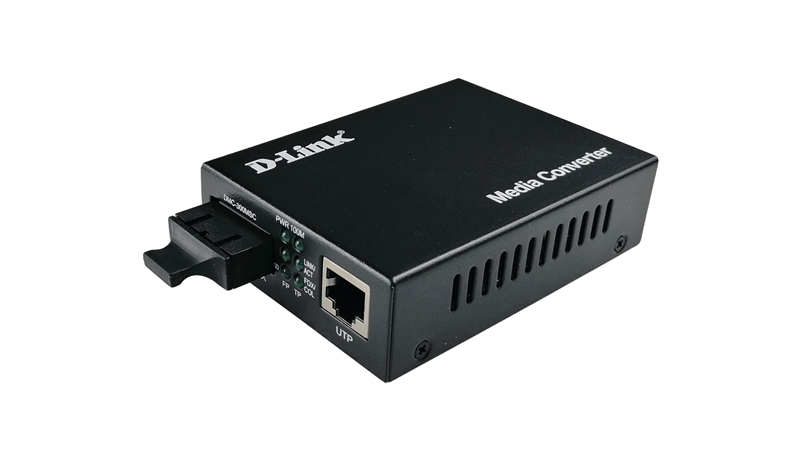

D-link DMC-540SSC Fiber media converter

The D-Link DMC-540SSC is a reliable and efficient media converter designed to bridge your network’s copper and fiber segments, offering a seamless and cost-effective solution for long-distance data transmission.

With support for one 10/100 Mbps RJ-45 port and a 100BASE-FX SC port, this device converts fast Ethernet from twisted-pair copper to single-mode fiber, enabling links up to 40 km. Built with plug-and-play simplicity, auto-MDI/MDIX, and flexible deployment options (standalone or in a chassis), it’s ideal for extending network reach without compromising performance.

Specification

DMC-540SSC
Interface
Number of Ports	• 1 x 10/100BASE-TX RJ-45 port• 1 x 100BASE-FX SC port
Standards	• IEEE 802.3 for 10BASE-T/F• IEEE 802.3u for 100BASE-TX/FX
Data Transfer Rate	• Ethernet: 10 Mbps/20 Mbps (half duplex or full-duplex)• Fast Ethernet: 100 Mbps/200 Mbps (half duplex or full duplex)
Duplex Mode	• Half-duplex/full-duplex
Media Types	• 10BASE-T: 2-pair Cat. 3/4/5/5e, Unshielded Twisted Pair (UTP) (up to 100 m)• 10/100BASE-TX: 2-pair Cat. 5/5e, Unshielded Twisted Pair (UTP) (up to 100 m) • 100BASE-FX: Multi-mode fi optic cable with SC connector (up to 40 km)
Media Exchange Interface	• Auto-MDI/MDIX
Functionality
Transmission Mode	• Store-and-forward
Forwarding Rate	• Full wire speed forwarding rate
Physical
Diagnostic LEDs	• Power• Speed (for twisted pair ports) • Full-duplex/Collision (for twisted pair and fi ports) • LINK/ACT (for twisted pair ports)
AC Input	• 5 V/1 A external power adapter
Temperature	• Operating: 0 °C to 50 °C• Storage: -20 °C to 70 °C
Humidity	• 5% to 90% RH, non-condensing
Dimensions	• 95x 70 x 26 mm
Fiber Wavelength	• 1310 nm
Supported Fiber Cable Length	• Up to 40km
Emission Certifi tions (EMI)	• FCC
