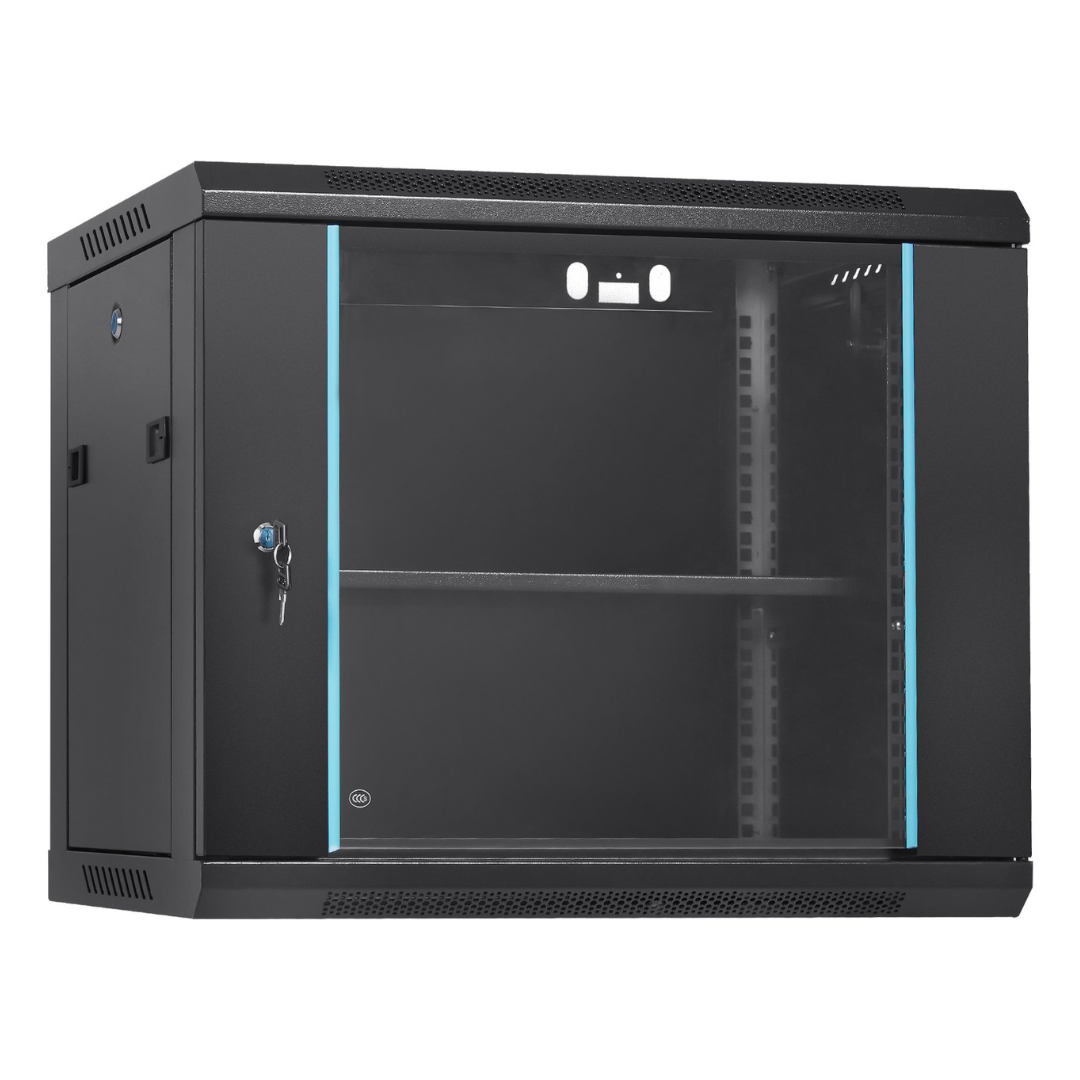

Easenet 9U 600 X 600 MM Wall Mount Network Cabinet

Original price was: KSh 20,000.00.Current price is: KSh 19,000.00. excl. VAT

Ideal for 19″ rackmount applications
Maximum static load of 60 kg
Dimensions:600mm (W) x 600mm (D) x 502mm (H)

SKU: HB41540 Categories: Easenet Data Cabinet, Wall Mount Network Cabinet Brand: Easenet

Description
Reviews (0)

Easenet 9U 600 X 600 MM Wall Mount Network Cabinet

The EaseNet 9U Wall Mount Network Cabinet provides a secure, organized, and space-saving solution for storing networking and telecom equipment. Designed with a 600mm width and 600mm depth, it offers additional internal space for better cable management and housing larger devices compared to standard shallow cabinets.

Technical parameters:

product line: EaseNet
basic dimensions 19“/9U
height [mm] 507
width [mm] 600
depth [mm]600
back: closed, can be opened
side opening: yes, lock o from the inside, lock – option
rack rails adjustment: yes, fully adjustable
possibility of mounting fans: yes, 2x120x120mm (105x105mm)
Libra [kg]: 27.2
carrying capacity [kg]: 60
color: black RAL 9005
Manufacturing standards: Compliance with ANSI/EIA RS-310-D, DIN41491 PART1, IEC297-2, DIN41494 PART7, GB/T3047.2-92
Compatibility with standards: ETSI metric and international 19”. Adaptation to general parameters 10” – no standard.

Specification

Destination	RACK 19″ cabinet enables integrating CCTV, AC, I&HAS, RTV, LAN, or other systems in small companies or households. It is intended for devices manufactured in enclosures of 19″ standard. Due to RACK cabinets, devices are aesthetically mounted and protected against mechanical damage.
Mounting dimensions	19″ x 9U
Dimensions	600 x 502 x 600 [+/-2 mm]
Type Cabinets	wall mounted, ready to assemble
Static load	70kg
Closing	front door – lock (RAZ25, same code) side panel – Click (lock assembly possible – RAZB16)
Material	cold-rolled steel SPCC, 1.2mm, 1.5mm, RAL9004 (black), metallic
Protection grade EN60529	IP 20
Warranty
Notes	– changeable door – right or left – ventilation holes in the top panel (2 x 105x105mm – mounting dimensions) – cable ducts in the top and bottom panel – changeable door – right or left – possibility of disassembly rear panel
