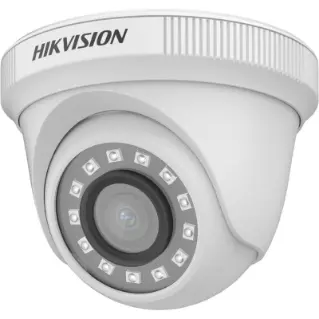

Hikvision DS-2CE56D0T-IRP Dome Camera (2.8MM) description

Elevate your surveillance capabilities with the advanced technology and superior features of the Hikvision DS-2CE56D0T-IRP Dome Camera (2.8mm). This dome camera is meticulously engineered to deliver high-performance security solutions, providing clear and detailed video footage for a wide range of applications. Let’s delve into the key features and benefits that make the DS-2CE56D0T-IRP a reliable choice for those seeking cutting-edge dome camera technology.

Key Features and Benefits:

1. Crystal Clear 2MP Resolution: Immerse yourself in unparalleled video clarity with the DS-2CE56D0T-IRP, boasting a high-resolution 2MP sensor. This ensures that every detail in the surveillance footage is captured with precision, offering a heightened level of visibility and identification.
2. Versatile 2.8mm Fixed Lens: The 2.8mm fixed lens provides a versatile field of view, making the DS-2CE56D0T-IRP suitable for a variety of surveillance applications. Whether monitoring a small office space, retail environment, or outdoor area, this lens allows for optimal coverage and flexibility.
3. Infrared Night Vision Technology: Equipped with powerful infrared (IR) LEDs, the camera excels in low-light and no-light conditions. The IR technology enables the DS-2CE56D0T-IRP to capture clear and detailed images during nighttime, ensuring comprehensive surveillance around the clock.

• Camera

• Image Sensor2 MP CMOS
• Max. Resolution1920 (H) × 1080 (V)
• Min. Illumination0.01Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time PAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s
• Day & Night ICR
• Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
• Signal System PAL/NTSC

• Lens

• Lens Type2.8 mm, 3.6 mm, 6 mm fixed lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 101°, vertical FOV: 60°, diagonal FOV: 122°

  3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°

  6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8°

• Lens MountM12

• Image

• The Image Parameters Switch STD/HIGH-SAT
• Image Settings Brightness, Sharpness, Smart IR
• Frame Rate TVI: 1080P@30fps, 1080P@25fps
• Day/Night Mode Auto/Color/BW (Black and White)
• Wide Dynamic Range (WDR)Digital WDR
• Image Enhancement BLC, HLC
• White Balance Auto/Manual
• AGC Yes

• Interface

• Video Output1 HD analog output

• General

• Brand: Hikvision
• Material Plastic
• DimensionΦ 89.9 mm × 70.1 mm (Φ 3.54″ × 2.76″)
• Approx. 130 g (0.29 lb.)
• Operating Condition‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
• Communication HIKVISION-C
• Language English
• Power Supply12 VDC ± 25%
• Consumption Max. 2.2 W
• IR Range Up to 20 m
•
