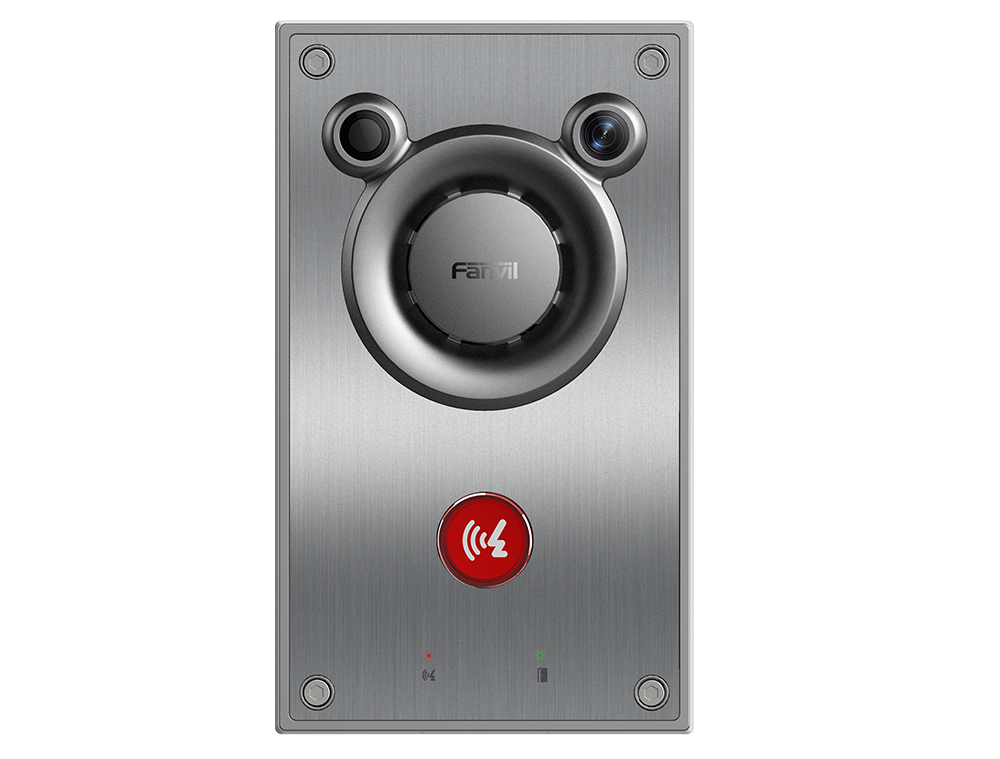

Fanvil A12V Video Intercom

The Fanvil A12V IP Video Intercom offers high-definition video and audio for secure, two-way communication, ideal for door access control in commercial and residential settings. With its robust design, it supports SIP protocol, allowing seamless integration with IP communication systems. Built to withstand harsh conditions, the A12V ensures reliable video surveillance and access management for enhanced security.

Fanvil A12V Specification

Generic

•  2 SIP lines
• Speed dial
•  Linkage with IP camera to realize video intercom
•  Oral announcement of the IP address(in English)
•  MP3, WAV broadcasting
•  Voice monitoring, voice loop self-check
•  Support programmable DSS key
•  Lineout audio output interface
• Support USB port
• Support the Wiegand port
•  Support RS485 port
•  Switch signal input and output
•  Support TF card
•  Support DC12V-24/2A power supply and Power over Ethernet(POE+)

Device Functions

•  Auto-answering
•  Programmable DSS keys
• Through button or remote
•  Network time synchronization
• Time Plan (task management)
•  Dynamic multicast function
• SIP call forwarding to multicast
•  HTTP API
•  Action URL / Active URI

Call Functions

•  Call out / answer / reject
•  Call waiting
•  Intercom, Multicast
•  Speed dial
•  Anonymous call (Hide caller ID)

Audio

•  Narrowband codec: G.711A/U, G.729A/B, iLBC, G.723.1, G.726- 32K
•  Wideband codec: G.722, Opus
•  DTMF: In-band, Out-of-Band (RFC2833/ SIP INFO)
•  Full-duplex hands-free speakerphone with AEC

Physical Specifications

•  DSS key x1 (support LED)
•  RJ45 port x1: connect the network
•  PoE+ enabled（IEEE 802.3at, class 4）
• Lineout port x1: connect the active speaker
• Out: the impedance value is 1000Ω
• Port: terminal socket
•  Short circuit input port x2
•  Short circuit output port x2 (built-in relay)
•  Relay: MAX DC30V / 2A, AC125V / 0.5A
•  Active switching output: 12V/500mA DC(only 1 relay support)
• Port: terminal socket
•  Tamper alarm switchx1
•  Micro SD card slot x1: Connect SD card
•  USB port x1
•  Wiegand port x1
•  485 port x1
•  DC port x1: DC power input
•  DC power input: DC 12V~24V/2A
•  Port: 2 Pin terminal socket
•  Protection level: IP66 and IK10
•  Appearance material: Stainless steel panel decoration, aluminumalloy shell
•  Installation: Wall-mounted & flush-mounted
•  Working temperature: -40℃~ 70℃
• Storage temperature: -40℃ ~ 70℃
• Working humidity: 10~95%
•  N.W/PCS: 1.134Kg
•  N.W/CTN: 11.34Kg
•  G.W/CTN: 11.97Kg
•  Device dimensions: 205*120*47 mm
•  Gift box dimensions: 275*165*62mm
•  Outer CTN dimensions: 350*335*295mm(10 sets)
