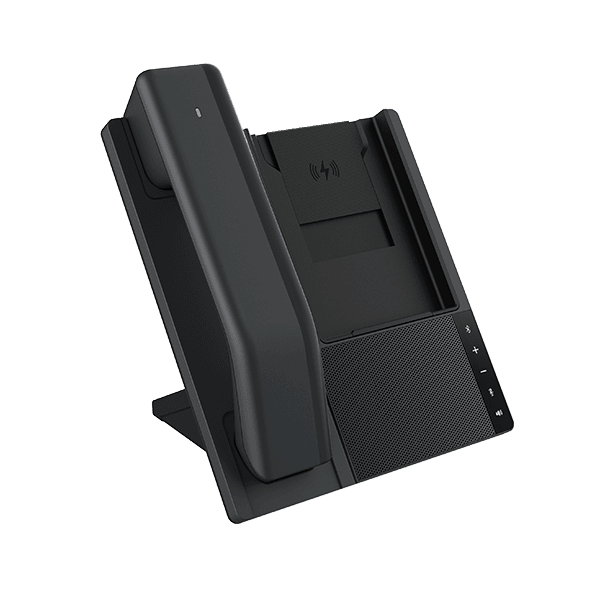

Fanvil DB20-H All-in-one Phone Station

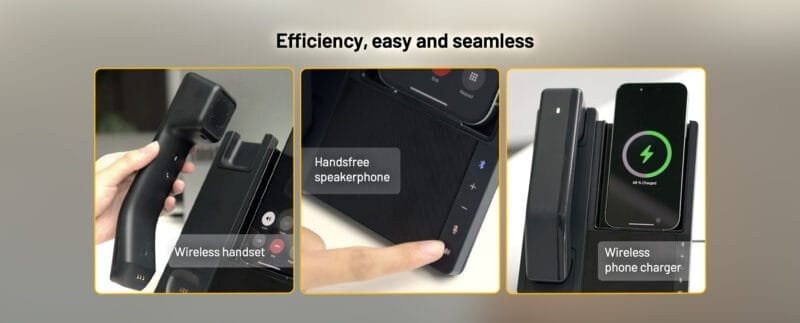

The LINKVIL By Fanvil DB20-H All-in-One Phone Station is a neat all-in-one phone station with seamless communication for PC and Smartphone. It features a wireless handset with Bluetooth 5.4 and on-handset controls. It also has a wireless phone charger, tilt stand, speakerphone with dual-mic, and instant access buttons.

Specification

Base

•  Microphone
  – Type: 2 omnidirectional analog microphones
  – Voice pickup range: 1.5 meters
  – Sensitivity: -32dBFs
  – Frequency: 45Hz~7KHz
  – SNR: >65dB(A)
  – Full-duplex
  – Beamforming
  – Environment Noise Cancellation (ENC)
  – Adjustive Noise Suppression (ANS)
  – Automatic Gain control (AGC)
  – Reverberation Reduction
•  Speakerphone
  – Speakerphone/Rated power: 4Ω 3W/φ40mm
  – Sensitivity: 87dB±2dB
  – Frequency range: 195Hz~20KHz
  – Music mode bandwidth: 195Hz~20KHz
  – Speaker mode bandwidth: 195Hz~20KHz

Wireless Handset

•  Microphone
  – Type: 2 omnidirectional analog microphones
  – Sensitivity: -38dBFs
  – Frequency :45Hz-8KHz • Hearing Aid Compatible (HAC) • Battery capacity: 300mAh
  – Talk time: 14h
  – Charging time: 3.4h
  – Standby time: 21h (Automatically shut down if no
  operation performed for 10 minutes)

Connectivity

•  Base (PC/mobile device): USB/Bluetooth
•  Handset: Bluetooth
•  Bluetooth
  – Version: Bluetooth 5.4
  – Profiles: A2DP, HSP
  – Operating range: Up to 10m/33ft
  – Pairing list: Up to 8 devices
  – Simultaneous connections: 2

Wireless Charging

•  Number of wireless charging coils: 1
•  Charging power: 10W for mobile phone charging, 5W for handset charging • Effective distance of wireless charging: coil is
  aligned with the center within a diameter range of
  3~5mm

Physical Specifications

•  Dimensions

– Base: 204.8*174.9*114.8mm- Handset: 203.7*45.8*47mm- Gift-box: 240*233*133mm- Carton package: 486*286*260 (4PCS) •

• Weight
  – Base: 752g
  – Handset: 180g
  – Carton Net weight: 4.60kg
  – Carton Gross weight: 5.30kg
•  Temperature and humidity
  – Working temperature: -10°C – 60°C- Working humidity: 10% – 95%RH

Package Contents

•  DB20-H all-in-one phone station
•  Wireless handset • Power supply-12V/1.5A
•  USB cable
•  Quick Start Guide
