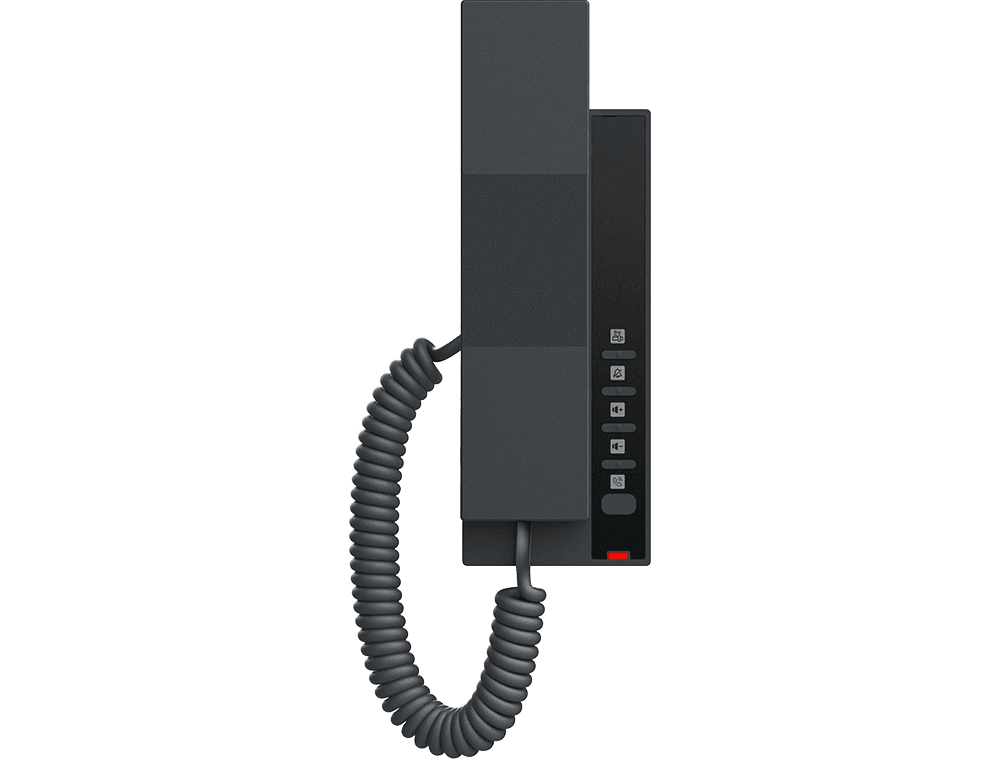

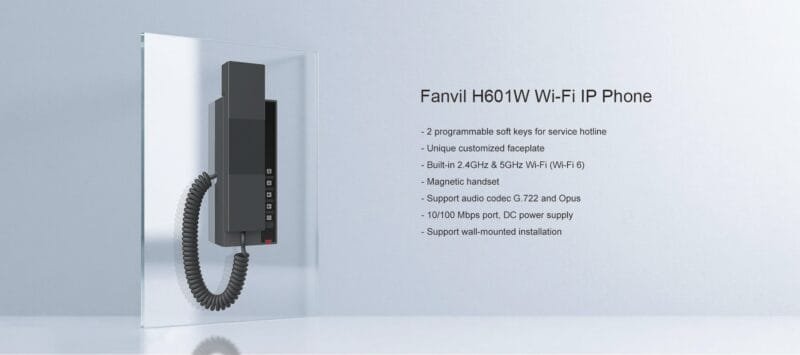

Fanvil H601W WiFi Hotel IP Phone
Fanvil H601W is a compact Wi-Fi IP phone featuring two programmable keys and support wideband codecs G.722 and Opus. With built-in dual-band 2.4GHz/5GHz Wi-Fi and Wi-Fi 6 support, it ensures stable wireless connectivity while reducing network deployment costs. Ideal for hotels, shopping malls, hospitals, and supermarkets, it offers a convenient and efficient user experience.

Specification
Generic
- 2 SIP Lines
- HD Voice
- PoE(only H601 supports)
- Built-in dual-band 2.4G&5G Wi-Fi 6(only H601W supports)
- Hand set / Hands-free
- Intelligent DSS Keys (speed dial key)
- Optional External Power Supply(H601 sold separately)
Phone Functions
- Programmable DSS keys
- Action URL / Active URI
- Built-in dual-band 2.4G & 5G (Wi-Fi 6)
➢ 2.4G, 802.11 b/g/n/ax
➢ 5G, 802.11 a/n/ac/ax - Web dial
- Dial plan
- SIP Hotspot
- Distinctive ring
- Multicast
- Built in Wi-Fi SSID(only H601W supports)
- Speed Dial / Answer
- Voice Message
- Hot Line
Audio
- Wideband ADC/DAC 16KHz Sampling
- Narrowband Codec: G.711a/u, G.723.1, G.726, G.729A/B, iLBC
- Wideband Codec: G.722, Opus
- Full-duplex Acoustic Echo Canceller (AEC)
- Voice Activity Detection (VAD) / Comfort
Noise Generation (CNG) / Background
Noise Estimation (BNE) / Noise
Reduction (NR) / Automatic Gain
Control (AGC) - Packet Loss Concealment (PLC)
- Dynamic Adaptive Jitter Buffer
- DTMF: In-band, Out-of-Band (RFC2833/
SIP INFO) - VQM voice quality monitoring
Network
- Physical: 10/100 Mbps Ethernet
- IP Mode: IPv4/IPv6/IPv4&IPv6
- IP Configuration: Static IP / DHCP / PPPoE
- Wi-Fi Encryption: WPA /WPA2-PSK /802.X EAP
- Network Access Control: 802.1x
- VPN: L2TP / OpenVPN
- VLAN: 802.1P/Q
- LLDP
- QoS
- RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
Physical Specifications
- Keypad: 5 keys, including
➢ 2 DSS keys
➢ 3 Function keys
(Up/Down/Hands-free) - MSG indicator (with red color LED) x1
- Handset (RJ9) x1
- Standard RJ9 Handset Cord x1
- RJ9 Port x1: Handset x1
- RJ45 Port x1: Network x1
- Power: DC 5V 1A or PoE
- Power Consumption (PoE):
➢ H601: 1.44W~2.7W - Power Consumption (Adapter):
➢ H601W: 0.9W~1.7W - Working Temperature: 0~45℃
- Working Humidity: 10~95%
- Installation:
➢ Wall-mount
➢ Desktop - Color: Black
- Qty/CTN: 15 pcs
- N.W/CTN:
➢ H601: 7.065kg
➢ H601W: 7.845kg - G.W/CTN :
➢ H601: 7.71kg
➢ H601W: 8.49kg - Device Dimensions: 195*181*30 mm
- Gift Box Dimensions:
➢ H601: 105*58*226mm
➢ H601W: 105*58*266mm - Outer CTN Dimensions:
➢ H601: 340*315*245mm(15 PCS)
➢ H601W: 340*315*285mm(15
PCS)
