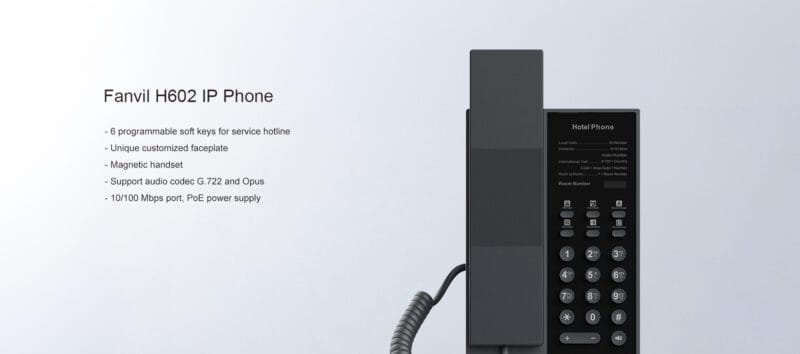

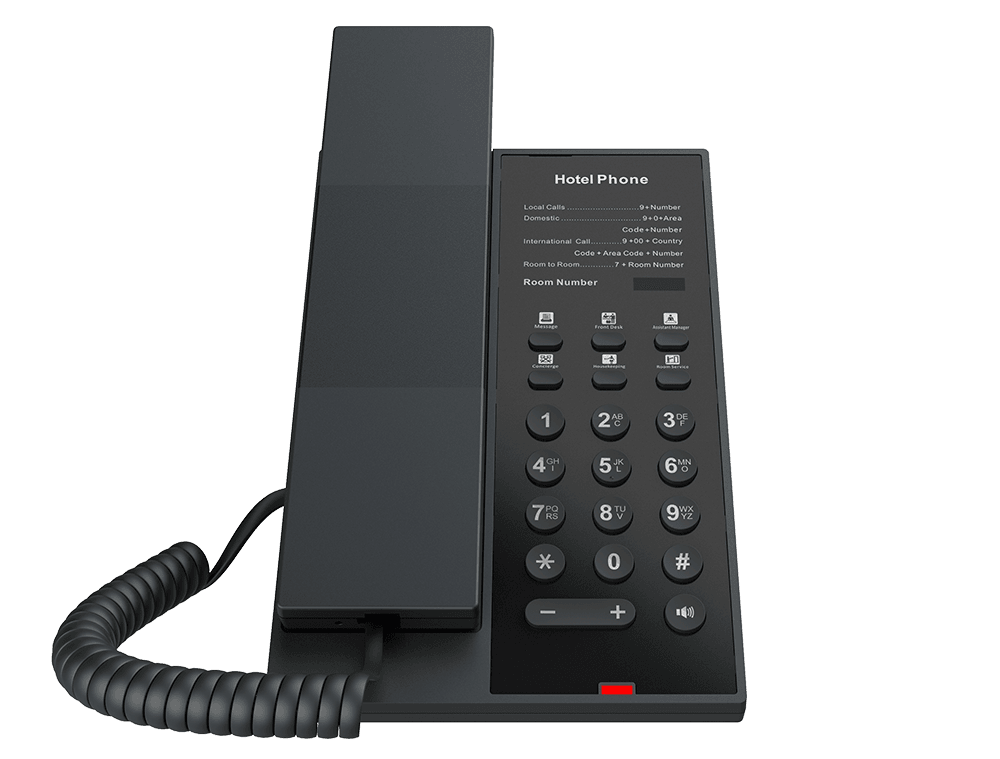

Fanvil H602 Hotel IP Phone

Fanvil H602 is a practical hotel IP phone with an elegant design. It is equipped with 6 programmable keys and supports wideband codecs G.722 and Opus, meeting the flexible deployment needs of various environments such as hotels, shopping malls, hospitals, and supermarkets, while providing users with a convenient and efficient experience.

Specification

Generic

•  2 SIP Lines
•  HD Voice
•  PoE(only H602 supports)
•  Built-in dual-band 2.4G&5G Wi-Fi 6(only H601W supports)
•  Hand set / Hands-free
•  Desktop Stand
•  Intelligent DSS Keys (speed dial key)
•  Optional External Power Supply(H602 sold separately)

Phone Functions

•  Programmable DSS keys
•  Action URL / Active URI
•  Built-in dual-band 2.4G & 5G (Wi-Fi 6)
  ➢ 2.4G, 802.11 b/g/n/ax
  ➢ 5G, 802.11 a/n/ac/ax
•  Web dial
•  Dial plan
•  SIP Hotspot
•  Distinctive ring
•  Multicast
•  Built in Wi-Fi SSID(only H602W supports)
•  Speed Dial / Answer
•  Voice Message
•  Hot Line

Audio

•  Wideband ADC/DAC 16KHz Sampling
•  Narrowband Codec: G.711a/u, G.723.1, G.726, G.729A/B, iLBC
•  Wideband Codec: G.722, Opus
•  Full-duplex Acoustic Echo Canceller  (AEC)
•  Voice Activity Detection (VAD) / Comfort
  Noise Generation (CNG) / Background
  Noise Estimation (BNE) / Noise
  Reduction (NR) / Automatic Gain
  Control (AGC)
•  Packet Loss Concealment (PLC)
•  Dynamic Adaptive Jitter Buffer
•  DTMF: In-band, Out-of-Band (RFC2833/ SIP INFO)
•  VQM voice quality monitoring

Network

•  Physical: 10/100 Mbps Ethernet
•  IP Mode: IPv4/IPv6/IPv4&IPv6
•  IP Configuration: Static IP / DHCP / PPPoE
•  Wi-Fi Encryption: WPA /WPA2-PSK /802.X EAP
•  Network Access Control: 802.1x
•  VPN: L2TP / OpenVPN
•  VLAN: 802.1P/Q
•  LLDP
•  QoS
•  RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)

Protocols

•  SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS
•  RTP/RTCP/SRTP
•  STUN
•  DHCP
•  IPv6
•  PPPoE
•  L2TP
•  OpenVPN
•  SNTP
•  FTP/TFTP
•  HTTP/HTTPS
•  TR-069

Deployment & Management

•  Auto-provisioning via
  FTP/TFTP/HTTP/HTTPS/DHCP
  OPT66/SIP PNP/TR-069
•  Web management portal
•  Web-based packet dump
•  Configuration export / import
•  Firmware upgrade
•  Syslog

Physical Specifications

•  Keypad: 21 keys, including
  ➢ 12 Standard Phone Digits keys
  ➢ 6 DSS keys
  ➢ 3 Function keys
  (Up/Down/Hands-free)
•  MSG indicator (with red color LED) x1
•  Handset (RJ9) x1
•  Standard RJ9 Handset Cord x1
•  1.5 M CAT5 Ethernet Cable x1
•  RJ9 Port x1: Handset x1
•  RJ45 Port x1: Network x1
•  Power: DC 5V 1A or PoE
•  Power Consumption (PoE):
  ➢ H602: 1.44W~2.7W
•  Power Consumption (Adapter):
  ➢ H602W: 0.9W~1.7W
•  Working Temperature: 0~45℃
•  Working Humidity: 10~95%
•  Installation: Desktop
•  Color: Black
•  Qty/CTN: 10 pcs
•  N.W/CTN:
  ➢ H602: 7.39 kg
  ➢ H602W: 7.97 kg
•  G.W/CTN:
  ➢ H602: 7.92 kg
  ➢ H602W: 8.5 kg
•  Device Dimensions: 128*195*49 mm
•  Gift Box Dimensions: 168*220*73 mm
•  Outer CTN Dimensions: 390*240*360mm (10 PCS)
