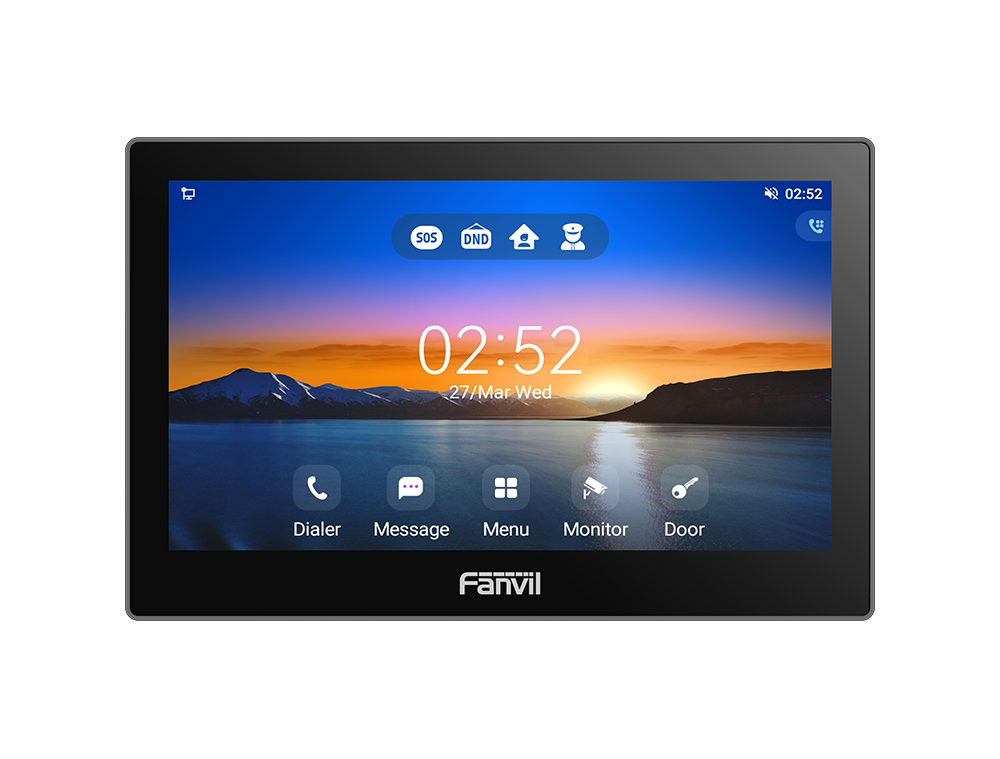

Fanvil i505 Android Indoor Station

The Fanvil i505 Android Indoor Station is a 7-inch touch screen indoor station, boasting a sleek design and user-friendly interface. Powered by Android 9.0, it smoothly integrates with third-party applications.

Equipped with multiple expansion interfaces, it effortlessly links with security devices, enabling functionalities such as two-way intercom, remote door opening, and alarms. Tailored for use in residential communities, villas, office buildings, and similar settings, it enhances safety and convenience, delivering a seamless and secure living experience.

Fanvil i505 Android Indoor Station Technical Specifications

Panel type

• Community
• Hotel
• Villa

Screen

• 7-inch color capacitive touch screen 1024×600

Body

• ABS

Speaker

• 2W

Interface

• 8×Alarm input
• 1×Short circuit output
• 1×Doorbell input
• 1×RS485 (Reserved)

Network

• 10/100 Mbps adaptive

Power Supply

• DC 12V / 1A
• PoE 802.3af

Power Consumption

• PoE: 2.83~7.64W
• Adapter: 2.46~6.51W

Working Temperature

• -10℃~50℃

Storage Temperature

• -40℃~80℃

Working Humidity

• 10%~90%

Size (LWH)

• 177.38×113.99×22.5mm

Installation

• Wall-mounted

Functional Capabilities

• Supported Protocols: SIP 2.0 over UDP/TCP/TLS

Audio

• Narrowband audio codec: G.711A/U, G.729AB, iLBC
• Broadband audio codec: G.722, OPUS
• Full-duplex hands-free calling, supports Acoustic Echo Cancellation (AEC)

Video

• Hardware video decoding: H.264, H.265 (Optional)
• Video call resolution: QVGA / CIF / VGA / 4CIF / 720P / 1080P

DTMF

• In-band, out-of-band DTMF (RFC2833), SIP Info

Do Not Disturb (DND)

• Supported, and the time can be user-defined

Additionally

• Supports viewing video from third-party IP cameras
• Supports customising incoming call ringtones
• Supports remote door unlocking
• Supports sending/receiving messages
• Supports the installation of third-party app
