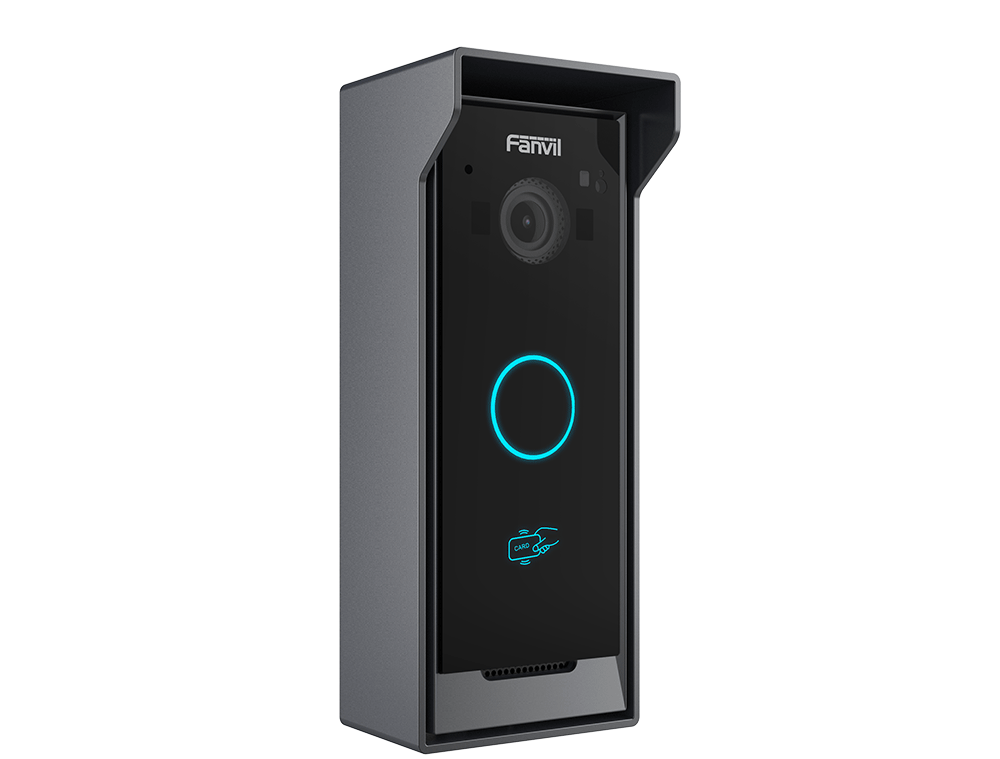

Fanvil i60 Video Door Phone
The Fanvil i60 Entry Level Door Phone provides secure and efficient access control with basic two-way audio communication and reliable entry management. It supports SIP protocol for easy integration into IP-based systems, and users can manage it remotely through smartphones or IP phones. With its durable, weather-resistant construction, the i60 is suitable for outdoor installation, providing dependable performance in various security applications.
Fanvil i60 Specification
| Panel Type | Multi-apartment, Community, Villa |
| Keyboard | 1 Speed-dial Button |
| Body | ABS+PC |
| Colors | Panel: black, Housing: Gunmetal |
| Sensor | 1/2.9-inch,CMOS |
| Camera | 2 Mpx, Support infrared |
| Viewing Angle | 140°(FOV) 100°(Horizontal) 57°(Vertical) |
| Output video | H.264 (Baseline, Main Profile) |
| Light Sensitivity | 0.1Lux |
| Card Storage | 1,0000 |
| Power Consumption | PoE:1.63~6.93WAdapter: 1.51~6.16W |
| Power Supply | DC 12V / 1APoE 802.3af Class 3 |
| Working Temperature | -40℃~+70℃ |
| Storage temperature | -40℃~+70℃ |
| Size of the Panel (LWH) | 50*130*30mm |
| IP / IK Level | IP65 |
| Installation | Wall-mountedRain cover |
Functional Capabilities
| Supported Protocols | SIP 2.0 over UDP/TCP/TLS |
| Lock Opening | IC Card,By DTMF Code,Remote Door Opening, BLE |
| Interface | Wiegand Input/OutputShort Circuit Input/Output |
| Supported Wiegand | 26, 34 bit |
| Supported ONVIF Types | Profile S |
| Supported Standards | DTMF, IC Card, Indoor Switch, BLECards 13.56 MHz |
| Talking Mode | Full duplex (High-definition Audio) |
| Additionally | Built-in relay,Motion detection,Tamper Alarm,TF Card,Open API |
