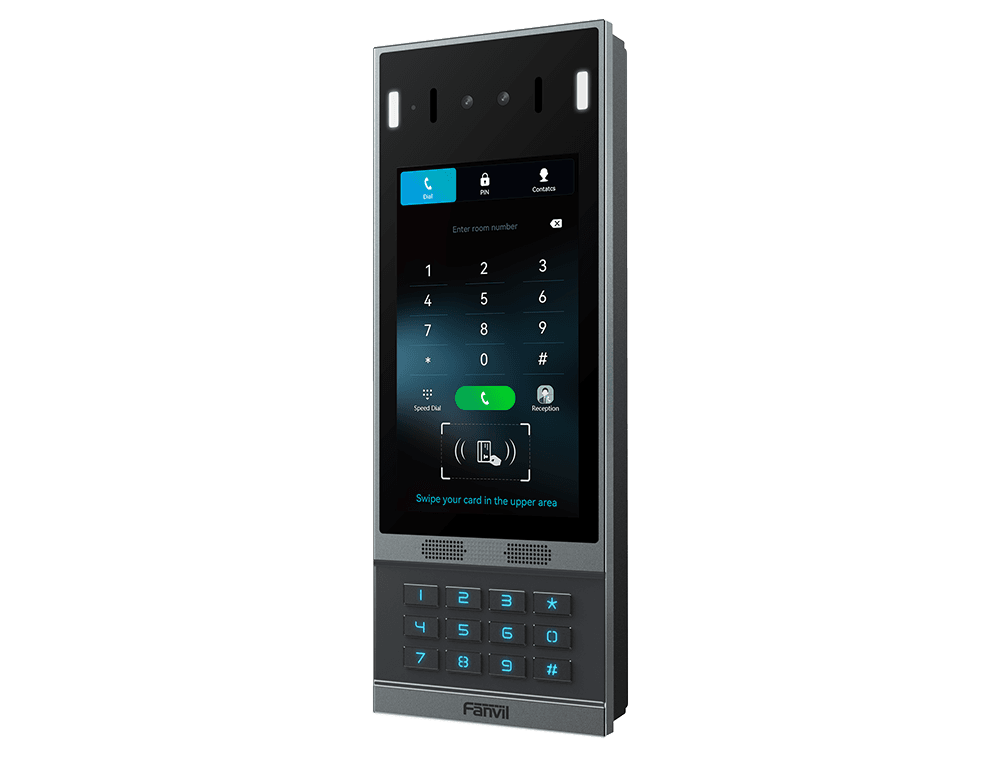

Fanvil i67 Face Recognition Door Phone

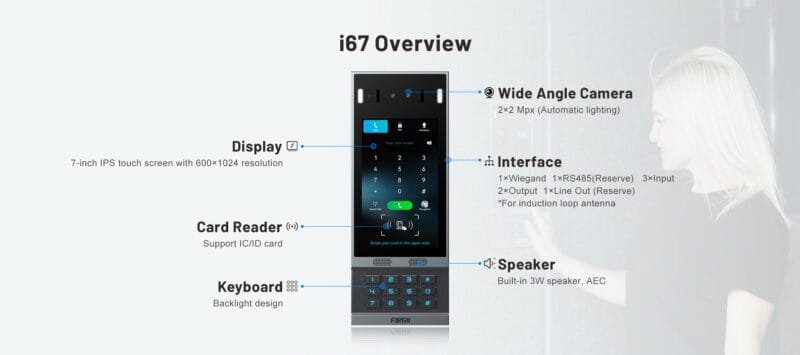

The i67 face recognition door phone is equipped with a 7-inch IPS touch screen and incorporates high-precision face recognition technology. It features anti-spoofing liveness detection for images, videos, and masks, maximizing community security. Additionally, it supports audio and video communication with IP phones, indoor stations, or via a mobile app. With multiple door-opening methods, it is widely applicable in community, apartment, and office building scenarios.

Moreover, it facilitates seamless audio and video communication through IP phones, indoor stations, or a mobile app. Offering various door-opening options, it is versatile and suitable for deployment in community, apartment, and office building settings.

Fanvil i67 Face Recognition Door Phone Technical Specifications

Panel Type

• Multi-apartment
• Community
• Hotel

Screen/Keyboard

• 7-inch 600×1024 touch screen
• 12 Numeric Keys

Body

• Aluminum

Colours

• Gunmetal

Sensor

• 1/2.8-inch

Camera

• 2 Mpx × 2 (Automatic lighting)

Viewing Angle

• 62° (Horizontal)
• 37.4° (Vertical)

Output video

• H.264 (Baseline, Main Profile)

Light Sensitivity

• 0.1 Lux
• (Infrared/White light fill light)

Card Storage

• 1,0000

Face Storage

• 1,0000

Power Consumption

• PoE: 7.9~23.1W
• Adapter: 6.8~21.5W

Power Supply

• DC 12V / 2A (If not using POE+)
• POE 802.3at Class 4

Working Temperature

• -20℃~+60℃

Storage temperature

• -20℃~+70℃

Size of the Panel (LWH)

• 300×115.6×33.2mm

IP / IK Level

• IP66 / IK07

Installation

• Wall-mounted
• Flush-mounted (Need to Purchase Accessories Separately: EX103)

Functional Capabilities

• Supported Protocols: SIP 2.0 over UDP/TCP/TLS
• Lock Opening: Face Recognition, IC/ID Card, PIN Code, QR Code, By DTMF Code, Remote door opening

Interface

• Wiegand Input/Output
• Short Circuit Input/Output
• RS485 (Reserve)

Supported Wiegand

• Supported Wiegand 26, 34 bit

Supported ONVIF Types

• Profile S

Supported Standards

• Mifare Classic 1K/4K, Mifare DESFire, Mifare Ultralight, Mifare Plus Cards 13.56 MHz, Cards 125 kHz

Talking Mode

• Full duplex (High-definition Audio)

Additionally

• Built-in relay
• Open API
• Motion detection
• Tamper Alarm (gravity sensing)
• Smart noise reduction
