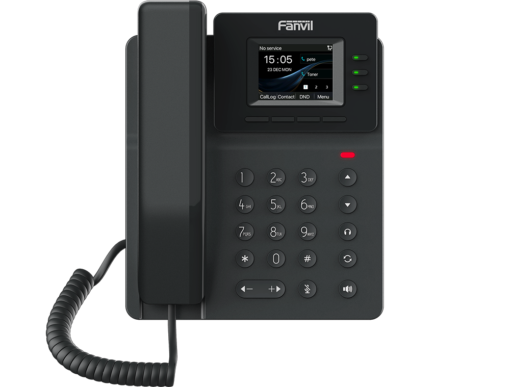

Fanvil V60P is a sleek and reliable basic-level IP phone. It features a 2.4-inch (320×240) color screen, supporting 4 SIP lines, HD voice, and 6-way audio conferencing, offering a clear and intuitive user experience to easily meet multi-party collaboration needs. Built-in 2.4G/5G Wi-Fi (Wi-Fi 6) and Bluetooth 5.4 (only V60W) enhance connectivity flexibility, providing users with an efficient and high-quality business communication experience.

Specifications

Generic

• 4-inch (320×240) color screen
• 4 SIP lines
• HD voice
• PoE enabled
• Intelligent DSS keys
• Handset / hands-free / headset mode
• Desktop Stand / Wall-mounted (optional)
• Optional external power supply
• Handset with Hall-effect Sensor Switch

Phone Functions

• Local Phonebook (1000 entries)
• Remote Phonebook (XML/LDAP)
• Call logs (In/out/missed, 1000 entries)
• Blocked List/Allowed List
• Screen saver
• Voice Message Waiting Indication (VMWI)
• Programmable DSS/Soft keys
• Network Time Synchronization
• Built-in Bluetooth 4: Support

Bluetooth headset/ Pairing mobile devices

• Built-in Wi-Fi and supports Wi-Fi 6
• 4GHz, 802.11 b/g/n/ax
• 5GHz, 11 a/n/ac/ax
• Support Poly wireless headset (Through Poly APD-80 EHS Cable)
• Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
• Support Recording (Through Server)
• Action URL / Active URI
• XML Browser
• Customize Background
• Customize Boot Logo
• uaCSTA
• Customize Incoming Call Ringtone
• time Plan (timed reboot/timed

forward/timed upgrade/timed config)

• Hidden DTMF
• Ring From Headset
• Customize DSS icon
• Customize DSS LED lights
• Customize BLF
• Customize UI Display

Call Functions

• Call out / Answer / Reject
• Mute / Unmute (Microphone)
• Call Hold / Resume/Call Waiting
• Intercom
• Caller ID Display
• Speed Dial
• Anonymous Call (Hide Caller ID)/Ban Anonymous call
• Call Forward (Always/Busy/No Answer)
• Call Transfer (Attended/Unattended)
• Call Parking/Pick-up (Depending on server)
• Redial/Predial
• Call Back
• Do-Not-Disturb (DND)/Timed DND
• Auto-Answering
• SIP SMS
• Voice Message (On server)
• 6-way Audio Conference
• Hot Line
• Hot Desking
• Direct IP call without SIP proxy
• Fuzzy Search Call
• Action Plan
• Dial Plan
• Intercom
• Call Completion/Auto Redial
• Primary and Backup SIP Servers
• Default Ext Line
• Multicast

Audio

• HD Voice: HD handset, HD speaker
• HAC handset
• Wideband ADC/DAC 16KHz Sampling
• Narrowband Codec: G.711a/u, G.723.1, 726, G.729, G.729A, G.729B, G.729AB, iLBC
• Wideband Codec: 722, Opus
• Full-duplex Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR) / Automatic Gain Control (AGC)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF: In-band, Out-of-Band (RFC2833/ SIP INFO)
• VQM voice quality monitoring

Network

• Physical: 10/100 Mbps Ethernet, dual bridged port for PC bypass
• IP Mode: IPv4/IPv6/IPv4&IPv6
• IP Configuration: Static IP / DHCP / PPPoE
• Network Access Control: 1x
• VPN: L2TP / OpenVPN
• VLAN
• LLDP
• QoS
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
• DNS-SRV (RFC 3263)
• Support Redundant Servers
• Agent
• Https Mutual Authentication
• Wi-Fi Security Mode： WPA/WPA2-PSK/802.1X EAP

Physical Specifications

• LCD:2.4-inch (320×240) color screen
• Keypad: 27 keys, including
  • 3 DSS keys with LED indicator light
  • 3 Function keys (Mute, Headset, Redial)
  • 4 Soft-keys
  • 2 Navigation keys
  • 12 Standard Phone Digits keys
  • 2 Volume Control keys, Lower/Increase (Left/Right)
  • 1 Hands-free key
• HD Handset (RJ9) x1
• Handset with Hall Switch
• Standard RJ9 Handset Wire x1
• 5M CAT5.E Ethernet Cable x1
• Desk Stand x1
• Status Indicator Light x1 (Red)
• RJ9 Port x2: Handset x1, Headset x1
• RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
• Security Slot x1
• Power: DC5V/1A or PoE
  • POE complies with the IEEE 3af standard
  • Power adapter:

Input:100-240VAC~50/60Hz

Output:5V/1A

• Power Consumption (Adapter): 2~2.4W
• Power Consumption (PoE): 7~2.8W
• Working Temperature: 0~45℃
• Working Humidity: 10~95%
• Installation:
  • Desktop Stand
  • Wall-mounted (Optional)
• Color: Dark Grey
• Qty/CTN: 10pcs
• W/CTN: 8.3 kg
• W/CTN: 8.755 kg
• Device Dimensions:
  • Desktop Stand (40°): 00×184.96×169.90 mm
  • Desktop Stand (45°): 00×173.93×177.96 mm
  • Wall mountable: 00×91.34×215.55 mm
• Gift Box Dimensions: 250x220x55 mm
• Outer CTN Dimensions: 460x300x270 mm (10 PCS)
