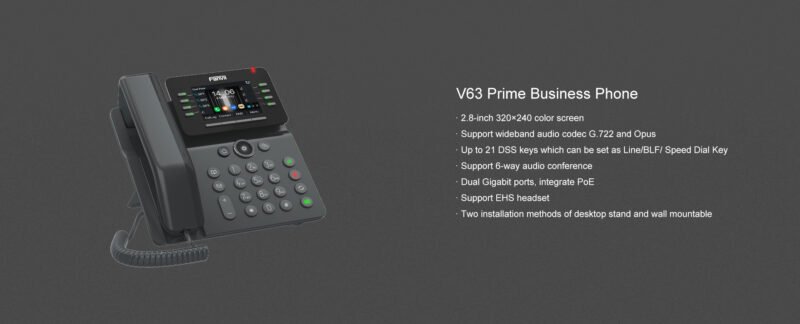

Fanvil V63 Prime Business IP Phone

Fanvil V63 Prime Business IP Phone is more than an efficient telephone but a delicate work of art, providing a smart and smooth business communication experience for enterprises. As the prime business phone featuring 2.8 color screen, VoIP, and other extended features, V63 is a perfect combination of elegant outside and powerful inside.

Generic

• 6 SIP lines
• HD voice
• PoE enabled
• Intelligent DSS keys
• 8-inch (320×240) color screen
• Handset / hands-free / headset mode
• Desktop Stand / Wall-mounted (optional)
• Optional external power supply

Phone Features

• Local Phonebook (1000 entries)
• Remote Phonebook (XML/LDAP, 1000 entries)
• Call logs (In/out/missed, 1000 entries)
• Blocked List/Allowed List
• Screen saver
• Voice Message Waiting Indication (VMWI)
• Programmable DSS/Soft keys
• Network Time Synchronization
• Support Bluetooth headset (Via BT dongle BT20)
• Support Wi-Fi Dongle (Via WF20)
• Support Poly wireless headset (Through Poly APD-80 EHS Cable)
• Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
• Support Recording (through server)
• Action URL / Active URI
• uaCSTA
• Dial Plan
• SIP Hotspot
• Multicast

Call Features

• Call out / Answer / Reject
• Mute / Unmute (Microphone)
• Call Hold / Resume
• Call Waiting
• Intercom
• Caller ID Display
• Speed Dial
• Anonymous Call (Hide Caller ID)
• Call Forwarding (Always/Busy/No Answer)
• Call Transfer (Attended/Unattended)
• BLF
• Call Parking/Pick-up (Depending on server)
• Redial
• Do-Not-Disturb
• Auto-Answering
• Voice Message (With server)
• 6-way Audio Conference
• Hot Line
• Hot Desking

Audio

• HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
• HAC handset
• Wideband ADC/DAC 16KHz Sampling
• Narrowband Codec: 711a/u, G.723.1, G.726, G.729A/B, iLBC
• Wideband Codec: 722, Opus
• Full-duplex Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)

/ Background Noise Estimation (BNE) / Noise Reduction (NR) / Automatic Gain Control (AGC)

• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF: In-band, Out-of-Band (RFC2833/ SIP INFO)
• VQM voice quality monitoring

Network

• Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass
• IP Mode: IPv4/IPv6/IPv4&IPv6
• IP Configuration: Static IP / DHCP / PPPoE
• Network Access Control: 1x
• VPN: L2TP / OpenVPN
• VLAN
• LLDP
• CDP
• QoS
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
• WIFI:WI-FI Security Mode：WPA /WPA2-PSK/802.X EAP

Physical Specifications

• LCD:2.8-inch (320×240) color screen
• Keypad: 39 keys, including
• 7 DSS keys and 1 Page key (with LED indicator light)
• 6 Function keys (Contact, Hold, MWI, Mute, Headset, Redial)
• 4 Soft-keys
• 4 Navigation keys
• 1 OK key
• 1 Return key
• 12 Standard Phone Digits keys
• 2 Volume Control keys, Up/Down
• 1 Hands-free key
• HD Handset (RJ9) x1
• Standard RJ9 Handset Wire x1
• 5M CAT5.E Ethernet Cable x1
• Desktop Stand x1
• Status Indicator Light x1 (Red)
• RJ9 Port x2: Handset x1, Headset x1
• RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
• 0 Port x1: Standard A, Connect with Flash Driver&USB headset and USB dongle
• Security Slot x1
• Power: DC5V/2A or PoE
• Power Consumption (Adapter): 816~4.36W
• Power Consumption (PoE): 28~6.3W
• Working Temperature: 0~45℃
• Working Humidity: 10~95%
• Installation:
• Desktop Stand
• Wall-mounted (optional)
• Color: Gunmetal
• Qty/CTN: 10pcs
• W/CTN:11.45 kg
• W/CTN:12.5 kg
• Device Dimensions:
• Desktop Stand (45°): 85×170.76×166.7 mm
• Desktop Stand (50°): 85×162.5×173.8 mm
• Wall mountable: 85x91x212.5 mm
• Gift Box Dimensions: 307x258x71 mm
• Outer CTN Dimensions: 536x380x327 mm (10 PCS)
