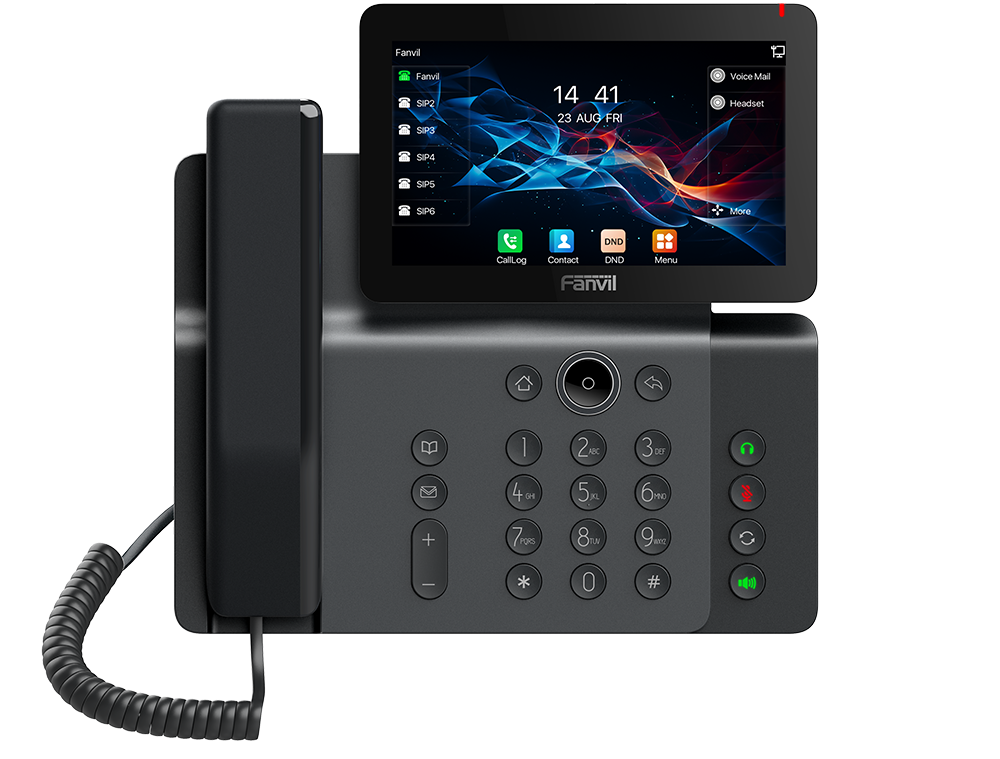

Fanvil V66 Prime Business Phone

The Fanvil V66 Prime Business Phone is a high-end VoIP desk phone designed for modern business environments — from busy offices and front desks to executive workspaces and shared hot-desks. It combines advanced audio and video capabilities with a smart, user-friendly interface to deliver a flexible, future-ready communication solution.

Fanvil V66 Specification

Generic

•  20 SIP lines
• HD voice
• Support receiving Video call
•  Dual Gigabit ports, PoE enabled
•  7-inch (1024×600) color screen
• Handset / hands-free / headset mode
• Intelligent DSS keys(Virtual buttons)
•  Desktop stand / wall-mounted (optional)
•  Optional external power supply
•  Hall-effect sensor

Phone Features

•  Local Phonebook (2000 entries)
•  Remote Phonebook (XML/LDAP)
•  Call logs (In/out/missed, 1000 entries)
•  Blocked List/Allowed List
•  Screen saver
• Voice Message Waiting Indication (VMWI)
•  Programmable DSS/Soft keys
• Network Time Synchronization
• Built-in Bluetooth BLE 5.4: Support Bluetooth headset/ Pairing mobile devices
•  Built-in 2.4G/5G dual-band Wi-Fi and supports Wi-Fi 6
• Support Plantronics wireless headset (Through PlantronicsAPD-80 EHS Cable)
•  Support Jabra wireless headset (Through Fanvil EHS20EHSCable)
• Support Recording(through server)
•  Action URL / Active URI
•  uaCSTA
•  SIP Hotspot
•  Multicast
•  Action Plan
• Group listening

Call Features

•  Call out / Answer / Reject
•  Mute / Unmute (Microphone)
•  Call Hold / Resume
• Call Waiting
•  Intercom
•  Caller ID Display
•  Speed Dial
•  Anonymous Call (Hide Caller ID)
•  Call Forwarding (Always/Busy/No Answer)
•  Call Transfer (Attended/Unattended)
•  Call Parking/Pick-up (Depending on server)
•  Redial
•  Do-Not-Disturb
•  Auto-Answering
•  Voice Message (With server)
•  6-way Audio Conference  Hot Line  Hotdesking
•  BLF
•  IP direct dial

Audio

•  HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
•  HAC handset
•  Wideband ADC/DAC 16KHz Sampling
•  Narrowband Codec: G.711a/u, G.723.1, G.726, G.729, G.729A, G.729B, G.729AB, iLBC
•  Wideband Codec: G.722, Opus  Full-duplex Acoustic Echo Canceller (AEC)
•  Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR) / Automatic Gain Control (AGC)
•  Packet Loss Concealment (PLC)
•  Dynamic Adaptive Jitter Buffer
• DTMF: In-band, Out-of-Band (RFC2833/ SIP INFO)
•  VQM voice quality monitoring

Video

•  Video decoding: H.264
•  Video call resolution: QVGA/CIF/VGA/4CIF/720p/1080p

Physical Specifications

•  LCD: 7 inch (1024×600) color screen,IPS
•  Keypad: 27 keys, including
•  5 Function keys (Contact, MWI, Mute, Headset, Redial)
•  4 Navigation keys
• 1 OK key
•  1 Return key
•  12 Standard Phone Digits keys
• 2 Volume Control keys, Up/Down
• 1 Hands-free key
•  HD Handset (RJ9) x1
•  Standard RJ9 Handset Cord x1
•  1.5M CAT5.E Ethernet Cable x1
•  Desk Stand x1
•  Status Indicator Light x1 (Red)
•  RJ9 Port x2: Handset x1, Headset x1
•  RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
•  USB2.0 Port x1: Standard A, Connect with Flash Driver &USB headset
•  Security lock port x1
•  Power: DC12V/1.5A or PoE
•  Power dissipation: standby 1.9W, high: 7.9W(Power supply)
•  Power dissipation: standby 3.2W, high: 10.1W(POE)
•  Working Temperature: 0~45℃
• Working Humidity: 10~95%
•  Installation:
  • Desktop Stand
  •  Wall-mounted (Optional)
•  Color: Gunmetal
•  Qty/CTN: 10PCS
•  N.W/CTN: 15.9kg
•  G.W/CTN: 17.0kg
• Device Dimensions:245.4×252.5x63mm
• Gift Box Dimensions: 357x258x71 mm
• Outer CTN Dimensions: 534x380x377 mm(10 PCS)
