Fanvil VIK‑01 Video Intercom Kit
Original price was: KSh 16,000.00.KSh 15,500.00Current price is: KSh 15,500.00. excl. VAT
Visit our store and enjoy:
- Genuine, brand new, sealed stock
- Price-match against authorized dealers
- Installation & configuration services available
- Expert advice on compatibility with your network

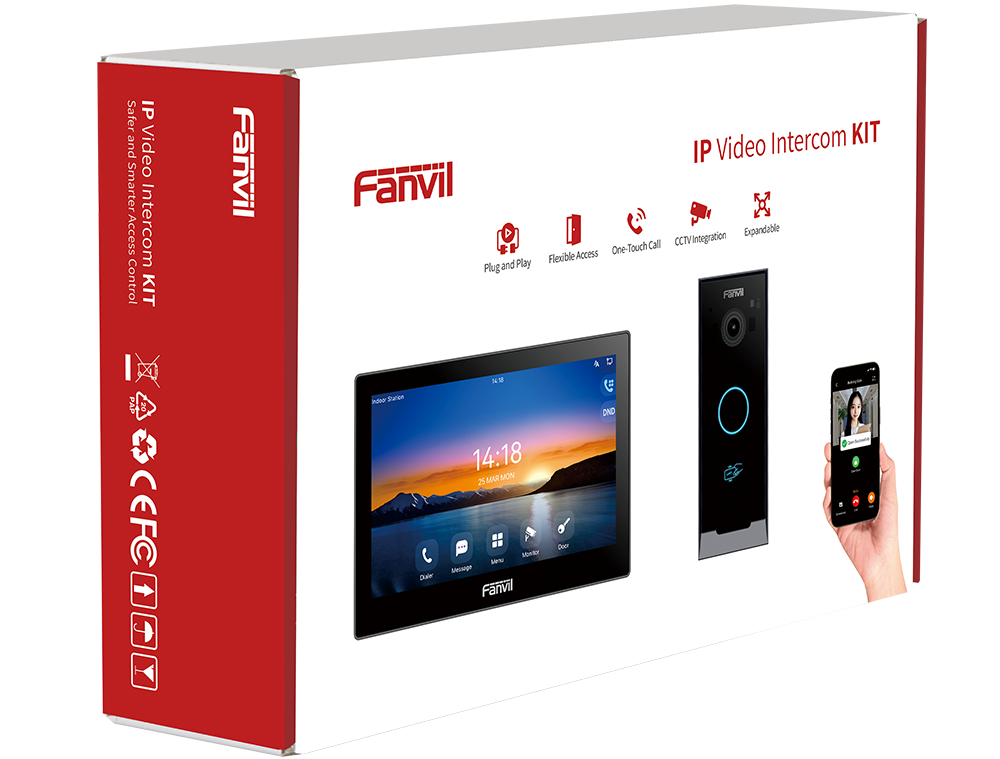

Fanvil VIK‑01 Video Intercom Kit
Fanvil VIK-01 Video Intercom Kit integrates the i504W SIP Indoor Station, i60 Video Door Phone, and Fanvil Link App, ideal for villas and single-family homes. Users can make HD video calls and remotely unlock doors via the indoor unit or Fanvil Link App, with multiple unlocking options and 2.4G/5G Wi-Fi support. Achieve plug-and-play deployment with simple power and network connections.
Fanvil i504W Specifications
| Screen | 7-inch color capacitive touch screen 1024×600 |
| Body | ABS |
| Speaker | 2W |
| Wi-Fi | 2.4G/5G（i504W Supported） |
| Interface | 8×Alarm input, 1×Short circuit output, 1×Doorbell input, 1×RS485(Reserved) |
| Network | 10/100 Mbps adaptive |
| Power Supply | DC 12V / 1A |
| Power | PoE: 3.65~6.64W |
| Working | -10℃~50℃ |
| Storage | -40℃~80℃ |
| Working Humidity | 10%~90% |
| Size (LWH) | 177.38×113.99×22.5mm |
| Installation | Wall-mounted |
Functional Capabilities
| Supported Protocols | SIP 2.0 over UDP/TCP/TLS |
| Audio | Narrowband audio codec: G.711A/U, G.723.1, G.726-16/24/32/40, G.729AB, iLBC Broadband audio codec: G.722, OPUSFull-duplex hands-free calling, supports Acoustic Echo Cancellation (AEC) |
| Video | Hardware video decoding: H.264，H.265 (Optional)Video call resolution: QVGA / CIF / VGA / 4CIF / 720P / 1080P |
| DTMF | In-band, out-of-band DTMF (RFC2833), SIP Info |
| Do Not Disturb (DND) | Supported, and the time can be user defined |
|
Additionally |
Supports viewing video from third party IP cameras Supports customizing incoming call ringtones Supports remote door unlockingSupports sending/receiving messages |
Fanvil i60 Specifications
| Keyboard | 1 Speed-dial Button |
| Body | ABS+PC |
| Colors | Panel: black, Housing: Gunmetal |
| Sensor | 1/2.9-inch，CMOS |
| Camera | 2 Mpx, Support infrared |
| Viewing Angle | 140°(FOV) 100°(Horizontal) 57°(Vertical) |
| Output video | H.264 (Baseline, Main Profile) |
| Light Sensitivity | 0.1Lux |
| Card Storage | 1,0000 |
| PowerConsumption | PoE:1.63~6.93WAdapter: 1.51~6.16W |
| Power Supply | DC 12V / 1APoE 802.3af Class 3 |
| Working | -40℃~+70℃ |
| Storage | -40℃~+70℃ |
| Size of the Panel | 50*130*30mm |
| IP / IK Level | IP65 |
| Installation | Wall-mountedRain cover |
Functional Capabilities
| Supported | SIP 2.0 over UDP/TCP/TLS |
| Lock Opening | IC Card，By DTMF Code，Remote Door Opening, BLE |
| Interface | Wiegand Input/Output Short Circuit Input/Output |
| Supported Wiegand | 26, 34 bit |
| Supported ONVIF | Profile S |
| SupportedStandards | DTMF, IC Card, Indoor Switch, BLECards 13.56 MHz |
| Talking Mode | Full duplex (High-definition Audio) |
| Additionally | Built-in relay, Motion detection, Tamper Alarm, TF Card, Open API |
