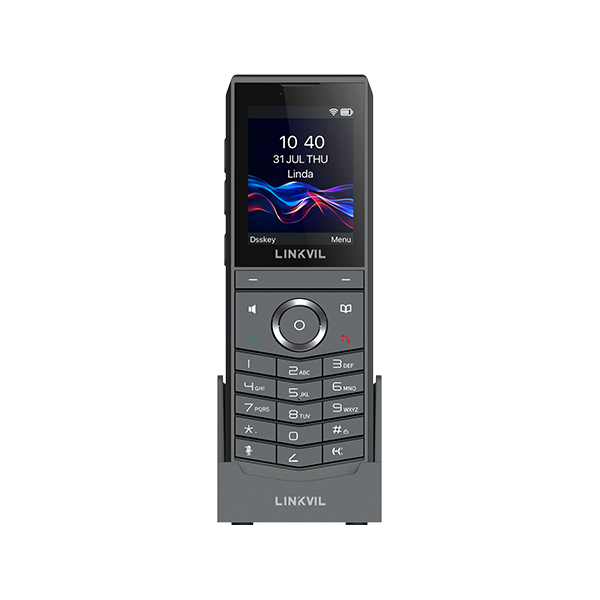

FANVIL W620W Portable Wi-Fi Phone

Fanvil LINKVIL W620W is a portable enterprise-grade Wi-Fi IP phone, specifically designed to meet modern mobile office requirements. Built-in Bluetooth 5.0 and dual-band 2.4GHz/5GHz Wi-Fi 6, combined with advanced seamless roaming technology, it delivers stable and efficient communication performance even in dynamic wireless network environments.

W620W supports 6-way voice conferencing and a 1.8-meter drop resistant design. Additionally, it features a high definition speaker and a high sensitivity dual microphone system with dual mic noise reduction algorithms, ensuring crystal clear calls even in noisy environments.

Fanvil Linkvil W620W Key Features:

• 2.4″ 240 x 320 colour screen with intuitive user interface
• Drop-resistant height of 1.8 meters, sturdy and durable.；
• Built-in dual-band Wi-Fi 6 (2.4GHz/5GHz) delivers superior antiinterference capability and faster speeds.
• Support IEEE802.11k/v/r roaming；
• Support WPA / WPA2-PSK and 802. 1X EAP encryption to ensure communications security；
• Built-in Bluetooth 5.0 can be used to connect wireless earphone;
• Supports batch deployment: One device connects to the network, and multiple devices can share access without passwords.
• Supports Type-C digital headphones, delivering clearer sound quality and more stable connectivity
• Dual-microphone noise reduction effectively suppresses ambient noise, ensuring a clear call experience;
• The side mounted PTT button enables one key intercom for fast and efficient audio transmission
• Equipped with a 3000mAh high capacity removable battery, it delivers long lasting performance with up to 13 hours of talk time and 240 hours of standby time

Fanvil Linkvil W620W Technical Specifications

Generic

• 2.4-inch 240*320 color high definition LCD display
• 8 SIP lines
• Handset/Hands free/Headset Mode
• Support custom DSS keys
• HD Voice
• Belt clip
• Vibration Function
• Desktop charging base
• Standard type c interface
• Rechargeable Lithium Battery
• Support Wi-Fi 6
• Support Bluetooth 5.0
• Support multi language: English/Chinese/German/French/Italian/Portuguese/Russian/Spanish /Arabic

Phone Features

• Network time synchronization
• Local contacts（1000 entries）
• Remote Phonebook (XML/LDAP,)
• Multi-language optional
• Call logs（1000 entries）
• Blocked List/Allowed List
• Screen saver
• Personalized ringtone settings
• Screen backlight adjustment
• Memorandum
• SMS service
• Voicemail（MWI）
• Menu encryption settings
• Keypad lock/ backlight adjustment
• Volume adjustment

Call Features

• Auto-Answering
• Call out/Answer/Reject
• Call waiting/Switch
• Call forwarding
• Speed Dial
• Intercom
• Anonymous Call (Hide Caller ID/Ban Anonymous call)
• 6-way Audio Conference
• Direct IP call without SIP proxy
• Emergency Call
• Caller ID Display
• Call logs
• Do-Not-Disturb (DND)/Timed DND
• PTT One-Touch Call
• Self-adaptive light-sensing screen off (during a call on the handset)

Audio

• Narrowband Codec: G.711A/U, G.726, G.723.1.G.729, G.729A, G.729B, G.729AB，iLBC
• Wideband Codec: G.722, Opus
• Acoustic Echo Cancellation (AEC)- maximum 96ms echo delay cancellation
• Voice Activity Detection（VAD）/ Comfort Noise Generation（CNG）/ Background Noise Estimation (BNE)
• • Packet Loss Concealment
• Dynamic adaptive jitter cache up to 300ms
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
• DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

Network

• Built-in Wi-Fi, support 802.11 a/b/g/n/ac/ax protocol: 2.4GHz IEEE 802.11 b/g/n/ax 5GHz IEEE 802. 11a/n/ac/ax
• Encryption：WPA /WPA2-PSK ，802. 1X EAP
• Built-in Bluetooth 5.0 module

Power Management

• Reminder when charging
• Full reminder
• Low battery prompt
• After abnormal shutdown, the charging will automaticallystar
• Real-time statistics/display of system power

Protocols

• RTP/RTCP/SRTP
• STUN
• DHCP
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Deployment and Maintenance

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PnP/TR-069
• Web management interface
• Web-based Packet-dump
• Configuration export/import
• Firmware upgrade
• Syslog

Physical Specifications

• Drop height: 1.8m
• Shell material: plastic shell, two-color injection molding
• Charging Base x1
• Belt Clip x1
• Rechargeable Battery x1 3000mAh
• DC input: 5V/2A
• Charging Methods: Charging base and Type-C Charging
• Headphone jack: Type-C Port
• Installation method: Belt Clip /Desktop
• Operating temperature: 0℃~ 45℃
• Storage temperature:-20℃~ 60℃
• Relative humidity:10~95%
• Product size:160*53*16mm
• Product weight:208g
• Certificates：CE/FCC/RoHS/SRRC
• Box size: 172*68*105mm
• Outer box size: 297*228*364mm (16PCS)
