Fibre Optic  8 core OM3 (GYXTW) OUTDOOR cable Specifications And Details

Overview

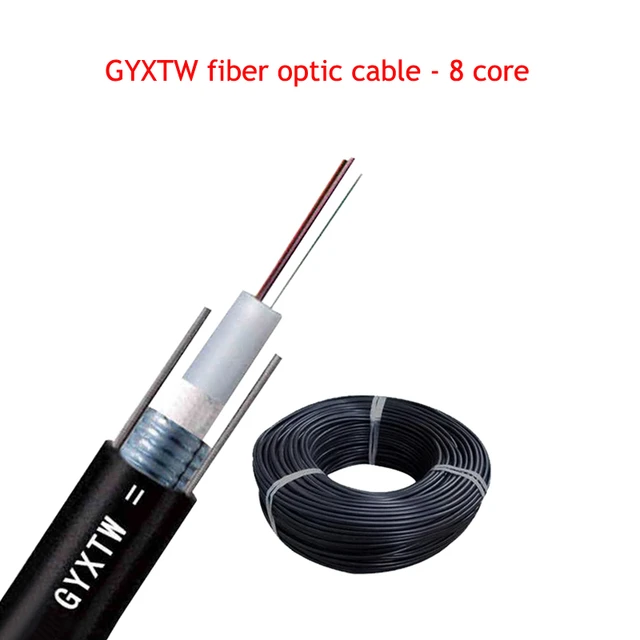

8 Core GYXTW Fiber Optic Cable Unitube Light-armored cable Aerial Duct Direct Burial two parallel steel wires 1.2mm strength members with a water-resistant filling compound Jelly. This type of fiber optic cable has been praised due to its exceptional performance in Long Distance Symmetric role. As a matter of fact, GYXTW fiber optic cable plays an important role in the telecommunication industry and it’s highly recommended by many technicians.

GYXTW fiber optic cable is commonly available from 2 fiber cores to 24 fiber cores. It has two types which includes; single mode GYXTW fiber optic cable type and multimode GYXTW fiber optic cable types. Fiber optic cable GYXTW, 2~24 fibers jelly filled and fiber contained central loose tube copolymer coated steel tape two parallel steel wires 1.2mm PE outer sheath, G652D SM or G655 fiber 1km~4km, pure wooden drum package

Features of Definition of 8 Core GYXTW Fiber Optic Cable

Low dispersion and attenuation

Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties

Double-jacket structure make cable have nice properties of moisture resistance and crush resistance

With small cable diameter, light cable weight, easily to lay

Operating Temperature : -40 ~ +60 ℃

Waterproofing layer providing strong water-resistance performance

Steel tape with PE outer sheathing and metallic strengthening member enhancing anti-crush and tensile property of cable

Up to 24 fiber cores

The loose tube is centrally situated with good excess length and minimizes the influence of lateral crush.

Double wire as strength member provides excellent strain performance.

Applications of 8 Core GYXTW Fiber Optic Cable

These central loose tube optical fiber ribbon cables are suitable for installation in aerial or duct environment for communication between bureaus, metropolitan network, access network and is especially suitable for the situation where high-density fibers is expected.

The GYXTW fiber optic cable is a fantastic type of fiber optic cable that has lead to significant change in the telecommunication industry. The research showed that, GYXTW fiber optic cable has some super features as compared to other types of fiber optic cable. Additionally, GYXTW fiber optic cable is widely available in the market and you can easily purchase one when need comes. Furthermore, its installation does not require technical experiences and therefore, you can install it for yourself.

Highlights

Model NO.: 8 Core GYXTW Fiber Optic Cable

Conductor Material: Fiber

Type: G652 or G655

Conductor Type: Stranded

Certification: CE, ISO

Apply for: Aerial/ Duct /Direct Burial

Cable Type: Sm or Mm

Material of Jacket: MDPE/HDPE

Model Name: Fiber Optic Cable

Delivery Time: 10 Days

Origin: China

Application: Fiber Optic Cable

Cover Material: PE

Wire Core Material: Steel

Fiber Count: 8 cores

Fiber Type: G652/G655

Fiber Optic Cable Tube: Central Loose Tube

Model No.: GYXTW

MOQ: 2 Drum

Transport Package: 4km Wooden Drum

HS Code: 85176229

Tech Specification

Cable Type	Fiber Count	Cable Diameter mm	Cable Weight Kg/km	Tensile Strength Long/Short Term  N	Crush Resistance Long/Short Term N/100m	Bending Radius Static/Dynamic mm
GYXTW-2～12	2～12	9.0	85	600/1000	500/1500	15D/30D
GYXTW-14～24	14～24	9.0	85	600/3000	1000/3000	15D/30D
GYXTW-2～12	2～12	10.0	105	1000/3000	1000/3000	15D/30D
GYXTW-14～24	14～24	10.0	105	1000/3000	1000/3000	15D/30D
GYXTW-26～36	26～36	14.0	190	1000/3000	1000/3000	15D/30D
GYXTW-38～48	38～48	15.0	216	1000/3000	1000/3000	15D/30D
