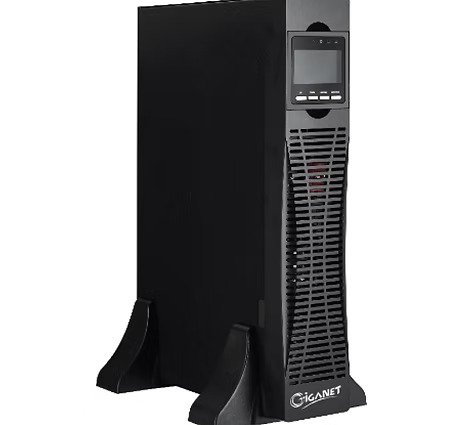

Giganet 10kVA/10kW 3-Phase Online Double Conversion UPS

Double conversion online design
Input power factor correction (PFC) technology, input power factor up to 0.99
Digital signal process (DSP) makes the system more stable and reliable
Parallel cabinet is not required, it can be paralleled directly; 10~30kVA can be paralleled by 4 sets, 40~50kVA by 6 sets
LBS synchronization (40~50kVA)
Battery pack can be common connection in parallel operation
30~50 pcs batteries are settable
Suitable for complete unbalanced load
Users can set the charging current, constant current, constant voltage and floating charging three-stage charging management automatic smooth switch
Output overload, output short circuit, inverter over temperature, battery under voltage warning and battery overcharge protection
Static electronic bypass switches
DC start function
Fan intelligent speed regulation design, prolong fan life, high efficiency and energy saving
EPO (Emergency Power Off) function
LED+LCD Display

Visit our store and enjoy:

Genuine, brand new, sealed stock
Price-match against authorized dealers
Installation & configuration services available
Expert advice on compatibility with your network

SKU: HB42761 Categories: Giganet Store Kenya, Giganet UPS Brand: Giganet

Description
Reviews (0)

Giganet 10kVA/10kW 3-Phase Online Double Conversion UPS

The Giganet 10kVA/10kW 3‑Phase Online Double Conversion UPS is designed to provide clean, stable, uninterrupted power. Because it is a true “online, double‑conversion” UPS, it continuously converts incoming AC to DC and back to AC, isolating connected equipment from irregularities in the mains supply. That means zero transfer time when switching to battery, and a stable AC output even when the grid voltage/frequency fluctuates.

Features

Double conversion online design

Input power factor correction (PFC) technology, input power factor up to 0.99

Digital signal process (DSP) makes the system more stable and reliable

Parallel cabinet is not required, it can be paralleled directly; 10~30kVA can be paralleled by 4 sets, 40~50kVA by 6 sets

LBS synchronization (40~50kVA)

Battery pack can be common connection in parallel operation

30~50 pcs batteries are settable

Suitable for complete unbalanced load

Users can set the charging current, constant current, constant voltage and floating charging three-stage charging management automatic smooth switch

Output overload, output short circuit, inverter over temperature, battery under voltage warning and battery overcharge protection

Static electronic bypass switches

DC start function.

Fan intelligent speed regulation design, prolong fan life, high efficiency and energy saving.

EPO (Emergency Power Off) function

LED+LCD Display

Specifications


Capacity		10kVA/10kW	15kVA/15kW	20kVA/20kW	25kVA/25kW	30kVA/30kW	40kVA/40kW	50kVA/50kW
INPUT

Nominal voltage		380/400/415Vac, (3Ph+N+PE)
Operating voltage range		138~485Vac
Operating frequency range		40Hz~70Hz
Power factor		≥0.99
Harmonic distortion (THDi)		≤3% Linear load
Bypass voltage range		Max.voltage:220V:+25% (Optional+10%,+15%,+20%) 230V:+20% (Optional+10%,+15%)240V:+15% (Optional+10%) Min.voltage:-45% (Optional-10%,-15%,-20%,-30%)
Frequency synchronize tracing range		±10%
Generator input		Support
OUTPUT
Output voltage		380/400/415Vac (3Ph+N+PE)
Voltage regulation		±1%
Power factor		1.0
Outputfrequency	Line Mode	±1%/±2%/±4%/±5%/±10% of the rated frequency (Optional)
	Bat. Mode	(50/60±0.1%)Hz
Crest factor		3:1
Harmonic distortion (THDv)		≤2% with linear load≤5% with non linear load					≤2% with linear load≤4% with non linear load
Overload		Load≤110%: last 60min,≤125%: last 10min,≤150%: last 1min
Efficiency
Eﬃciency		up to 95.5%
BATTERY
Battery voltage		Optional Voltage: ±180V/±192V/±204V/±216V/±228V/±240/±252/±264/±276/±288/±300Vdc (30/32/34/36/38/40/42/44/46/48/50pcs optional) 360Vdc~600Vdc (30~50pcs, 30pcs default, 36~50pcs no power derating;32~34pcs output power factor 0.9; 30pcs output power factor 0.8)
Charge Current(A)		18A Max.					20A Max.
SYSTEM FEATURES
Transfer time		Utility to Battery: 0ms; Utility to Bypass: 0ms
Alarm		overload, utility abnormal, UPS fault, battery low, etc.
Backfeed		Support
Protection		short circuit, overload, over temperature, battery low, fan fault alarm
Communication		USB, RS232, RS485, Parallel port, Dry contact port, REPO port, Backfeed port, SNMP card (Optional), Battery temperature sensor (Optional)					REPO port, LBS port, Dry contact port (Backfeed/Battery breaker driver), SNMP card (Optional), Relay card (Optional), Battery temperature sensor (Optional)
ENVIRONMENTAL
Operating temperature		0℃～40℃
Storage temperature		-25℃～55℃(No battery)
Humidity range		0～95% (Non condensing)
Altitude		<1500m, derating required when>1500m
Noise level		<55dB					<56dB	<58dB
PHYSICAL
Dimension W×D×H (mm)		440×670×130 (3U)					440×800×175 (4U)
Net weight (kg)		25	27		28		45	48
STANDARDS
Safety		IEC/EN 62040-1, IEC/EN 62477-1
EMC		IEC/EN 62040-2 (IEC 61000-2-2, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11)
