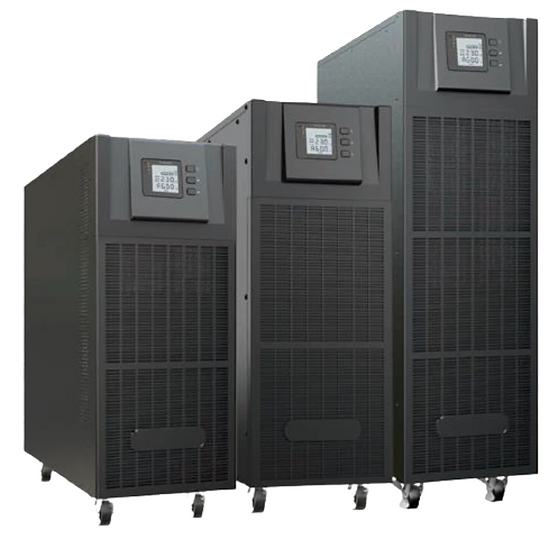

Giganet 20kVA/18kW 3-Phase Online Double Conversion UPS
-
Double Conversion Online Design
-
High input power factor, it can be up to 0.99
-
3-level inverter topology, the efficiency can be up to 95.5%
-
Support parallel expanded operation: maximum is 8 units
-
Support sharing batteries for the UPS in parallel
-
Batteries number of each group can be selected from 30 pieces to 50 pieces
-
Large charging current can meet the requirement of long time backup
-
Output power factor is 1.0, UPS can supply power to 100% unbalance load
-
High adaptability for load, it can connect full inductive load or capacitive load
-
Power Walk In function, it can reduce the start current impact to system, and it can reduce the capacity of generator
-
LBS function can realize 2 independent UPS system work in synchronization, and it enhances the reliability of the system
-
Support USB, RS485, RS232, SNMP, dry contact card
Visit our store and enjoy:
- Genuine, brand new, sealed stock
- Price-match against authorized dealers
- Installation & configuration services available
- Expert advice on compatibility with your network
Giganet 20kVA/18kW 3-Phase Online Double Conversion UPS
The GIGANET 20 kVA / 18 kW 3-Phase Online Double-Conversion UPS provides heavy-duty power protection. It safeguards critical infrastructure, data centers, and telecom facilities. It also secures industrial environments and enterprise-level installations. Its design ensures continuous, clean, and highly reliable power, safeguarding your equipment against grid instability and power disruptions.
Features |
| Wide input voltage range 138-485Vac (Phase voltage 80-280Vac), no derating when input voltage ≥ 305Vac |
| High input power factor, it can be up to 0.99 |
| 3-level inverter topology, the efficiency can be up to 95.5% |
| Support parallel expanded operation: maximum is 8 units |
| Support sharing batteries for the UPS in parallel |
| Batteries number of each group can be selected from 30 pieces to 50 pieces |
| Large charging current can meet the requirement of long time backup |
| Output power factor is 1.0, UPS can supply power to 100% unbalance load |
| High adaptability for load, it can connect full inductive load or capacitive load |
| Power Walk In function, it can reduce the start current impact to system, and it can reduce the capacity of generator |
| LBS function can realize 2 independent UPS system work in synchronization, and it enhances the reliability of the system |
| Support USB, RS485, RS232, SNMP, dry contact card |
