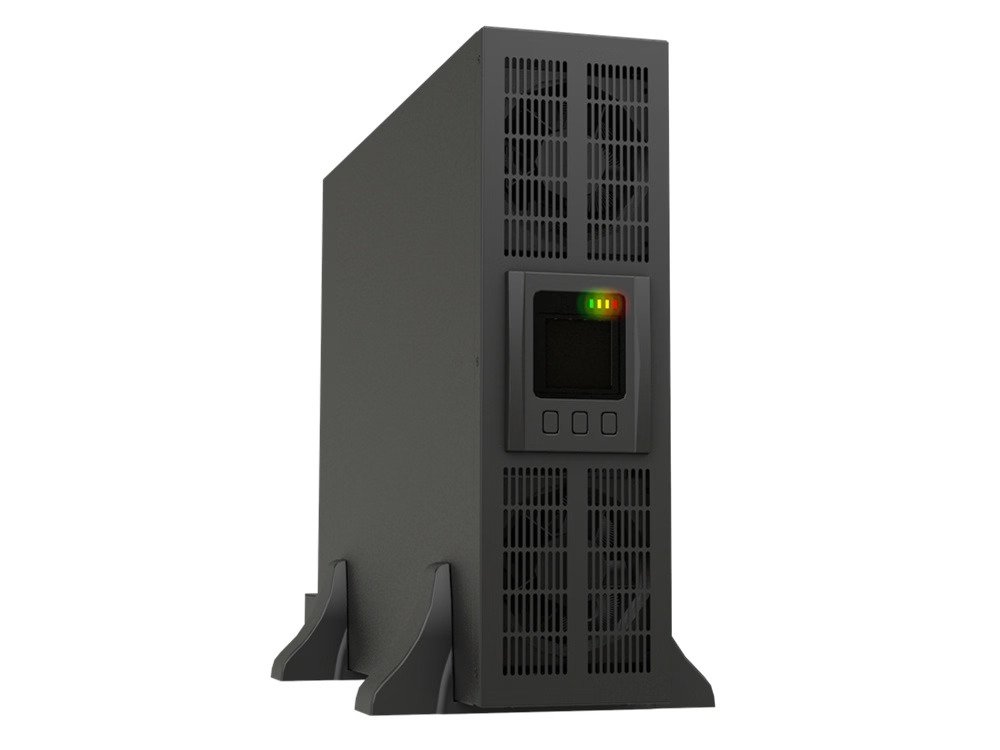

Giganet 20kVA/20kW 3-Phase Online Double Conversion UPS

Capacity VA/Watts: 20kVA
Power Factor: ≥0.99
Nominal Voltage: 380/400/415Vac (3Ph+N+PE)
Operating Voltage Range: 138~485Vac(Full load); 208~478Vac(50% load)
Crest Factor: 3:1

Visit our store and enjoy:

Genuine, brand new, sealed stock
Price-match against authorized dealers
Installation & configuration services available
Expert advice on compatibility with your network

SKU: HB42769 Categories: Giganet Store Kenya, Giganet UPS Brand: Giganet

Description
Reviews (0)

Giganet 20kVA/20kW 3-Phase Online Double Conversion UPS

The Giganet 20 kVA / 20 kW 3-Phase Online Double Conversion UPS is a high-capacity, enterprise-grade power protection system designed for mission-critical applications. It provides uninterrupted, stable, and clean power.

Filtering out mains instability (surges, sags, brownouts or outages) — to safeguard servers, networking gear, telecom systems, industrial equipment, or any heavy/multi-phase load. Built for commercial, data center, industrial, or business environments, it offers reliability, robustness, and scalability for demanding power-sensitive setups.

Features

Double conversion online design

Input power factor correction (PFC) technology, input power factor up to 0.99

Digital signal process (DSP) makes the system more stable and reliable

Parallel cabinet is not required, it can be paralleled directly; 10~30kVA can be paralleled by 4 sets, 40~50kVA by 6 sets

LBS synchronization (40~50kVA)

Battery pack can be common connection in parallel operation

30~50 pcs batteries are settable

Suitable for complete unbalanced load

Users can set the charging current, constant current, constant voltage and floating charging three-stage charging management automatic smooth switch

Output overload, output short circuit, inverter over temperature, battery under voltage warning and battery overcharge protection

Static electronic bypass switches

DC start function.

Fan intelligent speed regulation design, prolong fan life, high efficiency and energy saving.

EPO (Emergency Power Off) function

LED+LCD Display

Specification


Capacity		10kVA/10kW	15kVA/15kW	20kVA/20kW	25kVA/25kW	30kVA/30kW	40kVA/40kW	50kVA/50kW
INPUT

Nominal voltage		380/400/415Vac, (3Ph+N+PE)
Operating voltage range		138~485Vac
Operating frequency range		40Hz~70Hz
Power factor		≥0.99
Harmonic distortion (THDi)		≤3% Linear load
Bypass voltage range		Max.voltage:220V:+25% (Optional+10%,+15%,+20%) 230V:+20% (Optional+10%,+15%)240V:+15% (Optional+10%) Min.voltage:-45% (Optional-10%,-15%,-20%,-30%)
Frequency synchronize tracing range		±10%
Generator input		Support
OUTPUT
Output voltage		380/400/415Vac (3Ph+N+PE)
Voltage regulation		±1%
Power factor		1.0
Outputfrequency	Line Mode	±1%/±2%/±4%/±5%/±10% of the rated frequency (Optional)
	Bat. Mode	(50/60±0.1%)Hz
Crest factor		3:1
Harmonic distortion (THDv)		≤2% with linear load≤5% with non linear load					≤2% with linear load≤4% with non linear load
Overload		Load≤110%: last 60min,≤125%: last 10min,≤150%: last 1min
Efficiency
Eﬃciency		up to 95.5%
BATTERY
Battery voltage		Optional Voltage: ±180V/±192V/±204V/±216V/±228V/±240/±252/±264/±276/±288/±300Vdc (30/32/34/36/38/40/42/44/46/48/50pcs optional) 360Vdc~600Vdc (30~50pcs, 30pcs default, 36~50pcs no power derating;32~34pcs output power factor 0.9; 30pcs output power factor 0.8)
Charge Current(A)		18A Max.					20A Max.
SYSTEM FEATURES
Transfer time		Utility to Battery: 0ms; Utility to Bypass: 0ms
Alarm		overload, utility abnormal, UPS fault, battery low, etc.
Backfeed		Support
Protection		short circuit, overload, over temperature, battery low, fan fault alarm
Communication		USB, RS232, RS485, Parallel port, Dry contact port, REPO port, Backfeed port, SNMP card (Optional), Battery temperature sensor (Optional)					REPO port, LBS port, Dry contact port (Backfeed/Battery breaker driver), SNMP card (Optional), Relay card (Optional), Battery temperature sensor (Optional)
ENVIRONMENTAL
Operating temperature		0℃～40℃
Storage temperature		-25℃～55℃(No battery)
Humidity range		0～95% (Non condensing)
Altitude		<1500m, derating required when>1500m
Noise level		<55dB					<56dB	<58dB
PHYSICAL
Dimension W×D×H (mm)		440×670×130 (3U)					440×800×175 (4U)
Net weight (kg)		25	27		28		45	48
STANDARDS
Safety		IEC/EN 62040-1, IEC/EN 62477-1
EMC		IEC/EN 62040-2 (IEC 61000-2-2, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11)
