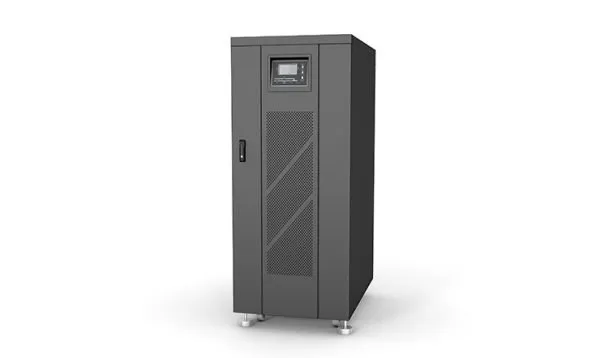

Giganet GN-UID(10) 10kVA / 9kW Three Phase Online UPS

Online double conversion
Full DSP control
High power factor
Wide input adaptability
Optimized battery management
N+X parallel redundancy
Strong overload capability
Power walk in
Generator mode
Multi-protection
EPO function
User-friendly network management

Visit our store and enjoy:

Genuine, brand new, sealed stock
Price-match against authorized dealers
Installation & configuration services available
Expert advice on compatibility with your network

SKU: HB42804 Categories: Giganet Store Kenya, Giganet UPS Brand: Giganet

Description
Reviews (0)

Giganet GN-UID(10) 10kVA / 9kW Three Phase Online UPS

The GIGANET GN-UID(10) is a robust 10 kVA / 9 kW three-phase online UPS designed to deliver clean, stable, and uninterrupted power — suitable for small to medium-scale enterprise systems, network infrastructure, and sensitive electronic equipment. Built with true double-conversion (online) technology, this UPS continuously conditions incoming power and provides a pure sine wave output, protecting your devices from blackouts, surges, spikes, brownouts, and other fluctuations common in unstable grid conditions.

With three-phase input and output, the GN-UID(10) ensures balanced and efficient power distribution — making it a great fit for server rooms, branch offices, telecom closets, networking infrastructure, light industrial setups, and other environments where reliable three-phase power is important. It offers sufficient capacity to support a broad range of equipment while remaining cost effective and space efficient compared to larger industrial UPS systems.

Specifications

Model	GN-UID(10)	GN-UID(20)	GN-UID(30)	GN-UID(40)	GN-UID(60)	GN-UID(80)
Capacity VA/Watts	10kVA / 9kW	20kVA / 18kW	30kVA / 27kW	40kVA / 36kW	60kVA / 54kW	80kVA/ 72kW
INPUT
Operating Voltage Range	380/400/415Vac (-25% / +20% ), (3Ph+N+PE)
Operating Frequency Range	50/60Hz (±5%)
Power Factor	＞0.97 (with filter)
OUTPUT
Output Voltage	380/400/415Vac (±1%)
Output frequency	50/60Hz (±0.05%)
Crest factor	3:1(max)
Efficiency	≥88%	≥89%		>90%
Harmonic Distortion (THDv)	＜3% with linear load
BYPASS
Rated Voltage	380/400/415Vac
Rated frequency	50/60Hz
Voltage Protection Range	Upper limit: +20% (+10%,+15%,+20% adjustable)Lower limit: -40% (-10%, -20%, -30%, -40% adjustable)
Frequency Protection Range	±10% (±2.5%, ±5%,±10%, ±20% adjustable)
BATTERY
Battery voltage	384Vdc ( 360~384Vdc )

Model	GN-UID(10)	GN-UID(20)	GN-UID(30)	GN-UID(40)	GN-UID(60)	GN-UID(80)
Capacity VA/Watts	10kVA / 9kW	20kVA / 18kW	30kVA / 27kW	40kVA / 36kW	60kVA / 54kW	80kVA/ 72kW
System Features
Transfer time	0ms (Line mode →Battery mode)
Overload	≤110%/60min ,≤125%/10min ,≤150%/1min，to Bypass
LED display	Input, Inverter, Bypass, Battery, Output, Status
LCD display	I/O voltage, frequency, power, power factor, battery voltage, current, battery status, load percentage, UPS status, history record
Communication Interface	Dry contact, RS232, RS485, SNMP card (Optional)
Optional	Harmonic filter, SNMP adapter, LBS cables, battery temperature sensor,Bypass current-sharing inductor
ENVIRONMENT
Operating Temperature	0℃～40℃
StorageTemperature	-25～55℃
Humidity range	0～95% (non-condensing)
Altitude	<1500m
Noise level	<60dB			<65dB
PHYSICAL
Dimension W×D×H (mm)	350×650×1050		430×830×1100		720×690×1600
Net Weight (kg)	148	163	230	255	386	426
Shipping Weight (kg)	168	183	263	288	432	472
STANDARDS
Safety	IEC/EN62040-1;IEC/EN60950-1
Performance	IEC 62040-3
EMC	IEC/EN62040-2;IEC61000-4-2;IEC61000-4-3;IEC61000-4-4; IEC61000-4-5;IEC61000-4-6;IEC61000-4-8；IEC 61000-4-11;
