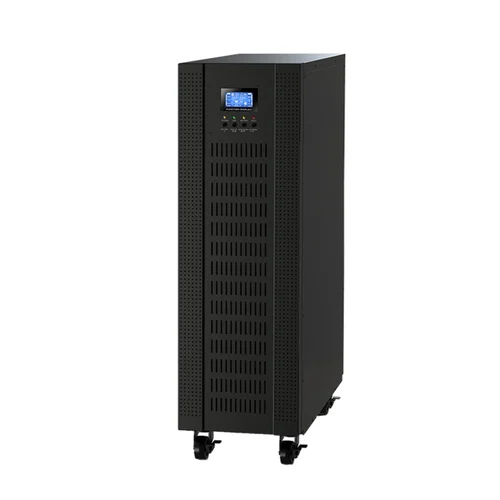

Giganet GN-UID(30) 30kVA / 27kW Three Phase Online UPS
-
Online double conversion
-
Full DSP control
-
High power factor
-
Wide input adaptability
-
Optimized battery management
-
N+X parallel redundancy
-
Strong overload capability
-
Power walk in
-
Generator mode
-
Multi-protection
-
EPO function
-
User-friendly network management
Visit our store and enjoy:
- Genuine, brand new, sealed stock
- Price-match against authorized dealers
- Installation & configuration services available
- Expert advice on compatibility with your network
Giganet GN-UID(30) 30kVA / 27kW Three Phase Online UPS
The GIGANET GN-UID(30) is a heavy-duty, enterprise-grade 30 kVA / 27 kW three-phase online UPS engineered to deliver clean, stable, and uninterrupted power to large-scale installations and mission-critical infrastructures. Using true double-conversion (online) technology, GN-UID(30) continuously conditions incoming power and outputs a pure sine-wave supply — protecting your equipment from blackouts, surges, brownouts, spikes, and grid fluctuations.
An intuitive monitoring and control interface enables real-time oversight of system status, load levels, battery health, and runtime estimates. For extended backup needs, the UPS is compatible with external battery modules, allowing scalability in runtime to match your requirements. Built from high-quality components and engineered for continuous 24/7 operation, GN-UID(30) offers the robustness needed for critical and high-uptime use.
Specifications
| Model | GN-UID(10) | GN-UID(20) | GN-UID(30) | GN-UID(40) | GN-UID(60) | GN-UID(80) |
| Capacity VA/Watts | 10kVA / 9kW | 20kVA / 18kW | 30kVA / 27kW | 40kVA / 36kW | 60kVA / 54kW | 80kVA/ 72kW |
| INPUT | ||||||
| Operating Voltage Range | 380/400/415Vac (-25% / +20% ), (3Ph+N+PE) | |||||
| Operating Frequency Range | 50/60Hz (±5%) | |||||
| Power Factor | ＞0.97 (with filter) | |||||
| OUTPUT | ||||||
| Output Voltage | 380/400/415Vac (±1%) | |||||
| Output frequency | 50/60Hz (±0.05%) | |||||
| Crest factor | 3:1(max) | |||||
| Efficiency | ≥88% | ≥89% | >90% | |||
| Harmonic Distortion (THDv) | ＜3% with linear load | |||||
| BYPASS | ||||||
| Rated Voltage | 380/400/415Vac | |||||
| Rated frequency | 50/60Hz | |||||
| Voltage Protection Range | Upper limit: +20% (+10%,+15%,+20% adjustable)Lower limit: -40% (-10%, -20%, -30%, -40% adjustable) | |||||
| Frequency Protection Range | ±10% (±2.5%, ±5%,±10%, ±20% adjustable) | |||||
| BATTERY | ||||||
| Battery voltage | 384Vdc ( 360~384Vdc ) | |||||
