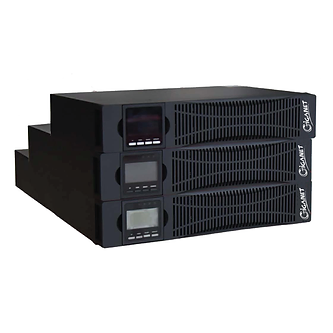

Giganet GN-UPS-1KVAS-RT 1kVA Smart Online UPS

True double-conversion
The rack-mounted and floor-standing tower can be convertible
Patented Mimic LCD of which content can be rotated according to the type of deployment
Digital control guarantees high reliability
Output receptacle control for non-critical load shedding capability
ECO mode operation for energy saving
Emergency power-off function(EPO)
Generator compatible
Communications:RS-232,USB,SNMP card(Optional), Relay card (Optional)
The bypass can be used when UPS is off(Set in LCD)
Cold start

Visit our store and enjoy:

Genuine, brand new, sealed stock
Price-match against authorized dealers
Installation & configuration services available
Expert advice on compatibility with your network

SKU: HB42825 Categories: Giganet Store Kenya, Giganet UPS Brand: Giganet

Description
Reviews (0)

Giganet GN-UPS-1KVAS-RT 1kVA Smart Online UPS

The GIGANET GN-UPS-1KVAS-RT is a compact, smart single-phase UPS designed to provide reliable backup and clean power for small devices, workstations, and modest office setups. With a 1 kVA rating, this UPS is ideal for protecting equipment like computers, routers, modems, networking gear, small servers, and critical peripherals — especially in environments with unstable or unreliable power supply.

Featuring online UPS technology, the unit delivers a stable, pure-sine-wave output — ensuring connected devices receive consistent, high-quality power without interruption. The “smart” designation implies built-in intelligent monitoring and control, allowing you to track battery status, load level, and system health easily (where supported), which helps manage power efficiently and avoid unexpected shutdowns.

Features

Includes SNMP Card and Rails

Online Double Conversion

Wide Input Voltage Range (110~300 Vac)

Input Power Factor 1 ( With PFC)

Output Power Factor 1.0

Rack Mounted and floor standing tower can be converted

Maximum Charging Current 12A (Long Run Unit)

Charging Current can be set by LCD (Long Run Unit)

50Hz/60Hz Frequency Converter Mode

Emergency Power Off Function (EPO)

ECO Mode Opertation for Energy Saving

Generator Compatible

SMNP+USB+RS232 Multiple Commincations

Smart Charging Design for Optimal Performance

Support Lithium Battery and BMS

Specifications

Model			GN-UPS-1KVAS-RT			GN-UPS-2KVAS-RT			GN-UPS-3KVAS-RT
Capacity VA/Watts			1000VA/1000W			2000VA/2000W			3000VA/3000W
Phase			Single Phase With Ground
INPUT
Nominal Voltage			200/208/220/230/240 Vac
Operating Voltage Range	Low Voltage of Transfering to Bypass		160Vac ± 5%@100%-80% load 140Vac ± 5%@ 80%-70% load 120Vac ± 5%@70%-60% load 100Vac ± 5%@ 60%-0% load(Ambient Temp <35°C)
	Low Threashold Voltage of Recov- ering from Bypass		175Vac ± 5%@100%-80% load 155Vac ± 5%@ 80%-70% load 135Vac ± 5%@70%-60% load 125Vac ± 5%@ 60%-0% load(Ambient Temp <35°C)
	High Voltage of Transfering to Bypass		300Vac ± 5%
	High Threashold Voltage of Recov- ering from Bypass		290Vac ± 5%
Input Voltage Range			55-150Vac or 110-300Vac@60% load. 80-15-45 Vac or 160-300Vac@100%
Operating Frequency Range			40-70Hz
Power Factor			1
Genarator Input			Support
OUTPUT
Output Voltage			200/208/220/230/240Vac
Power Factor			1.0
Voltage Regulation			± 5%
Frequency		Line Mode (Synchronized Range)	47-53Hz or 53-67Hz
		Bat.Mode	(50/60 ±0.1)Hz
Crest Factor			3:1
Harmonic Distortion			≤2% THD (Linear Load)
			≤2% THD (Non-Linear Load)
Waveform			Pure Sinewave
Transfer Time		Ac Mode <- > Bat.Mode	Zero
		Inverter <-> Bypass	4ms(Typically)
Efficiency
AC-Mode			88%			92%			92%
Battery Mode			85%			88%			90%
BATTERY
Battery Type			12V9AH	Depends on Capacity of External Batteries		12V9AH	Depends on Capacity of External Batteries		12V9AH	Depends on Capacity of External Batteries
Numbers			2	2	3	4	4	6	6	6	8
Backup Time			Depends on Capacity of External Batteries
Typical Recharging Time (Standard Time)			4 Hours Recover 90% Capacity
Charging Voltage			24.7VDC ±1%	24.7VDC ±1%	41.1VDC± 1%	54.7VDC ±1%	54.7VDC ±1%	82.1VDC ±1%	82.1VDC ±1%	82.1VDC ±1%	109.4VDC± 1%
Charging Current Max			1A or 2A	12A Max Can be Set on LCD		1A or 2A	12A Max Can be Set on LCD		1A or 2A	12A Max Can be Set on LCD
SYSTEM FEATURES
Line Mode Battery Mode		Ambient Temp <35°C	105%-110% : UPS Transfer to Bypass after 10 Minutes When the utility is in Normal 110%-130% : UPS Transfer to Bypass after 1 Minute When the utility is in Normal 130%-150%: UPS Transfer to Bypass after 5 Seconds When the utility is in Normal>150%: UPS Transfer to Bypass Immediately When the utility is in Normal
		<35°CAmbient Temp <40°C	105%-110%: UPS Transfer to Bypass after 5 Minutes When the utility is in Normal 110%-130% : UPS Transfer to Bypass after 1 Minute When the utility is in Normal>130% : UPS Transfer to Bypass after Immediately When the utility is in Normal
