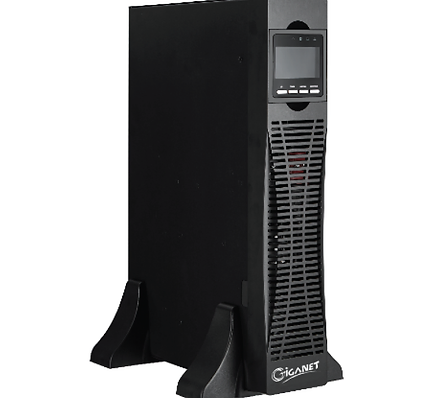

Giganet GN-UPS-20KVAS-RT Single Phase (VRLA) UPS

LCD support Rack/Tower convertible design
N+X parallel redundancy,support maximum 4 units in parallel
Online double conversion with DSP control
Input crrent harmonic:<3%
Wide input voltage range:208~478Vac
Wide input frequency range 40~70Hz
Optimization battery group,the quantity of battery:30~50pcs is settable
Maximum charging current up to 20A (Settable)
Dual input source
Support 3/3 and 3/1 and 1/1 operation
Generator compatible
ECO mode operation for energy saving
Cold start
50/60Hz Frequency converter mode
The output can meet 100% unbalanced load
Multiple protection function:short-circuit,overload,overheat, battery
overcharge and overdischarge,output low voltage and fan fault alarm
RS232, RS485, Parallel, Intelligent Slot (SNMP card/ Relay card (Optional)),
BMS (Optional),EPO port,Output port,
Multiple protection function: short-circuit,overload,overheat, battery
overcharge and overdischarge, output low voltage and fan fault alarm
PDU with maintenance bypass switch (Optional)
IEC 62133 (Cell)/IEC 62619 (Pack)/UN 38.3 (Transportation) certificate

Visit our store and enjoy:

Genuine, brand new, sealed stock
Price-match against authorized dealers
Installation & configuration services available
Expert advice on compatibility with your network

SKU: HB42829 Categories: Giganet Store Kenya, Giganet UPS Brand: Giganet

Description
Reviews (0)

Giganet GN-UPS-20KVAS-RT Single Phase (VRLA) UPS

The GIGANET GN-UPS-20KVAS-RT is a robust single-phase UPS designed for stable, dependable backup power in offices, small to medium‑size server rooms, and network or telecom closets. With a 20 kVA capacity, this UPS provides plenty of headroom to support multiple devices — from workstations and desktops to servers, networking gear, modems, and other essential electronics — during power disruptions.

Using VRLA (Valve‑Regulated Lead‑Acid) battery technology, the GN-UPS-20KVAS-RT delivers maintenance‑free, reliable backup power. It outputs clean and stable electricity that protects your equipment from outages, surges, brownouts, and other grid instabilities. The UPS ensures that sensitive gear remains powered long enough for safe shutdowns or continued operations during short outages.

Features

LCD support Rack/Tower convertible design

N+X parallel redundancy,support maximum 4 units in parallel

Online double conversion with DSP control

Input crrent harmonic:<3%

Wide input voltage range:208~478Vac

Wide input frequency range 40~70Hz

Optimization battery group,the quantity of battery:30~50pcs is settable

Maximum charging current up to 20A (Settable)

Dual input source

Support 3/3 and 3/1 and 1/1 operation

Generator compatible

ECO mode operation for energy saving

Cold start

50/60Hz Frequency converter mode

The output can meet 100% unbalanced load

Multiple protection function:short-circuit,overload,overheat, battery overcharge and overdischarge,output low voltage and fan fault alarm

RS232, RS485, Parallel, Intelligent Slot (SNMP card/ Relay card (Option- al)),BMS (Optional),EPO port,Output port,

Multiple protection function: short-circuit,overload,overheat, battery overcharge and overdischarge, output low voltage and fan fault alarm

PDU with maintenance bypass switch (Optional)

IEC 62133 (Cell)/IEC 62619 (Pack)/UN 38.3 (Transportation) certificate

Specifications

Model			GN-UPS-15KVAS-RT	GN-UPS-20KVAS-RT
Capacity VA/Watts			15000VA/15000WA	20000VA/20000WA
INPUT
Nominal voltage			220/230/240Vac,(L+N+PE)
Operating voltage range			208~478Vac
Operating frequency range			40~70Hz
Power factor			≥0.99
Harmonic distortion (THDi)			3% (100% non-linear load)
Bypass voltage range			Max. voltage:220V: +25%(optional +10%,+15%,+20% ) ; 230V: +20%(optional +10%,+15% ) ;240V: +15%(optional +10%) Min. voltage: -45% (optional -20%,-30%)
Bypass Frequency range			Frequency protection range: ±10%
Generator input			Support
OUTPUT
Output Voltage			220/230/240Vac,(L+N+PE)
Voltage regulation			1.0
Power factor			±1%
Output frequency	Line mode		±1%/±2%/±4%/±5%/±10% of the rated frequency(optional)
	Bat. mode		(50/60±0.2%)Hz
Crest factor			3:1
Harmonic Distortion (THDv)			≤2% Linear load≤5% Non linear load
Effeciency			UP to 94.5%	UP to 95.0%
BATTERY
Battery Voltage			±180/192/204/216/228/240/252/264/276/288/300Vdc(30/32/34/36/38/40/42/44/46/48/50pcs optional)
(charge current can be set according to battery capacity installed)			Max. current 18A	Max. current 20A
SYSTEM FEATURES
Overload		Line Mode	Load≤110%: last 60min, ≤125%: last 10min, ≤150%: last 1min, ≥150% turn to bypass mode immediately
		Bat. Mode	Load≤110%: last 10min, ≤125%: last 1min, ≤150%: last 5S, ≥150% shut down UPS immediately
		Bypass Mode	Breaker( Load < 125%, long-term operation)
Short circuit			Hold whole system
Communication interface			RS232, RS485, Parallel, Intelligent Slot(SNMP card/ Relay card(optional)),
BMS (optional),EPO port, Output port, MAINTAIN-AUXSWS
Dimension W×D×H			443×131(3U)x580 mm
Net weight			31kg	32kg
ENVIRONMENT
Operating temperature			0℃～40℃
Storage temperature			-25℃～55℃
Humidity range			0～95%RH (Non condensing)
Altitude			<1500m
Noise level			＜55dB	＜58dB
STANDARDS
Safety			IEC/EN62040-1,IEC/EN60950-1
EMC			IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4,IEC61000-4- 5,IEC61000-4-6,IEC61000-4-8
