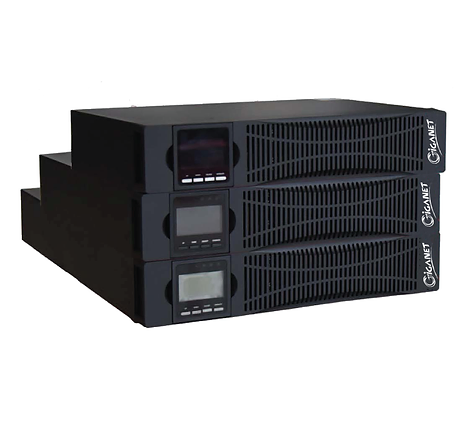

Giganet GN-UPS-3KVAS-RT 3kVA Smart Online UPS
The GIGANET GN-UPS-3KVAS-RT is a compact yet powerful single-phase UPS built to deliver clean, stable and reliable power for small-to-medium sized installations — ideal for home offices, small businesses, or network closets. With a 3 kVA rating, this UPS can support devices such as desktop computers, routers, modems, small servers, networking gear, and other essential electronics, especially where stable power is critical.
Specifications
| Model | GN-UPS-1KVAS-RT | GN-UPS-2KVAS-RT | GN-UPS-3KVAS-RT | ||||||||
| Capacity VA/Watts | 1000VA/1000W | 2000VA/2000W | 3000VA/3000W | ||||||||
| Phase | Single Phase With Ground | ||||||||||
| INPUT | |||||||||||
| Nominal Voltage | 200/208/220/230/240 Vac | ||||||||||
|
Operating Voltage Range |
Low Voltage of Transfering to Bypass | 160Vac ± 5%@100%-80% load 140Vac ± 5%@ 80%-70% load 120Vac ± 5%@70%-60% load 100Vac ± 5%@ 60%-0% load(Ambient Temp <35°C) | |||||||||
| Low Threashold Voltage of Recov- ering from Bypass | 175Vac ± 5%@100%-80% load 155Vac ± 5%@ 80%-70% load 135Vac ± 5%@70%-60% load 125Vac ± 5%@ 60%-0% load(Ambient Temp <35°C) | ||||||||||
| High Voltage of Transfering to Bypass | 300Vac ± 5% | ||||||||||
| High Threashold Voltage of Recov- ering from Bypass | 290Vac ± 5% | ||||||||||
| Input Voltage Range | 55-150Vac or 110-300Vac@60% load. 80-15-45 Vac or 160-300Vac@100% | ||||||||||
| Operating Frequency Range | 40-70Hz | ||||||||||
| Power Factor | 1 | ||||||||||
| Genarator Input | Support | ||||||||||
| OUTPUT | |||||||||||
| Output Voltage | 200/208/220/230/240Vac | ||||||||||
| Power Factor | 1.0 | ||||||||||
| Voltage Regulation | ± 5% | ||||||||||
|
Frequency |
Line Mode (Synchronized Range) | 47-53Hz or 53-67Hz | |||||||||
| Bat.Mode | (50/60 ±0.1)Hz | ||||||||||
| Crest Factor | 3:1 | ||||||||||
| Harmonic Distortion | ≤2% THD (Linear Load) | ||||||||||
| ≤2% THD (Non-Linear Load) | |||||||||||
| Waveform | Pure Sinewave | ||||||||||
| Transfer Time | Ac Mode <- > Bat.Mode | Zero | |||||||||
| Inverter <-> Bypass | 4ms(Typically) | ||||||||||
Efficiency |
|||||||||||
| AC-Mode | 88% | 92% | 92% | ||||||||
| Battery Mode | 85% | 88% | 90% | ||||||||
| BATTERY | |||||||||||
| Battery Type | 12V9AH | Depends on Capacity of External Batteries | 12V9AH | Depends on Capacity of External Batteries | 12V9AH | Depends on Capacity of External Batteries | |||||
| Numbers | 2 | 2 | 3 | 4 | 4 | 6 | 6 | 6 | 8 | ||
| Backup Time | Depends on Capacity of External Batteries | ||||||||||
| Typical Recharging Time (Standard Time) | 4 Hours Recover 90% Capacity | ||||||||||
| Charging Voltage | 24.7VDC ±1% | 24.7VDC ±1% | 41.1VDC± 1% | 54.7VDC ±1% | 54.7VDC ±1% | 82.1VDC ±1% | 82.1VDC ±1% | 82.1VDC ±1% | 109.4VDC± 1% | ||
| Charging Current Max | 1A or 2A | 12A Max Can be Set on LCD | 1A or 2A | 12A Max Can be Set on LCD | 1A or 2A | 12A Max Can be Set on LCD | |||||
| SYSTEM FEATURES | |||||||||||
|
Line Mode Battery Mode |
Ambient Temp
<35°C |
105%-110% : UPS Transfer to Bypass after 10 Minutes When the utility is in Normal 110%-130% : UPS Transfer to Bypass after 1 Minute When the utility is in Normal 130%-150%: UPS Transfer to Bypass after 5 Seconds When the utility is in Normal>150%: UPS Transfer to Bypass Immediately When the utility is in Normal | |||||||||
| <35°CAmbient Temp
<40°C |
105%-110%: UPS Transfer to Bypass after 5 Minutes When the utility is in Normal 110%-130% : UPS Transfer to Bypass after 1 Minute When the utility is in Normal>130% : UPS Transfer to Bypass after Immediately When the utility is in Normal | ||||||||||
