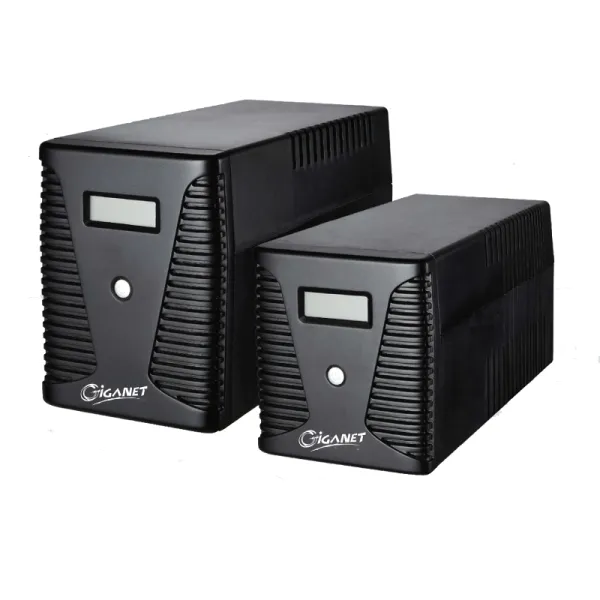

Giganet GN-UPS-LI-1200VA Line Interactive 1200VA UPS

Capacity VA/Watts: 1200 / 720
Voltage: 220/230/240Vac
Voltage range: 140~300Vac
Frequency Range 50/60Hz (auto sensing)
AC Voltage Regulation(Batt. Mode): ±10%
Frequency Range (Batt. Mode): 50/60Hz ±1 Hz
Transfer Time Typical: 4-8ms, 13ms Max.
Waveform (Batt. Mode): Simulated Sinewave
Dimensions WxDxH (mm): 314*130*175
Weight (Kgs): 7.8

Visit our store and enjoy:

Genuine, brand new, sealed stock
Price-match against authorized dealers
Installation & configuration services available
Expert advice on compatibility with your network

SKU: HB42845 Categories: Giganet Store Kenya, Giganet UPS Brand: Giganet

Description
Reviews (0)

Giganet GN-UPS-LI-1200VA Line Interactive 1200VA UPS

The GIGANET GN-UPS-LI-1200VA is a compact, cost-effective line‑interactive UPS designed to deliver reliable backup power and voltage regulation for small offices, home offices, network closets, and light‑duty IT setups. With a 1200 VA capacity, this UPS is ideal for protecting devices such as desktop computers, routers, modems, small servers, networking gear, and other essential electronics — especially where power fluctuations or occasional outages are common.

Features

Line Interactive UPS with simulated sinewave output

Excellent microprocessor control guarantees high reliability(Internal self-diagnostic technology)

Boost and buck AVR for voltage stabilization (wide input range with two boost and one buck control)

Auto restart while AC is recovering

Cold start function

Off-mode charging

Fast intelligent battery recharge function

Generator compatible

Offering LED and LCD panels for selections

Easy installation and operation with compact size

Ideally applicable for PC, Workstations, TVs, POS devices etc.

Optional USB/RS232 communication port and RJ11/RJ45 protection

Specifications

Model	GN-UPS-LI-650VA	GN-UPS-LI-850VA	GN-UPS-LI-1000VA	GN-UPS-LI-1200VA
Capacity VA/Watts	650 / 360	850 / 480	1000 / 600	1200 / 720
INPUT
Voltage		220/230/240Vac
Voltage range		140~300Vac
Frequency Range		50/60Hz (auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)	±10%
Frequency Range (Batt. Mode)	50/60Hz ±1 Hz
Transfer Time	Typical 4-8ms, 13ms Max.
Waveform (Batt. Mode)	Simulated Sinewave
BATTERY
Battery Voltage	12Vdc		24Vdc
Battery Type & Number	12 V /7Ah x 1	12 V /9Ah x 1	12 V /7Ah x 2	12 V /9Ah x 2
Max charger current (A)	4~6 hours recover to 90% capacity		6~8 hours recover to 90% capacity
INDICATORS
LED Display (LED version)	AC Mode, Battery Mode, Overload, Fault
LCD Display (LCD version)	AC Mode, Battery Mode, Load Level, Battery Level, Input Voltage, Output Voltage, Overload, Fault, and Battery Low
PROTECTION
Full Protection	Short circuit, Overload , Overcharge and overdischarge protection
ALARM
Battery mode	Sounding every 10 seconds
Low Battery	Sounding every second
Overload	Sounding every 0.5 second
Battery Replacement Alarm	Sounding every 2 seconds
Fault	Continuously sounding
MANAGEMENT
Communication port	USB or RS232(Supports Windows 2000/2003/XP/Vista/2008, Windows 7, Linux, Unix, and MAC)
OPERATING ENVIRONMENT
Humidity	0-90 % RH @ 0- 40°C (non-condensing)
Noise Level	Less than 45dB
PHYSICAL
Dimensions WxDxH (mm)	289101142		314130175
Weight (Kgs)	4.3	4.9	7.2	7.8
STANDARDS
Safety	I EC/EN62040-1, IE C/EN60950-1
EMC	I EC/EN62040-2, I EC61000-4-2,1EC61000-4-3,IEC61000-4-4,1EC61000-4-5,IEC61000-4-6, I EC61000-4-8
