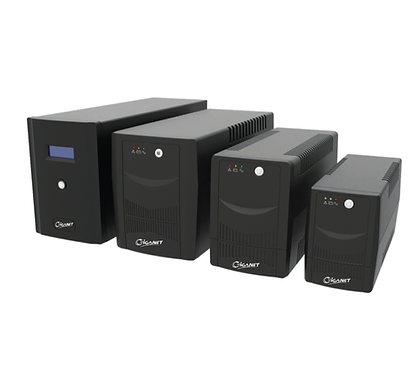

Giganet GN-UPS-LI-2400VA Line Interactive 2400VA UPS

Capacity VA/Watts: 2400 / 1440
Voltage: 220/230/240Vac
Voltage range: 140~300Vac
Frequency Range 50/60Hz (auto sensing)
AC Voltage Regulation(Batt. Mode): ±10%
Frequency Range (Batt. Mode): 50/60Hz ±1 Hz
Transfer Time Typical: 4-8ms, 13ms Max.
Waveform (Batt. Mode): Simulated Sinewave
Dimensions WxDxH (mm): 436*145*212
Weight (Kgs): 20

Visit our store and enjoy:

Genuine, brand new, sealed stock
Price-match against authorized dealers
Installation & configuration services available
Expert advice on compatibility with your network

SKU: HB42857 Categories: Giganet Store Kenya, Giganet UPS Brand: Giganet

Description
Reviews (0)

Giganet GN-UPS-LI-2400VA Line Interactive 2400VA UPS

The GIGANET GN‑UPS‑LI‑2400VA is a reliable, mid‑capacity line‑interactive UPS designed to provide stable, conditioned power and backup protection for small to medium offices, home offices, and network/server closets. With a 2400 VA capacity, this UPS is well‑suited to power desktops, workstations, networking equipment, small servers, modems/routers, and other critical electronics — ensuring they remain safe and operational during power disturbances or outages.

Features

Line Interactive UPS with simulated sinewave output

Excellent microprocessor control guarantees high reliability(Internal self-diagnostic technology)

Boost and buck AVR for voltage stabilization (wide input range with two boost and one buck control)

Auto restart while AC is recovering

Cold start function

Off-mode charging

Fast intelligent battery recharge function

Generator compatible

Offering LED and LCD panels for selections

Easy installation and operation with compact size

Ideally applicable for PC, Workstations, TVs, POS devices etc.

Optional USB/RS232 communication port and RJ11/RJ45 protection

Specifications

Model	GN-UPS-LI-1500VA	GN-UPS-LI-2000VA	GN-UPS-LI-2400VA	GN-UPS-LI-3000VA
Capacity VA/Watts	1500 / 900	2000 / 1200	2400 / 1440	3000 / 1800
INPUT
Voltage		220/230/240Vac
Voltage range		140~300Vac
Frequency Range		50/60Hz (auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)	±10%
Frequency Range (Batt. Mode)	50/60Hz ±1 Hz
Transfer Time	Typical 4-8ms, 13ms Max.
Waveform (Batt. Mode)	Simulated Sinewave
BATTERY
Battery Voltage	12Vdc		24Vdc
Battery Type & Number	12 V / 9Ah x 2	12 V / 9Ah x 2	12 V /7Ah x 4	12 V /9Ah x 4
Max charger current (A)	6~8 hours recover to 90% capacity
INDICATORS
LED Display (LED version)	AC Mode, Battery Mode, Overload, Fault
LCD Display (LCD version)	AC Mode, Battery Mode, Load Level, Battery Level, Input Voltage, Output Voltage, Overload, Fault, and Battery Low
PROTECTION
Full Protection	Short circuit, Overload , Overcharge and overdischarge protection
ALARM
Battery mode	Sounding every 10 seconds
Low Battery	Sounding every second
Overload	Sounding every 0.5 second
Battery Replacement Alarm	Sounding every 2 seconds
Fault	Continuously sounding
MANAGEMENT
Communication port	USB or RS232(Supports Windows 2000/2003/XP/Vista/2008, Windows 7, Linux, Unix, and MAC)
OPERATING ENVIRONMENT
Humidity	0-90 % RH @ 0- 40°C (non-condensing)
Noise Level	Less than 55dB
PHYSICAL
Dimensions WxDxH (mm)	380158198		436145212
Weight (Kgs)	10.1	10.5	20	23
STANDARDS
Safety	I EC/EN62040-1, IE C/EN60950-1
EMC	I EC/EN62040-2, I EC61000-4-2,1EC61000-4-3,IEC61000-4-4,1EC61000-4-5,IEC61000-4-6, I EC61000-4-8
