Giganet GN-UPS-MSLI-2KVA ML Series 2KVA UPS

Capacity VA/Watts: 2000 / 1400</p>
Voltage: 220/230/240Vac
Voltage range: 162~290Vac
Frequency Range 50/60Hz (auto sensing)
AC Voltage Regulation(Batt. Mode): ±10%
Frequency Range (Batt. Mode): 50/60Hz ±1 Hz
Transfer Time Typical: 2-6ms, 10ms Max.
Waveform (Batt. Mode): Pure Sinewave
Dimensions WxDxH (mm): 380*158*198
Weight (Kgs): Approx 12.3

Visit our store and enjoy:

Genuine, brand new, sealed stock
Price-match against authorized dealers
Installation & configuration services available
Expert advice on compatibility with your network

SKU: HB42877 Categories: Giganet Store Kenya, Giganet UPS Brand: Giganet

Description
Reviews (0)

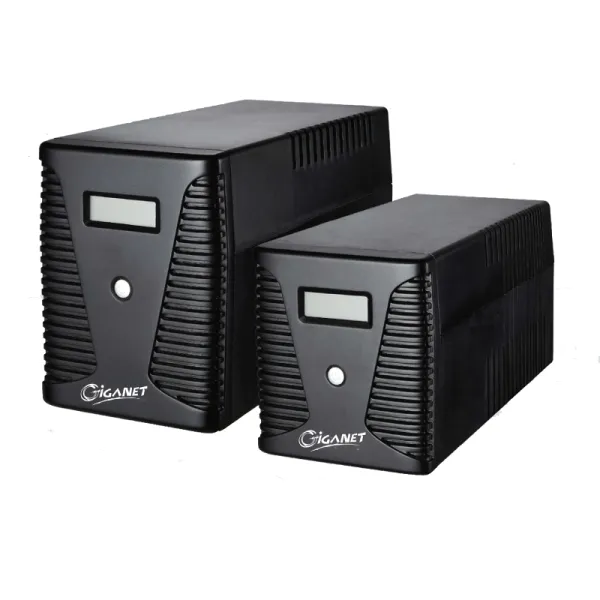

Giganet GN-UPS-MSLI-2KVA ML Series 2KVA UPS

The GIGANET GN-UPS-MSLI-2KVA is a versatile and reliable line-interactive UPS. It belongs to the GIGANET ML series. This unit provides clean, stable power and backup support. It serves small to medium-scale setups perfectly.

With a 2 kVA capacity, it delivers about 1200 W of power. The UPS protects desktops, workstations, and small servers. It also safeguards networking gear and other essential electronics. It performs especially well in environments with unstable or unreliable mains power.

Features

Line Interactive UPS with true sinewave output

Excellent microprocessor control guarantees high reliability(Internal self-diagnostic technology)

Boost and buck AVR for voltage stabilization (wide input range with two boost and one buck control)

Auto restart while AC is recovering

Cold start function

Off-mode charging

Fast intelligent battery recharge function

Generator compatible

Optional USB/RS232 communication port and RJ11/RJ45 protection

Specifications

Model	GN-UPS-MSLI-1KVA	GN-UPS-MSLI-1.5KVA	GN-UPS-MSLI-2KVA
Capacity VA/Watts	1000 / 700	1500 / 1050	2000 / 1400
INPUT
Voltage		220/230/240Vac
Voltage range		162~290Vac
Frequency Range		50/60Hz (auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)	±10%
Frequency Range (Batt. Mode)	50/60Hz ±1 Hz
Transfer Time	Typical 2-6ms, 10ms Max.
Waveform (Batt. Mode)	Pure Sinewave
BATTERY
Battery Voltage	24Vdc
Battery Type & Number	12 V / 7Ah x 2	12 V / 9Ah x 2	12 V /9Ah x 2
Max charger current (A)	6~8 hours recover to 90% capacity
INDICATORS
LED Display (LED version)	AC Mode, Battery Mode, Overload, Fault
LCD Display (LCD version)	AC Mode, Battery Mode, Load Level, Battery Level, Input Voltage, Output Voltage, Overload, Fault, and Battery Low
PROTECTION
Full Protection	Short circuit, Overload , Overcharge and overdischarge protection
ALARM
Battery mode	Sounding every 10 seconds
Low Battery	Sounding every second
Overload	Sounding every 0.5 second
Battery Replacement Alarm	Sounding every 2 seconds
Fault	Continuously sounding
MANAGEMENT
Communication port	USB or RS232(Supports Windows 2000/2003/XP/Vista/2008, Windows 7, Linux, Unix, and MAC)
OPERATING ENVIRONMENT
Humidity	0-90 % RH @ 0- 40°C (non-condensing)
Noise Level	Less than 45dB	Less than 55dB
PHYSICAL
Dimensions WxDxH (mm)	353149162	380158198
Weight (Kgs)	Approx 8.6	Approx 11.5	Approx 12.3
STANDARDS
Safety	I EC/EN62040-1, IE C/EN60950-1
EMC	I EC/EN62040-2, I EC61000-4-2,1EC61000-4-3,IEC61000-4-4,1EC61000-4- 5,IEC61000-4-6, I EC61000-4-8
