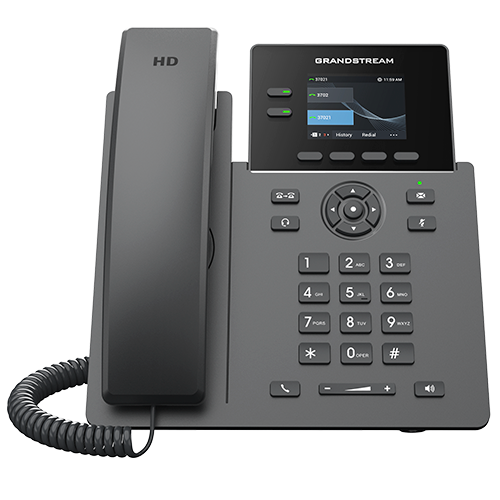

Grandstream GRP2610(P) 2-Line Essential IP Phone
The GRP2610(P) is a powerful 2-line carrier-grade IP phone designed with zero-touch provisioning for mass deployment and easy management and is supported by Grandstream’s Device Management System (GDMS).
Built for durability and ease of management, it supports zero-touch provisioning, secure firmware updates, and centralized device management. Its compact form, color display, and enterprise features make it suitable for offices, call centers, branch sites, or multi-tenant installations.
Grandstream GRP2610(P) Technical Specification
| Protocols/Standards | SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPV6 |
| Network Interfaces | Dual switched auto sensing 10/100 Mbps Ethernet ports (GRP2610)Dual switched auto sensing 10/100 Mbps Ethernet ports with integrated PoE
(GRP2610P) |
| Graphic Display | 2.4 inch (320Ă—240) TFT color LCD |
| Feature Keys | 2 line keys with up to 2 SIP accounts, 4 XML programmable context sensitive softkeys, navigation/menu keys, 8 dedicated function keys for: MESSAGE(with LED indicator), TRANSFER, HEADSET, MUTE, SEND/REDIAL, SPEAKERPHONE, VOL+, VOL- |
| Auxiliary Port | RJ9 headset jack (allowing EHS with Plantronics headsets) |
| Voice Codecs and Capabilities | Support for G7.29A/B, G.711µ/a-law, G.726, G.722(wide-band), G723, iLBC, OPUS, in-band and out-of-band DTMF(in audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC |
|
Telephony Features |
Hold, transfer, forward, 5-way conference, call park, call pickup, shared call- appearance(SCA)/bridged-line-appearance(BLA), downloadable phonebook(XML, LDAP, up to 1000 items), call waiting, call log(up to 1000 records), XML customization of screen, off-hook auto dial, auto answer, click to dial, flexible dial plan, hot desking, personalized music ringtones and music on hold, server redundancy and fail over |
HD Audio |
Yes, HD handset and speakerphone with support for wideband audio |
| Base Stand | Yes, 2 angle positions available, Wall Mountable (Wall Mount *sold separately) |
| QoS | Layer 2 QoS (802.1Q, 802.1P), and Layer 3 (ToS, DiffServ, MPLS) QoS |
| Security | User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, SRTP, TLS, 802.1x media access control, secure boot. |
| Multi-language | English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese,Korean, Japanese and more |
| Upgrade/Provisioning | Firmware upgrade via FTP/TFTP/TFTPS/HTTP/HTTPS, mass provisioning using GDMS/TR-069 or AES encrypted XML configuration file |
|
Power & Green Energy Efficiency |
Universal power adapter included:Input:100-240V ; Output: +5V, 0.6A ;
Integrated Power-over-Ethernet(802.3af) IEEE 802.3az Energy-Efficient Ethernet Max power consumption 3W (power adapter, GRP2610) or 3.8W (PoE, GRP2610P) |
| Temperature and Humidity | Operation: 0°C to 40°C Storage: -10°C to 60°CHumidity: 10% to 90% Non-condensing |
| Package Content | GRP2610 phone, handset with cord, phone stand, 5V power adapter (with GRP2610 only), network cable, Quick Installation Guide |
| Physical | Dimension: 203mm x 186mm x 28mm ; Unit weight: 0.4kg ; Package weight: 0.9kg |
| Compliance | FCC: Part 15 Class B; FCC Part 68 HAC.CE: EN 55032; EN 55035; EN IEC 61000-3-2; EN 61000-3-3; EN IEC 62368-1. RCM: AS/ NZS CISPR 32; AS/NZS 62368.1; AS/CA S004/S040.
IC: ICES-003; CS-03, Part V. |
