-3%

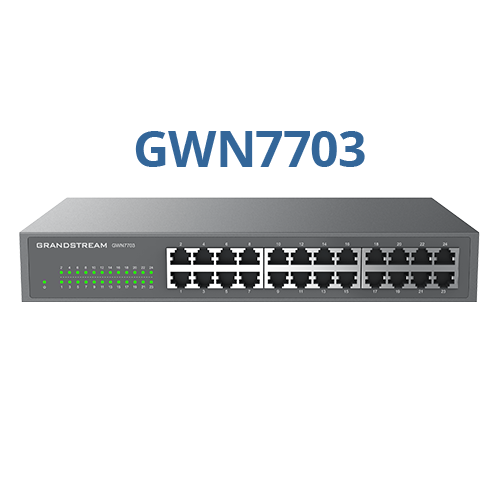

Grandstream GWN7703 24-Port Unmanaged Network Switch

Original price was: KSh 19,000.00.Current price is: KSh 18,500.00. excl. VAT

24× gigabit ports
Green tech reduces power use.
LED Indicators for Link, Activity, Speed, and Power.
Auto MDI/MDIX for all ports.
Storm Control (fixed to 100Mbps) for traffic monitoring.
QoS: Supports Default Strict Priority (when present).

SKU: HB41964 Categories: Grandstream Store Kenya, Grandstream Switches Brand: Grandstream

Description
Reviews (0)

Grandstream GWN7703 24-Port Unmanaged Network Switch

The Grandstream GWN7703 is a high-port-count, unmanaged Gigabit Ethernet switch ideal for small to medium size networks, branch offices, or any environment that needs many wired connections without complexity.

With 24 Gigabit RJ45 ports, robust metal housing, and plug-and-play simplicity, it delivers reliable wired infrastructure with minimal setup. It’s designed for use in desktop or rack-mount layout, accommodates full Gigabit speeds on all ports, supports auto networking features like MDI/MDIX, and includes energy-saving (“green”) technologies to reduce power usage when traffic is light.

Grandstream GWN7703 Technical Specification

	GWN7702	GWN7702P	GWN7703
Gigabit Ports	16	16	24
PoE Ports	N/A	8	N/A
Enclosure	Metal
Mounting	Desktop/Rack-Mount
Network Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p
PoE Standards	/	IEEE 802.3af, IEEE 802.3at	/
Port Feature	16/24× 10/100/1000Mbps RJ45 Ports AUTO NegotiationAUTO MDI/MDIX
Network Media	1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex
PoE Configuration	/	• 1~8 Ports 802.3 af/at compliant• Up to 30 W on Each Port, Total 138W Power Budget;• Overload to cut off the lowest- s priority port. • Priority: Port 1 to Port 8	/
LED Indicators	Per port: Link/Activity Green Per device: Power Green	Per port: Link/Activity – Green Per port: PoE output – Yellow Per device: Power Green	Per port: Link/Activity Green Per device: Power Green
Mac Address Table	8K
Switching Capacity	32Gbps	32Gbps	48Gbps
Jumbo Frame	10KB
Advanced Features	Mac Address Auto-Learning And Auto-Aging IEEE 802.3x Flow ControlHalf duplex backpressure
Power Adapter	Internal 100-240V AC, 50/60Hz,18W	Internal 100-240V AC, 50/60Hz,150W	Internal 100-240V AC, 50/60Hz,18W
Max Power Consumptionby Base System	8W@220V/50Hz	10.1W@220V/50Hz(excluding PoE output power)	13W@220V/50Hz
Environmental	Operating Temperature: 0 to 40 °C (32 to 104 °F)Storage Temperature: -20 to 60 °C (-4 to 140 °F)Operating Humidity: 10% to 90% Non-condensing Storage Humidity: 10% to 90% Non-condensing
Dimensions (L x W x H)	Unit: 280 x 180 x 44mm;Package: 366 x 211 x 53mm
Weight	Unit: 1.23KGEntire Package: 1.83KG	Unit: 1.58KGEntire Package: 2.18KG	Unit: 1.35KGEntire Package: 1.95KG
Package	1x Switch, 1x 1.2m AC Cable, Rack-mounting Standard Brackets, 4x Rubber Feet, 1x QIG
Compliance	FCC, CE, RCM, IC, UKCA
