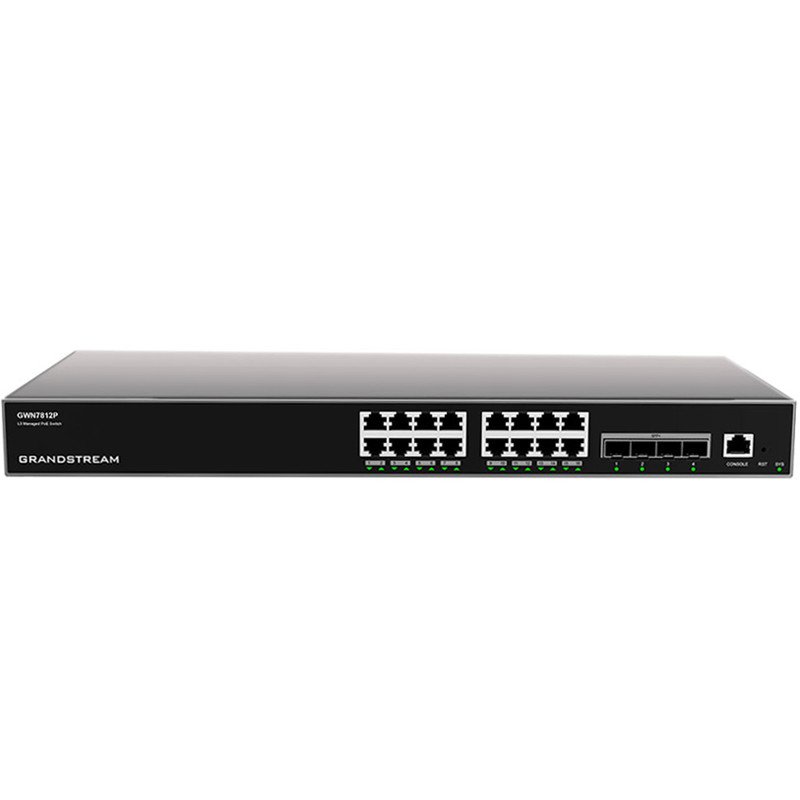

Grandstream GWN7812P 16-port Managed Network Switch

Original price was: KSh 36,000.00.Current price is: KSh 35,000.00. excl. VAT

16 Gigabit Ethernet ports and 4 10Gigabit SFP+ ports
Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models
Supports deployment in IPv6 and IPv4 networks
ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
Embedded controller to manage switch; GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform
Built-in QoS allows for prioritization of network traffic

SKU: HB41920 Categories: Grandstream Store Kenya, Grandstream Switches Brand: Grandstream

Description
Reviews (0)

Grandstream GWN7812P 16-port Managed Network Switch

The Grandstream GWN7810 series offers Layer 3 managed switches for medium-to-large enterprises. Build scalable, secure, and high-performance networks with advanced VLAN, QoS, and security features. PoE models provide dynamic power to devices. Manage via web, CLI, GWN.Cloud, or GWN Manager. Ideal value-driven solution for medium-to-large businesses.

Grandstream GWN7812P Technical Specification

	GWN7811	GWN7811P	GWN7812P	GWN7813	GWN7813P
Network Protocols	IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1x
Memory	256MB RAM128MB Nand Flash, 8MB Nor Flash
Jumbo Frame(Bytes)	12288
PoE Standards	/	IEEE 802.3af/at	IEEE 802.3af/at	/	IEEE 802.3af/at/bt
Gigabit Ethernet Ports	8		16	24
10Gigabit SFP+ Ports	2		4
	Note: Supports DAC cable, and must be ≤ 5m
Maximum no. of SupportedModules	SM-10G: 2MM-10G: 2RJ45-10G: 2		SM-10G: 4MM-10G: 4RJ45-10G: 2
Console	1
# of PoE Ports	/	8	16	/	24
Link Aggregation	32
External Redundant PowerSupply( RPS)	/	/	/	12V/5A(60W)	54V(300W)
Max Output Power per PoE Port	/	30W	30W	/	60W(1-8,PoE++)30W(9-24)
Max Total PoE Output Power	/	120W	240W	/	370W
PoE Standards	/	IEEE 802.3af/at	IEEE 802.3af/at	/	IEEE 802.3af/at/bt
Surge Protection	± 6KV CM and DM for power± 4KV CM for network ports
ESD	± 12KV for contact discharge
Auxiliary Ports	1x Reset Pinhole
Forwarding Mode	Store-and-forward
Total non-blocking throughput	28Gbps		56Gbps	64Gbps
Switching Capability	56Gbps		112Gbps	128Gbps
Forwarding Rate	41.644Mpps		83.328Mpps	95.232Mpps
Packet Buffer	12MB
Network Latency	<4µs
Stacking	Yes, Up to 4 devices
Switching	• 16K MAC addresses, including static, dynamic, filtering and sticky MAC address• 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, MAC-based VLAN, protocol-base VLAN, QinQ• Private VLAN • Voice VLAN including auto voice VLAN, tagged OUI and untagged OUI • 16 VLAN virtual interface with 9216 MTU • GVRP (pending) • Spanning tree, 16 instances for STP/RTSP/MSTP/PVST(+)/RPVST(+) • 1K ARP/NDP
Routing	• 512 (IPv4)/128 (IPv6) routes• 32 (IPv4)/32 (IPv6) static routing• Dynamic routing, including RIP, RIPng, OSPF, OSPFv3 and BGP • Routing Policy
Multicast	• IGMP Snooping with IGMPv2 and IGMPv3, 256 IGMP Snooping groups• MLD Snooping with MLDv1 and MLDv2, 256 MLD Snooping groups• MVR
QoS/ACL	• Port priority• Priority mapping• Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ • Traffic shaping • Rate limit • 2K ACL for Ethernet, IPv4 and IPv6
DHCP	DHCP server, DHCP relay, DHCP Option 82, 60, 160 and 43
Maintenance	• Fan and PWR/RPS monitoring• CPU and memory monitoring• SNMP inckuding SNMPv1, SNMPv2c, SNMPv3 • RMON • LLDP&LLDP-MED • Backup & Restore • Syslog • Diagnostics including Ping, Traceroute, Mirroring including SPAN and RSPAN, UDLD (TBD) and copper test • Upgrade via FTPS / TFTP / HTTP / HTTPS or local upload, mass provisioning using DHCP Option / TR-069 (pending) / GDMS Networking / GWN Manager / GWN Series Routers
Security	• User hierarchical management and password protection, HTTPS, SSH, Telnet• 802.1X authentication• MAC authentication • AAA authentication including RADIUS, TACACS+ • Storm control • Port isolation, port security, sticky MAC • Filtering MAC address • IP/IPv6 source guard, DoS attack prevention, ARP inspection • DHCP/DHCPv6 Snooping • Loop protection including BPDU protection, root protection and loopback protection • Kensington Security Slot (Kensington Lock) support
Mounting	Desktop, Wall-Mount, or Rack-Mount(rack-mounting kits included)
System LEDs	1x tri-color LED for device tracking and status indication
Power Supply LEDs	/	/	/	2x bi-color LEDs for per power supply PWR&RPS
Data Transferring LEDs	10x green-color LEDs		20x green-color LEDs	28x green-color LEDs
PoE Powered LEDs	/	8x yellow-color LEDs	16x yellow-color LEDs	/	24x yellow-color LEDs
Fan	/	/	2	/	3
Environmental	Operation: 0°C to 45°C, humidity 10-90% RH(Non-condensing) Storage: -10°C to 60°C, humidity: 5% to 95% RH(Non-condensing)
Dimensions	330mm(L)x176mm(W)x44mm(H)		440mm(L)x200mm(W)x44mm(H)		440mm(L)x300mm(W)x44mm(H)
Unit Weight	1.45Kg	2.17Kg	3.03Kg	2.94Kg	4.69Kg
Package Content	1x Switch
	1x 1.2m(10A) AC Cable
	1x 25cm Ground Cable
	4x Rubber Footpads
	1x Power Cord Anti-Trip
	8x Screws (KM 3*6)
	1x Quick Installation Guide
	1x Console Cable(Optional)
	2x Extended Rack-Mounting Kits		2x Rack-Mounting Kits
	/			1x RPS, External Redundant Power Supply (Optional)
Compliance	FCC, CE, RCM, IC, UKCA
