Grandstream GWN7816P 48-Port POE Managed Switch

Original price was: KSh 252,000.00.Current price is: KSh 250,000.00. excl. VAT

48 Gigabit Ethernet ports and 6 10Gigabit SFP+ ports
Smart power control to support dynamic PoE/PoE+, PoE++ (GWN7816P) power allocation per port for the PoE models
Supports deployment in IPv6 and IPv4 networks
Reliability features including fault detection, device protection, dual boot, dual system file redundancy, link aggregation, storm control, and more
ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
Embedded controller to manage switch, GDMS Networking and GWN Manager, Grandstream’s cloud and on-premise network management platform, GWN Series Router, CLI management
Built-in QoS allows for prioritization of network traffic
Supports stacking for easy management on one interface while creating redundant backup between multiple devices

SKU: HB41932 Categories: Grandstream Store Kenya, Grandstream Switches Brand: Grandstream

Description
Reviews (0)

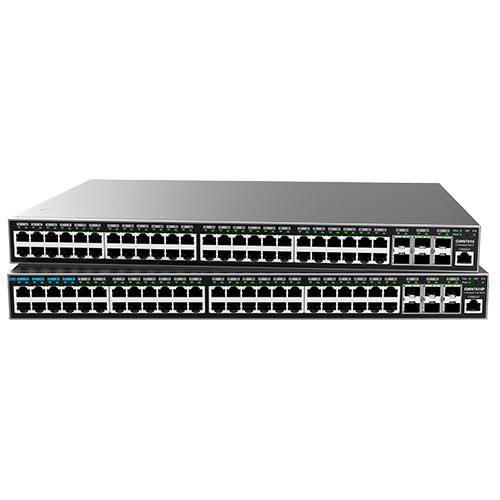

Grandstream GWN7816P 48-Port POE Managed Switch

The GWN7816(P) are 48-port Layer 3 managed network switches that allow medium-to-large enterprises to build scalable, secure, high performance and smart business networks that are fully manageable. It supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP/MLD Snooping for network performance optimization, and comprehensive security capabilities against potential attacks.

The GWN7816P provides smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. The GWN7816(P) can be managed in several ways, including the local Web user interface of the switch, and CLI, the command-line interface. It is also supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform.

With an advanced set of features, comprehensive security protection, and flexible management options, the GWN7816(P) is ideal for enterprise and medium-to-large businesses who require high-performance networks with maximum capacity and control.

Grandstream GWN7816P Technical Specification

	GWN7816	GWN7816P
Network Protocols	IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x
PoE Standards	/	IEEE 802.3af/at/bt
Gigabit Ports	48
10Gigabit SFP+ Ports	6
	Note: Support DAC cable, and must be ≤ 5m
Maximum Amount of Supported Modules	SM-10G: 6MM-10G: 6 RJ45-10G: 3
	Note: RJ45-10G modules must be interval inserted
Console	1
# of PoE Ports	/	48
PSUs	1 PSU of 70W by default, support 1 Hot swap PSU(Purchased Separately)	1 PSU of 920W by default, support 1 Hot swap PSU(Purchased Separately)
Maximum Output Power Per PoE Port	/	60W(1-8,PoE++)30W(9-48)
Max Total PoE Output Power	/	740W with 1 PSU
PoE Standards	/	IEEE 802.3af/at/bt
Surge Protection	± 4KV CM and ± 2KV DM for power± 4KV CM for network ports
ESD	± 12KV for contact discharge
Auxiliary Ports	1x Reset Pinhole
Forwarding Mode	Store-and-forward
Total non-blocking throughput	108Gbps
Switching Capability	216Gbps
Forwarding Rate	160.704Mpps
Packet Buffer	16Mb
Network Latency	<4µs
Switching	• 32K MAC addresses, including static, dynamic, filtering and sticky MAC address• 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, MAC-based VLAN, protocol-based VLAN, QinQ • Private VLAN • Voice VLAN including auto voice VLAN, tagged OUI and untagged OUI • 32 VLAN virtual interface with 9216 MTU • 2K ARP/NDP • GVRP(pending) • 32 link aggregation • Spanning tree, 64 instances for STP/RTSP/MSTP/PVST(+)/RPVST(+) • ERPS (pending)
Routing	• 12K(IPv4)/4K(IPv6) routes• 32(IPv4)/32(IPv6) static routing • Policy routing (pending) • Dynamic routing, including RIP, RIPng, OSPF, OSPFv3 and BGP • Routing Policy • VRRP(pending)
Multicast	• IGMP Snooping with IGMPv2 and IGMPv3, 256 IGMP Snooping groups• MLD Snooping with MLDv1 and MLDv2, 256 MLD Snooping groups • MVR
QoS/ACL	• Port priority• Priority mapping • Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ • Traffic shaping • Rate limit • 4K ACL for Ethernet, IPv4 and IPv6
DHCP	DHCP server, DHCP relay, DHCP Option 82, 60, 160 and 43
Maintenance	• CPU and memory monitoring• Fault detection and alarm for power supply and fan • SNMP including SNMPv1, SNMPv2c, SNMPv3 • RMON • LLDP&LLDP-MED • Backup and restore • Syslog • Diagnostics including Ping, Traceroute, Mirroring including SPAN and RSPAN, UDLD(pending) and copper test • Upgrade via FTPS / TFTP / HTTP / HTTPS or local upload, mass provisioning using DHCP Option / TR-069(pending) / GDMS Networking / GWN Manager / GWN router
Security	• User hierarchical management and password protection, HTTPS, SSH, Telnet• Identity authentication including 802.1X authentication and MAC authentication • AAA authentication including RADIUS, TACACS+ • Storm control • Port isolation, port security, sticky MAC • Filtering MAC address • IP/IPv6 source guard, DoS attack prevention, ARP inspection • DHCP/DHCPv6 Snooping • Loop protection including BPDU protection, root protection and loopback protection • Kensington Security Slot (Kensington Lock) support
Mounting	Desktop, or Rack-Mount(rack-mounting kits included)	Desktop, or Rail-Mount(rack-mounting kits included)
LEDs	1x tri-color LED for device tracking and status indication 2x bi-color LEDs for per power supply PSU1/254x green-color LEDs for data transferring 48x yellow-color LEDs for PoE powered (GWN7816P)
Fan	4
Environmental	Operation: 0°C to 45°C, humidity 10-90% RH(Non-condensing) Storage: -10°C to 60°C, humidity: 10% to 90% RH(Non-condensing)
Dimensions	440mm(L)x300mm(W)x44mm(H)	440mm(L)x380mm(W)x44mm(H)
Unit Weight	4.7Kg	6Kg
Package Content	1x Switch
	1x 1.2m AC Cable
	1x 25cm Ground Cable
	4x Rubber Footpads
	/	1x Power Cord Anti-Trip
	2x Front Rack-Mounting Kits
	/	2x Rear Rack-Mounting Kits
	/	2x Rear Slideways
	8x Screws(KM 3*6)	16x Screws(KM 3*6)
	1x Simplified Quick Installation Guide
	1x Regulatory Paper
Hot-Swappable PSU	Available for Separate Purchase
Compliance	FCC, CE, RCM, IC, UKCA
