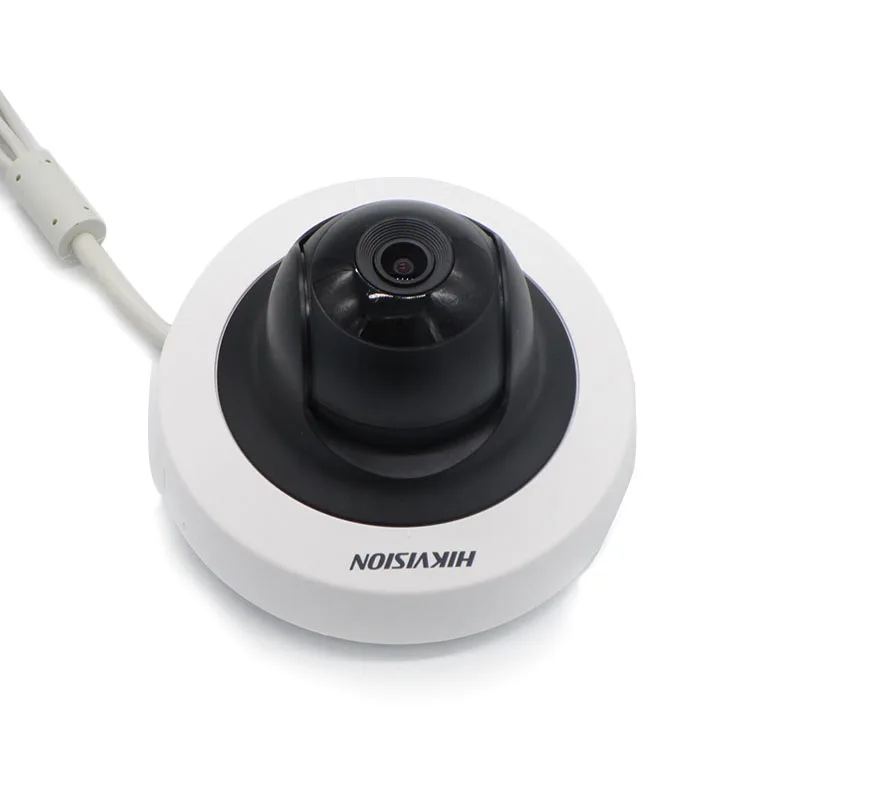

Hikvision DS-2CD2F42FWD-IWS Technical Specification

Camera

• Image Sensor: 1/3″ Progressive Scan CMOS
• Min. Illumination: 0.01Lux @ F1.2, AGC ON , 0.028Lux @ F2.0, AGC ON, 0 Lux with IR
• Shutter time: 1/3 s to 1/100,000 s
• Lens: 2.8mm, 4mm, 6mm @ F2.0 angle of view: 106°(2.8mm), 83°(4mm), 55.4°(6mm)
• Lens Mount: M12
• Adjustment Range: Pan: -90° ~ 90°, Tilt: 0° ~ 75°
• Day& Night: IR cut filter with auto switch
• Wide Dynamic Range: 120 dB
• Digital noise reduction: 3D DNR

Compression Standard

• Video Compression: H.264/MJPEG/H.264+
• H.264 code profile: Main Profile
• Video bit rate: 32Kbps~16Mbps
• Dual Stream


• Max. Image Resolution:2688 × 1520
  Frame Rate:50Hz: 20fps (2688 x 1520), 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720)60Hz: 20fps (2688 x 1520), 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720)
• Sub Stream:50Hz: Sub stream:25fps(352×288),25fps(640×360) 60Hz: Sub stream: 30fps(352×240),30fps(640×360)
• Image Settings: Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
• BLC: Yes, zone configurable
• ROI: Support

Network

• Network Storage: NAS (Support NFS,SMB/CIFS), ANR
• Alarm Trigger: Face Detection,Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception
• Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
• General Function: One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering
• System Compatibility:ONVIF (Profile S, Profile G),ISAPI

Interface

• Audio:1-ch 3.5 mm audio in (Mic in/Line in)/out interface (-S model)
• Communication Interface: 1 RJ45 10M / 100M Ethernet interface
• Alarm: 1x alarm I/O *only for –S models
• On-board storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
• Reset Button: Yes

Wi-Fi Specification (-W)

• Wireless Standards:IEEE802.11b, 802.11g, 802.11n
• Frequency Range: 2.4 GHz ~ 2.4835 GHz
• Channel Bandwidth: 20/40MHz Support
• Modulation Mode: 802.11b: CCK, QPSK, BPS, 802.11g/n: OFDM
• Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
• Transmission Rate: 11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps
• Wireless Range: 50m(depend on environment)

General

• Operating Conditions: -10 °C ~ 40 °C (14 °F ~ 104 °F) , Humidity 90% or less (non-condensing)
• Power Supply: 12 VDC ± 25%, PoE (802.3af Class3)
  Power Consumption: Max. 5W (Max. 7 W with IR cut filter on, max. 9W with pan & tilt rotation)
• IR Range: 10 meters
• Dimensions: Φ119.93 × 87.08mm
• Weight: 500g (1.1lbs)
•
