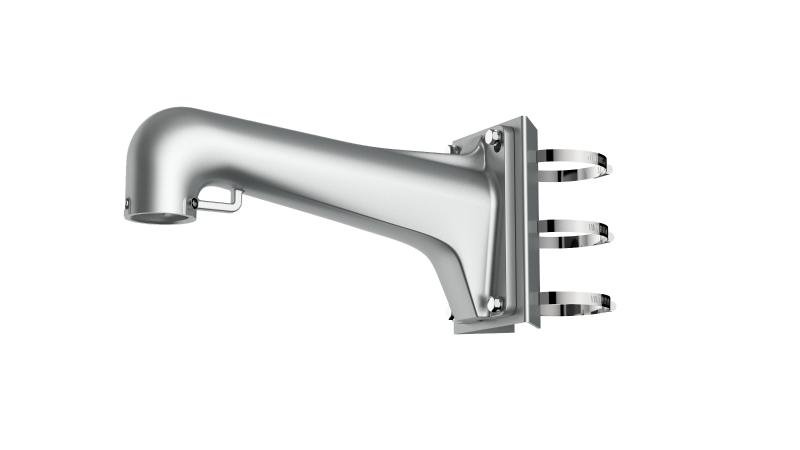

Hikvision DS-1603ZJ-POLE-P Vertical pole mounting bracket

The Hikvision DS-1603ZJ-POLE-P is a vertical pole mounting bracket designed for securely installing Hikvision junction boxes (such as the DS-1603ZJ-BOX) on poles in outdoor surveillance setups. This bracket ensures stable mounting while protecting cables and connections from environmental factors.

Key Features:

• Material: Sturdy metal (typically steel or aluminum) with corrosion-resistant coating.

• Compatibility: Works with Hikvision DS-1603ZJ-BOX junction boxes (used for power distribution, surge protection, or network connections in CCTV systems).

• Mounting Type: Vertical pole attachment (adjustable for different pole diameters).

• Weatherproof: Designed for outdoor use, resistant to rain, dust, and UV exposure.

• Cable Management: Provides entry points for cables while maintaining a clean installation.

Installation Steps:

• Check Compatibility – Ensure the bracket fits your junction box model (DS-1603ZJ-BOX).

• Pole Preparation – Clean the mounting area and verify pole stability.

• Attach Bracket to Pole – Use the included clamps or screws to secure the bracket around the pole.

• Mount Junction Box – Fix the DS-1603ZJ-BOX onto the bracket using the provided screws.

• Route Cables – Pass cables through the designated openings and seal properly for weather resistance.

Specification

Note

• The wall must be capable of supporting at least 3 times as much as the total weight of the camera and the
• The mount’s maximum load capacity is 20 kg (44 ).
