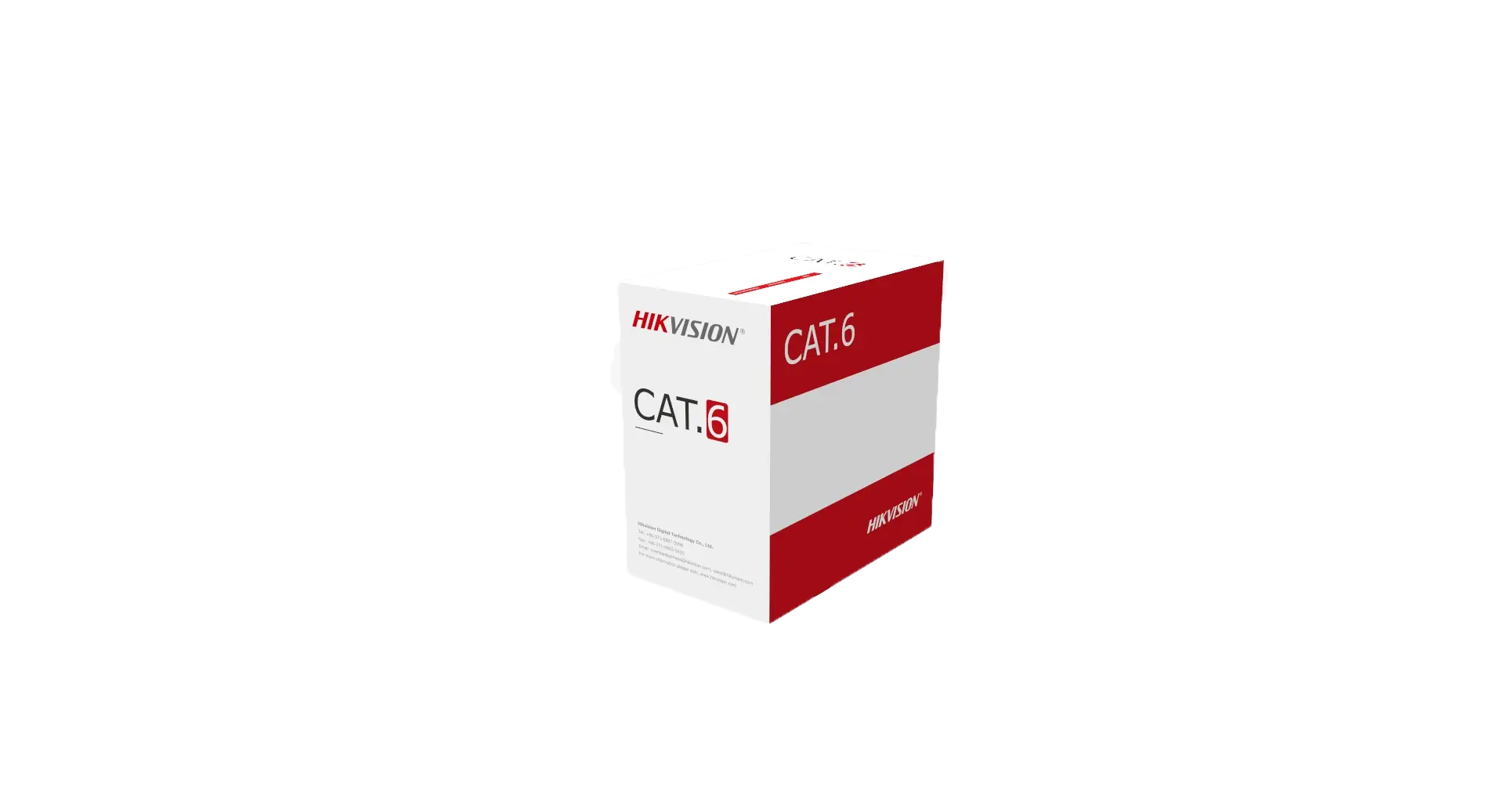

Hikvision DS-1LN6OUSPE CAT6 U/UTP Outdoor Network Cable

Original price was: KSh 24,000.00.Current price is: KSh 23,000.00. excl. VAT

Stable electrical performance, compliant with ANSI/TIA-568.2-D, IEC61156, ISO/IEC11801.
Compliant with RoHS 2.0.
Sheath with strong mechanical properties, and high tensile and compressive strength, reducing damage during the project.
Excellent performance in the Fluke 90-meter permanent link test while working continuously at 50°C high temperature.
Excellent performance in the Fluke 100-meter channel test while being continuously loaded with 57 V/1 A DC power (PoE).
Solid-Bare Copper conductor with less resistance, and better electrical properties and transmission performance.

SKU: HB40915 Categories: CAT 6 Outdoor Cable, Hikvision Store Kenya Brand: Hikvision

Hikvision DS-1LN6OUSPE CAT6 U/UTP Outdoor Network Cable (Solid Copper, 0.55mm) black 305m

The Hikvision DS-1LN6OUSPE is an outdoor-rated CAT6 U/UTP Ethernet cable designed for reliable network connectivity in harsh environments.

Category: CAT6 (Supports up to 1 Gbps at 100m, or 10 Gbps at shorter distances)
Cable Type: U/UTP (Unshielded Twisted Pair) – No overall shielding, but individual twisted pairs reduce interference.
Outdoor Rated: Designed to withstand UV exposure, moisture, and extreme temperatures (typically -20°C to +60°C).
Conductor: Solid copper (better performance and durability than CCA – Copper-Clad Aluminum).
Jacket Material: PE (Polyethylene) – Resistant to water, sunlight, and abrasion.
SPE (Surge Protection): Likely includes lightning/surge protection for outdoor installations.
Use Case: Ideal for IP cameras (like Hikvision models), outdoor networking, and PoE (Power over Ethernet) applications.

Model	DS-1LN6OUSPE
Category	Cat.6
Reference standard	ISO/IEC11801, ANSI/TIA-568.2-D, RoHS 2.0
Fire resistance	No
Conductor	Material	Solid-Bare Copper (99.95%)
Conductor	Diameter	0.552±0.005 mm 23AWG
Insulation	Material	HDPE
Insulation	Diameter	0.98 ±0.05mm
Sheath	Thickness	0.50 ± 0.10 mm
	Diameter	5.90 ± 0.30 mm
	Material	PE
	Color	Black
Rip-cord	Yes
Separator	Yes
Sheath physical properties	Before aging	Tensile strength ≥ 9.7 Mpa Elongation ≥ 350%
	Aging period	100°C × 24h × 2d
	After aging	Tensile strength ≥ 75% of before aging Elongation ≥ 75% of before aging
	Cold bend	-20 ± 2°C × 4h, 8 × cable O.D, no visible cracks
Electrical Characteristics (20°C)	1.0-250.0 MHz impedance	100 ± 15 Ω
	1.0-250.0 MHz delay skew	≤ 45 ns/100 m
	DC resistance	≤ 9.38 Ω/100 m
	DC conductor resistance unbalance	≤ 2.0% within pair ≤ 5.0% between pairs
	Package dimension	430mm (W) × 430mm(H) × 235mm(D)
	Weight	10 ± 1kg
	Cable length	(305 ± 1.5) m
	Ambient temperature	-20°C to 75°C
	Operating voltage	57 V
