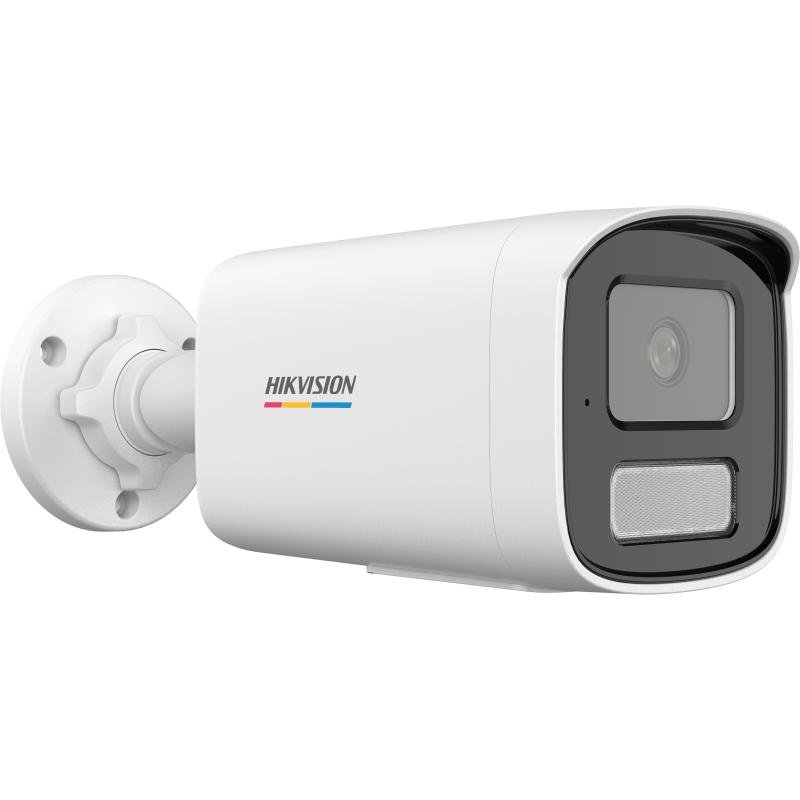

Hikvision DS-2CD1T47G2H-LIUF 4 MP ColorVu Bullet Camera
Original price was: KSh 14,000.00.KSh 13,000.00Current price is: KSh 13,000.00. excl. VAT
- High quality imaging with 4 MP resolution
- Support Human and Vehicle Detection
- Smart Hybrid Light: advanced technology with long range
- Efficient H.265+ compression technology
- Support on-board storage up to 512 GB (SD card slot) (Optional)
- Built-in microphone for real-time audio security
- Water and dust resistant (IP67)
Hikvision DS-2CD1T47G2H-LIUF(4MM) 4 MP ColorVu Fixed Bullet Network Camera
The Hikvision DS-2CD1T47G2H-LIUF (4MM) is a 4MP ColorVu Fixed Bullet Network Camera designed for high-quality, full-color surveillance in low-light conditions.
Specification
| Camera | |
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Max. Resolution | 2560 Ă— 1440 |
| Min. Illumination | Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 180°, rotate: 0° to 355° |
Lens |
|
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 115°, vertical FOV 60°, diagonal FOV 143°
4 mm, horizontal FOV 94°, vertical FOV 50°, diagonal FOV 110° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.0 |
| DORI | |
| DORI | 2.8 mm, D: 64 m, O: 25 m, R: 12 m, I: 6 m
4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m |
Illuminator |
|
| Supplement Light Type | IR, White Light |
| Supplement Light Range | Up to 50 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
Video |
|
| Â
  Main Stream |
50 Hz:
20 fps (2560 Ă— 1440) 25 fps (1920 Ă— 1080, 1280 Ă— 720) 60 Hz: 20 fps (2560 Ă— 1440) 24 fps (1920 Ă— 1080, 1280 Ă— 720) |
| Sub-Stream | 50 Hz: 25 fps (1280 Ă— 720, 640 Ă— 480, 640 Ă— 360)
60 Hz: 24 fps (1280 Ă— 720, 640 Ă— 480, 640 Ă— 360) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Audio | |
| Audio Type | Mono sound |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64
Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Environment Noise Filtering | Yes |
Network |
|
| Protocols | IPv4, IPv6, TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, UDP, QoS,
FTP, SMTP, UPnP |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),
ISAPI, SDK |
| User/Host | Up to 32 users
3 user levels: administrator, operator, and user |
| Â
Security |
Password protection, complicated password, watermark, basic and digest
authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Plug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
Image |
|
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance,
adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 4 programmable polygon privacy masks |
Interface |
|
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | -F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512
GB |
| Built-in Microphone | Yes, 1 built-in microphone |
| Reset Key | -F: Yes |
| Event | |
| Basic Event | Motion detection (support alarm triggering by specified target types (human and
vehicle)), video tampering alarm, exception |
| Â
Linkage |
Upload to memory card (-F model supports), trigger recording(-F model supports), upload to FTP, notify surveillance center, send email, trigger capture, notify
surveillance center, send email, trigger capture |
General |
|
| Â
Power |
12 VDC ± 25%, 0.57 A, max. 6.8 W, Ă˜5.5 mm coaxial power plug, reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 8.3 W |
| Material | Front cover: metal, body: plastic, bracket: plastic |
| Dimension | 81 mm Ă— 83.7 mm Ă— 201.96 mm (3.17″ Ă— 3.29″ Ă— 7.95″) |
| Package Dimension | 150 mm Ă— 150 mm Ă— 141 mm (5.91″ Ă— 5.91″ Ă— 5.55″) |
| Weight | Approx. 550 g (1.2 lb.) |
| With Package Weight | Approx. 800 g (1.8 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating
Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | English, Ukrainian |
| General Function | Heartbeat, anti-banding, mirror, password protection, password reset via email |
Approval |
|
| Â
EMC |
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7 |
| Â
Safety |
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 |
| Â
Environment |
CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013 |
