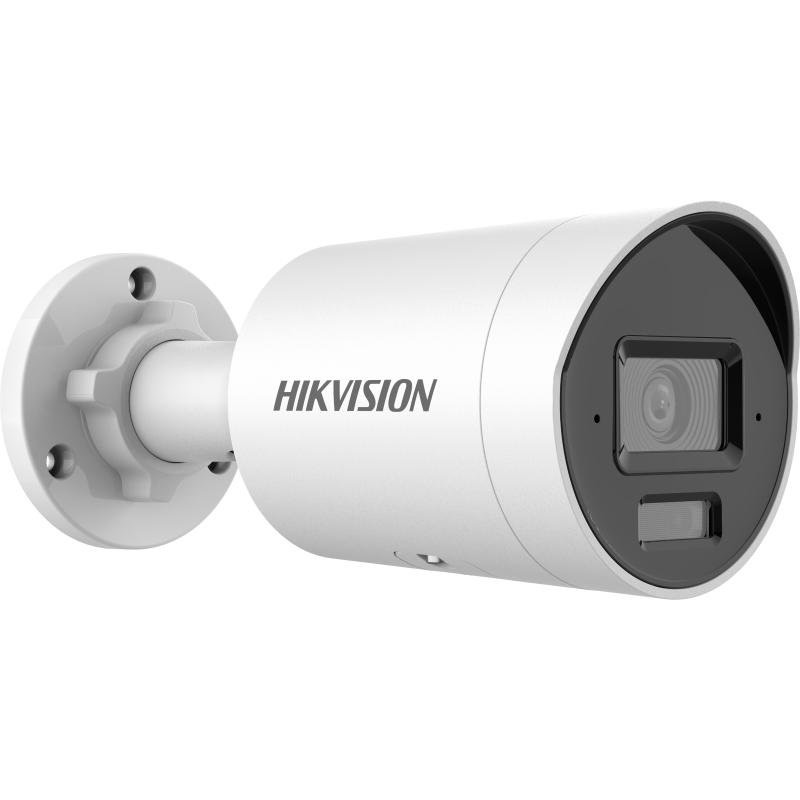

Hikvision DS-2CD3043G2-LIU(4mm) 4 MP Acusense Smart Hybrid Light Fixed Bullet Network Camera
The Hikvision DS-2CD3043G2-LIU is a 4MP (2K) bullet camera designed for outdoor surveillance, featuring IR night vision, DarkFighter 2.0 for low-light performance, and H.265+ compression.
Specification |
|
Camera | |
Image Sensor | 1/2.9″ Progressive Scan CMOS |
Max. Resolution | 2688 × 1520 |
Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with light |
Shutter Time | 1/3 s to 1/100,000 s |
Day & Night | IR cut filter |
Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
Lens |
|
Lens Type | Fixed focal lens, 2.8, 4, and 6 mm optional |
Focal Length & FOV | 2.8 mm, horizontal FOV 101°, vertical FOV 57°, diagonal FOV 118° 4 mm, horizontal FOV 82°, vertical FOV 45°, diagonal FOV 96°6 mm, horizontal FOV 52°, vertical FOV 28°, diagonal FOV 61° |
Lens Mount | M12 |
Iris Type | Fixed |
Aperture | F1.6 |
Depth of Field | 2.8 mm: 1.3 m to ∞4 mm: 1.4 m to ∞
6 mm: 3.5 m to ∞ |
DORI | |
DORI | 2.8 mm, D: 61 m, O: 24 m, R: 12 m, I: 6 m4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m
6 mm, D: 128 m, O: 50 m, R: 25 m, I: 12 m |
Illuminator | |
Supplement Light Type | IR, White Light |
Supplement Light Range | Up to 40 m |
Smart Supplement Light | Yes |
IR Wavelength | 850 nm |
Video |
|
Main Stream | 50 Hz:25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
Sub-Stream |
50 Hz:25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
Third Stream |
50 Hz:10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings. |
Fourth Stream |
50 Hz:10 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) *Fourth stream is supported under certain settings. |
Video Compression |
Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264,
Fourth stream: H.265/H.264/MJPEG, *Third stream and fourth stream are supported under certa in settings. |
Video Bit Rate | 32 Kbps to 8 Mbps |
H.264 Type | Baseline Profile, Main Profile, High Profile |
H.265 Type | Main Profile |
Scalable Video Coding (SVC) | H.264 and H.265 encoding |
Bit Rate Control | CBR, VBR |
Region of Interest (ROI) | 5 fixed regions for main stream and sub-stream |
Target Cropping | Yes |
Audio |
|
Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps(MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/48 kHz |
Environment Noise Filtering | Yes |
Network |
|
Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP,WebSocket, WebSockets |
Simultaneous Live View | Up to 6 channels |
API | ONVIF (Profile S, Profile G), ISAPI, SDK, ISUP |
Security | Password protection, complicated password, HTTPS encryption, IP address filter,Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface |
User/Host | Up to 32 users3 user levels: administrator, operator, and user |
Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
Client | iVMS-4200, Hik-Connect, Hik-Central |
Web Browser | Plug-in required live view: IE 11,Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+,
Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+ |
Image |
|
Image Parameters Switch | Yes |
Day/Night Switch | Day, Night, Auto, Schedule |
Image Settings | Rotate mode |
Wide Dynamic Range (WDR) | 120 dB |
SNR | ≥ 52 dB |
Image Enhancement | BLC, HLC, 3D DNR |
Privacy Mask | 8 programmable polygon privacy masks |
Interface |
|
Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
Reset Key | Yes |
Audio | Built-in Microphone: Arrayed dual-microphone |
Event |
|
Basic Event | Motion detection (support alarm triggering by specified target types (human andvehicle)), video tampering alarm, exception |
Smart Event | Unattended baggage detection, object removal detection, loitering detection, peoplegathering detection, fast moving detection, parking detection, video quality diagnosis |
Linkage | Upload to FTP/NAS/memory card, notify surveillance center, send email, triggerrecording, trigger capture |
Deep Learning Function | |
Face Capture | Yes |
Perimeter Protection | Line crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types (human and vehicle) |
General |
|
Power | 12 VDC ± 25%, 0.6 A, max. 7.2 W, Ø5.5 mm coaxial power plug, reverse polarity protection,PoE: IEEE 802.3af, Class 3, max. 8 W |
Material | Metal |
Dimension | Ø74.4 mm × 176.3 mm (Ø2.93″ × 6.94″) |
Package Dimension | 234 mm × 120 mm × 117 mm (9.21″ × 4.72″ × 4.61″) |
Weight | Approx. 515 g (1.1 lb.) |
With Package Weight | Approx. 715 g (1.6 lb.) |
Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
Startup and OperatingConditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
Language |
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese,Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
General Function | Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding |
Approval |
|
EMC |
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015,IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015 |
Safety | CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1 |
Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006 |
Protection | IP67: IEC 60529-2013, IK10: IEC 62262:2002 |
